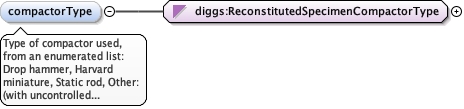

Element diggs:ReconstitutedSpecimenPreparationInfoType / diggs:compactorType
Namespace http://diggsml.org/schema-dev
Annotations

Type of compactor used, from an enumerated list: Drop
hammer, Harvard miniature, Static rod, Other: (with uncontrolled
string following colon).
Diagram
DiagramKernel_xsd_Simple_Type_diggs_ReconstitutedSpecimenCompactorType.tmp#ReconstitutedSpecimenCompactorType
Type diggs:ReconstitutedSpecimenCompactorType
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="compactorType" type="diggs:ReconstitutedSpecimenCompactorType">
  <annotation>
    <documentation>Type of compactor used, from an enumerated list: Drop hammer, Harvard miniature, Static rod, Other: (with uncontrolled string following colon).</documentation>
  </annotation>
</element>

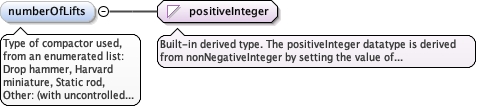

Element diggs:ReconstitutedSpecimenPreparationInfoType / diggs:numberOfLifts
Namespace http://diggsml.org/schema-dev
Annotations

Type of compactor used, from an enumerated list: Drop
hammer, Harvard miniature, Static rod, Other: (with uncontrolled
string following colon).
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="numberOfLifts" type="positiveInteger">
  <annotation>
    <documentation>Type of compactor used, from an enumerated list: Drop hammer, Harvard miniature, Static rod, Other: (with uncontrolled string following colon).</documentation>
  </annotation>
</element>

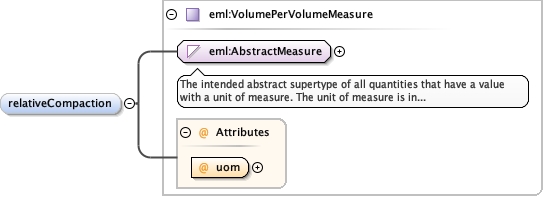

Element diggs:ReconstitutedSpecimenPreparationInfoType / diggs:relativeCompaction
Namespace http://diggsml.org/schema-dev
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure_uomMeasureType_xsd_Complex_Type_eml_VolumePerVolumeMeasure.tmp#VolumePerVolumeMeasure
Type eml:VolumePerVolumeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:VolumePerVolumeUom required
Source

<element minOccurs="0" name="relativeCompaction" type="eml:VolumePerVolumeMeasure"/>
Element diggs:ReconstitutedSpecimenPreparationInfoType / diggs:waterContentRelativeToOptimum
Namespace http://diggsml.org/schema-dev
Annotations

Water content relative to optimum water content,
expressed as decimal (eg. water content at optimum =
1)
Diagram
Diagram
Type double
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="waterContentRelativeToOptimum" type="double">
  <annotation>
    <documentation>Water content relative to optimum water content, expressed as decimal (eg. water content at optimum = 1)</documentation>
  </annotation>
</element>

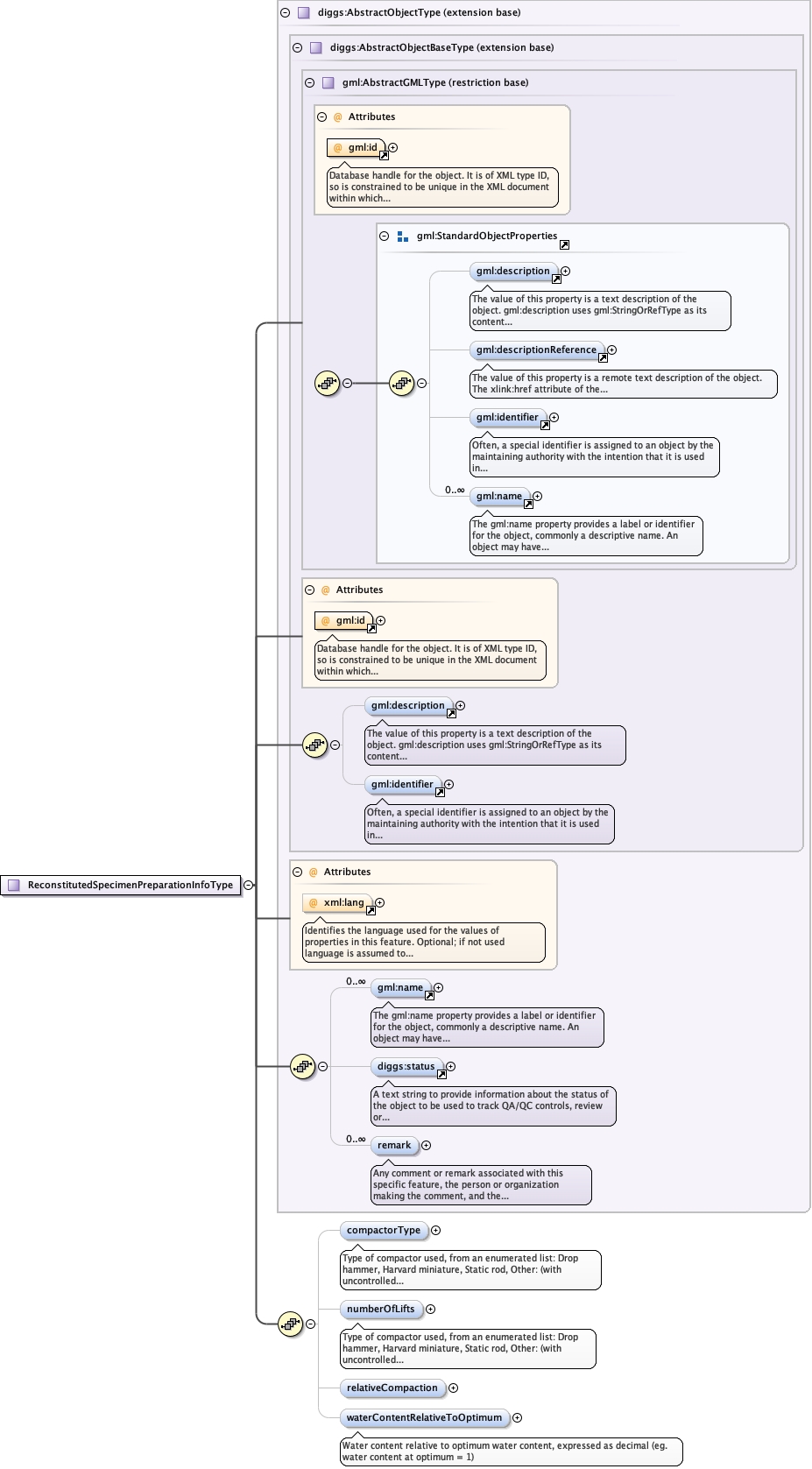

Complex Type diggs:ReconstitutedSpecimenPreparationInfoType
Namespace http://diggsml.org/schema-dev
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_ReconstitutedSpecimenPreparationInfoType.tmp#ReconstitutedSpecimenPreparationInfoType_compactorTypeKernel_xsd_Complex_Type_diggs_ReconstitutedSpecimenPreparationInfoType.tmp#ReconstitutedSpecimenPreparationInfoType_numberOfLiftsKernel_xsd_Complex_Type_diggs_ReconstitutedSpecimenPreparationInfoType.tmp#ReconstitutedSpecimenPreparationInfoType_relativeCompactionKernel_xsd_Complex_Type_diggs_ReconstitutedSpecimenPreparationInfoType.tmp#ReconstitutedSpecimenPreparationInfoType_waterContentRelativeToOptimum
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:compactorType, diggs:numberOfLifts, diggs:relativeCompaction, diggs:remark, diggs:status, diggs:waterContentRelativeToOptimum, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="ReconstitutedSpecimenPreparationInfoType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="compactorType" type="diggs:ReconstitutedSpecimenCompactorType">
          <annotation>
            <documentation>Type of compactor used, from an enumerated list: Drop hammer, Harvard miniature, Static rod, Other: (with uncontrolled string following colon).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="numberOfLifts" type="positiveInteger">
          <annotation>
            <documentation>Type of compactor used, from an enumerated list: Drop hammer, Harvard miniature, Static rod, Other: (with uncontrolled string following colon).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="relativeCompaction" type="eml:VolumePerVolumeMeasure"/>
        <element minOccurs="0" name="waterContentRelativeToOptimum" type="double">
          <annotation>
            <documentation>Water content relative to optimum water content, expressed as decimal (eg. water content at optimum = 1)</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
