Element diggs:LocationUncertaintyType / diggs:locationMethod
Namespace http://diggsml.org/schema-dev
Annotations

The method used to determine the coordinate information,
eg. GPS, Google Earth, surveyed, etc. Intended to come from a
controlled list of terms.

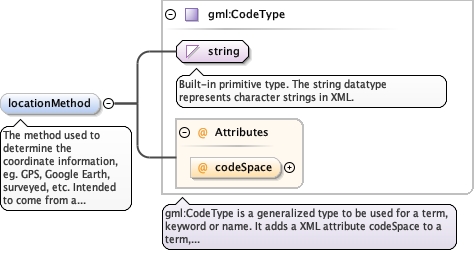

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="locationMethod" type="gml:CodeType">
  <annotation>
    <documentation>The method used to determine the coordinate information, eg. GPS, Google Earth, surveyed, etc. Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>
Element diggs:LocationUncertaintyType / diggs:xValueUncertainty
Namespace http://diggsml.org/schema-dev
Annotations

Uncertainty for the x value of a location
coordinate.

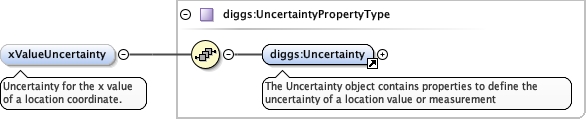

Diagram
DiagramKernel_xsd_Element_diggs_Uncertainty.tmp#UncertaintyKernel_xsd_Complex_Type_diggs_UncertaintyPropertyType.tmp#UncertaintyPropertyType
Type diggs:UncertaintyPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Uncertainty
Instance

<diggs:xValueUncertainty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Uncertainty gml:id="" xml:lang="">{1,1}</diggs:Uncertainty>
</diggs:xValueUncertainty>
Source

<element minOccurs="0" name="xValueUncertainty" type="diggs:UncertaintyPropertyType">
  <annotation>
    <documentation>Uncertainty for the x value of a location coordinate.</documentation>
  </annotation>
</element>
Element diggs:LocationUncertaintyType / diggs:yValueUncertainty
Namespace http://diggsml.org/schema-dev
Annotations

Uncertainty for the y value of a location coordinate,
applicable to 2D or 3D SRS'
Diagram
DiagramKernel_xsd_Element_diggs_Uncertainty.tmp#UncertaintyKernel_xsd_Complex_Type_diggs_UncertaintyPropertyType.tmp#UncertaintyPropertyType
Type diggs:UncertaintyPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Uncertainty
Instance

<diggs:yValueUncertainty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Uncertainty gml:id="" xml:lang="">{1,1}</diggs:Uncertainty>
</diggs:yValueUncertainty>
Source

<element minOccurs="0" name="yValueUncertainty" type="diggs:UncertaintyPropertyType">
  <annotation>
    <documentation>Uncertainty for the y value of a location coordinate, applicable to 2D or 3D SRS'</documentation>
  </annotation>
</element>
Element diggs:LocationUncertaintyType / diggs:zValueUncertainty
Namespace http://diggsml.org/schema-dev
Annotations

Uncertainty for the z value of a location coordinate,
applicable to 3D SRS'

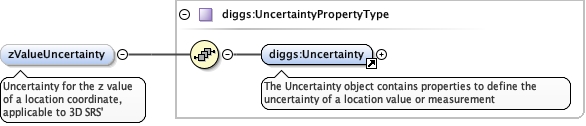

Diagram
DiagramKernel_xsd_Element_diggs_Uncertainty.tmp#UncertaintyKernel_xsd_Complex_Type_diggs_UncertaintyPropertyType.tmp#UncertaintyPropertyType
Type diggs:UncertaintyPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Uncertainty
Instance

<diggs:zValueUncertainty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Uncertainty gml:id="" xml:lang="">{1,1}</diggs:Uncertainty>
</diggs:zValueUncertainty>
Source

<element minOccurs="0" name="zValueUncertainty" type="diggs:UncertaintyPropertyType">
  <annotation>
    <documentation>Uncertainty for the z value of a location coordinate, applicable to 3D SRS'</documentation>
  </annotation>
</element>
Complex Type diggs:LocationUncertaintyType
Namespace http://diggsml.org/schema-dev

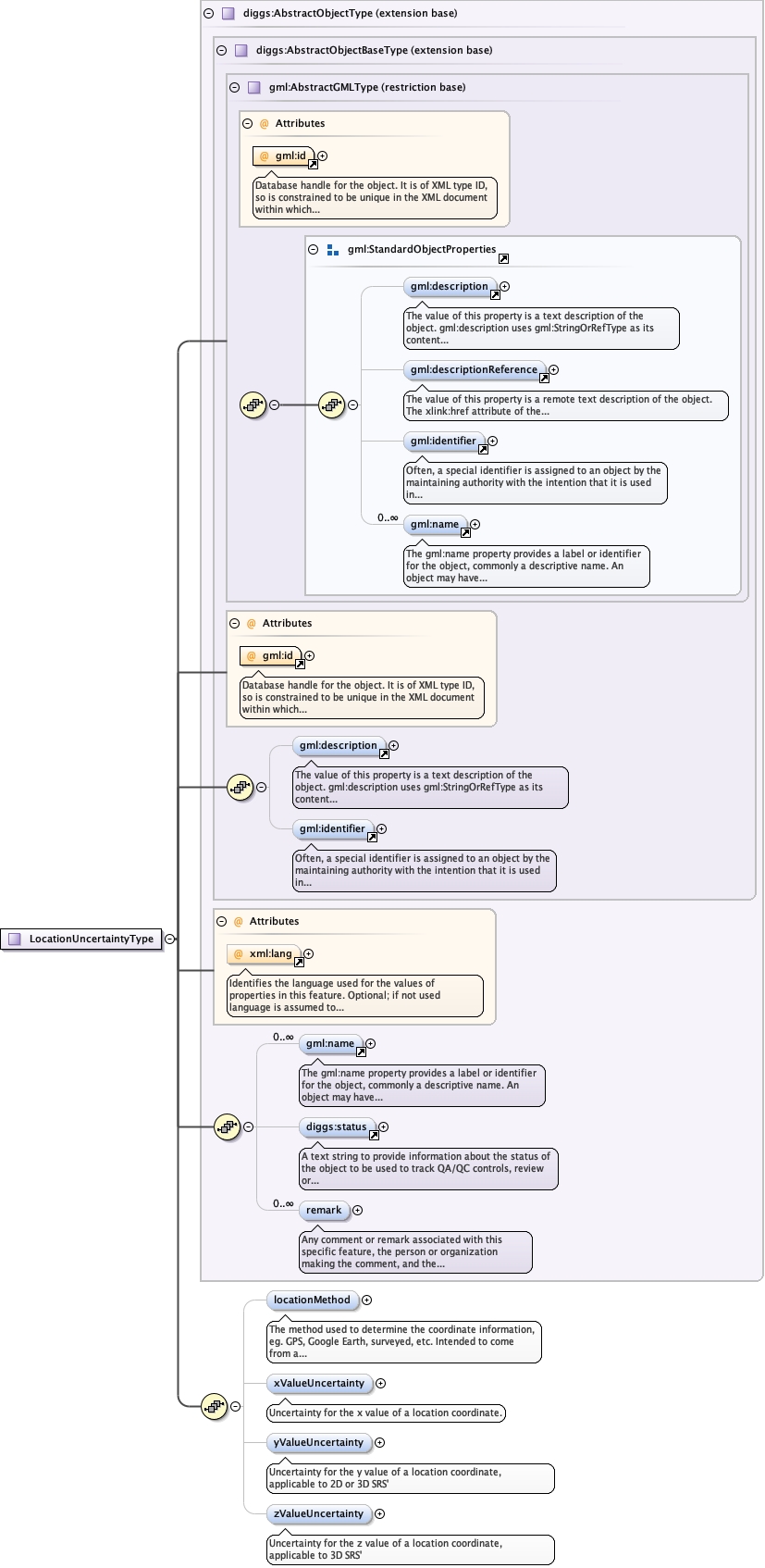

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_locationMethodKernel_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_xValueUncertaintyKernel_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_yValueUncertaintyKernel_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_zValueUncertainty
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:locationMethod, diggs:remark, diggs:status, diggs:xValueUncertainty, diggs:yValueUncertainty, diggs:zValueUncertainty, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="LocationUncertaintyType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" name="locationMethod" type="gml:CodeType">
          <annotation>
            <documentation>The method used to determine the coordinate information, eg. GPS, Google Earth, surveyed, etc. Intended to come from a controlled list of terms.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="xValueUncertainty" type="diggs:UncertaintyPropertyType">
          <annotation>
            <documentation>Uncertainty for the x value of a location coordinate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="yValueUncertainty" type="diggs:UncertaintyPropertyType">
          <annotation>
            <documentation>Uncertainty for the y value of a location coordinate, applicable to 2D or 3D SRS'</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="zValueUncertainty" type="diggs:UncertaintyPropertyType">
          <annotation>
            <documentation>Uncertainty for the z value of a location coordinate, applicable to 3D SRS'</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
