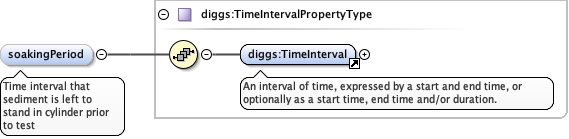

Element diggs:HydrometerType / diggs:soakingPeriod
Namespace http://diggsml.org/schema-dev
Annotations

Time interval that sediment is left to stand in cylinder
prior to test
Diagram
DiagramKernel_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalKernel_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
Model
diggs:TimeInterval
Children diggs:TimeInterval
Instance

<diggs:soakingPeriod xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:TimeInterval gml:id="" xml:lang="">{1,1}</diggs:TimeInterval>
</diggs:soakingPeriod>
Source

<element minOccurs="0" name="soakingPeriod" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>Time interval that sediment is left to stand in cylinder prior to test</documentation>
  </annotation>
</element>

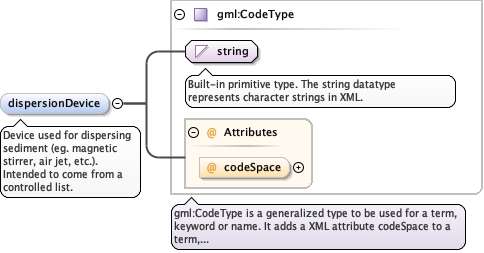

Element diggs:HydrometerType / diggs:dispersionDevice
Namespace http://diggsml.org/schema-dev
Annotations

Device used for dispersing sediment (eg. magnetic
stirrer, air jet, etc.). Intended to come from a controlled
list.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="dispersionDevice" type="gml:CodeType">
  <annotation>
    <documentation>Device used for dispersing sediment (eg. magnetic stirrer, air jet, etc.). Intended to come from a controlled list.</documentation>
  </annotation>
</element>

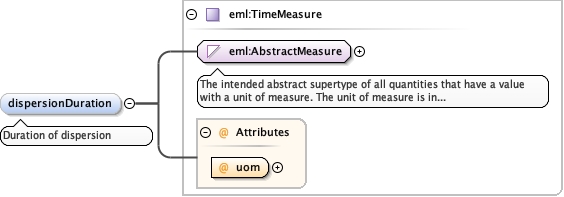

Element diggs:HydrometerType / diggs:dispersionDuration
Namespace http://diggsml.org/schema-dev
Annotations

Duration of dispersion
Diagram
DiagramBaseTypes_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure_uomMeasureType_xsd_Complex_Type_eml_TimeMeasure.tmp#TimeMeasure
Type eml:TimeMeasure
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use
uom eml:TimeUom required
Source

<element minOccurs="0" name="dispersionDuration" type="eml:TimeMeasure">
  <annotation>
    <documentation>Duration of dispersion</documentation>
  </annotation>
</element>

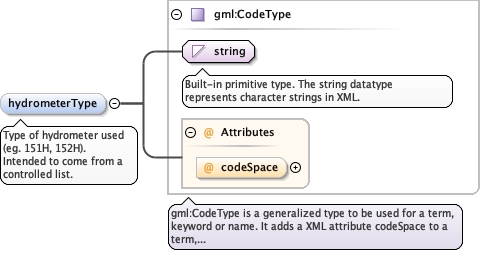

Element diggs:HydrometerType / diggs:hydrometerType
Namespace http://diggsml.org/schema-dev
Annotations

Type of hydrometer used (eg. 151H, 152H). Intended to
come from a controlled list.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="hydrometerType" type="gml:CodeType">
  <annotation>
    <documentation>Type of hydrometer used (eg. 151H, 152H). Intended to come from a controlled list.</documentation>
  </annotation>
</element>

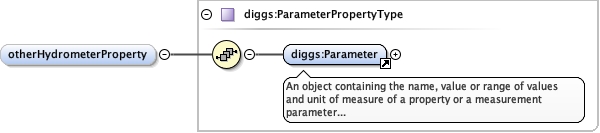

Element diggs:HydrometerType / diggs:otherHydrometerProperty
Namespace http://diggsml.org/schema-dev
Diagram
DiagramKernel_xsd_Element_diggs_Parameter.tmp#ParameterKernel_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:Parameter
Children diggs:Parameter
Instance

<diggs:otherHydrometerProperty xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherHydrometerProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherHydrometerProperty" type="diggs:ParameterPropertyType"/>

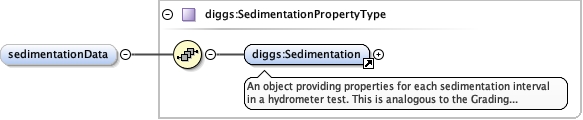

Element diggs:HydrometerType / diggs:sedimentationData
Namespace http://diggsml.org/schema-dev
Diagram
DiagramTestProcedures_xsd_Element_diggs_Sedimentation.tmp#http___diggsml.org_schema-dev_SedimentationTestProcedures_xsd_Complex_Type_diggs_SedimentationPropertyType.tmp#http___diggsml.org_schema-dev_SedimentationPropertyType
Type diggs:SedimentationPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:Sedimentation
Children diggs:Sedimentation
Instance

<diggs:sedimentationData xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:Sedimentation gml:id="" xml:lang="">{1,1}</diggs:Sedimentation>
</diggs:sedimentationData>
Source

<element maxOccurs="unbounded" minOccurs="0" name="sedimentationData" type="diggs:SedimentationPropertyType"/>

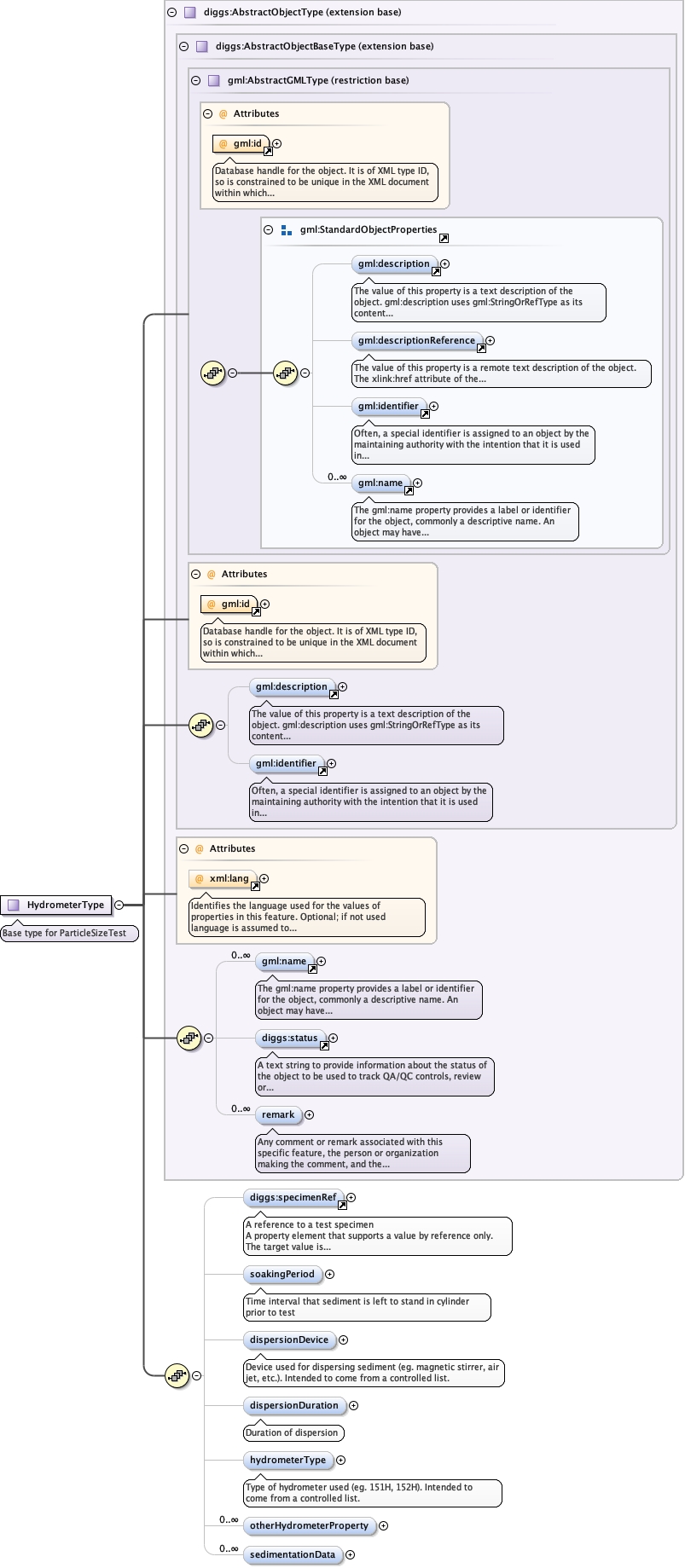

Complex Type diggs:HydrometerType
Namespace http://diggsml.org/schema-dev
Annotations

Base type for ParticleSizeTest
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierKernel_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypexml_xsd_Attribute_xml_lang.tmp#langgml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameKernel_xsd_Element_diggs_status.tmp#statusKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkKernel_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeKernel_xsd_Element_diggs_specimenRef.tmp#specimenRefTestProcedures_xsd_Complex_Type_diggs_HydrometerType.tmp#http___diggsml.org_schema-dev_HydrometerType_soakingPeriodTestProcedures_xsd_Complex_Type_diggs_HydrometerType.tmp#http___diggsml.org_schema-dev_HydrometerType_dispersionDeviceTestProcedures_xsd_Complex_Type_diggs_HydrometerType.tmp#http___diggsml.org_schema-dev_HydrometerType_dispersionDurationTestProcedures_xsd_Complex_Type_diggs_HydrometerType.tmp#http___diggsml.org_schema-dev_HydrometerType_hydrometerTypeTestProcedures_xsd_Complex_Type_diggs_HydrometerType.tmp#http___diggsml.org_schema-dev_HydrometerType_otherHydrometerPropertyTestProcedures_xsd_Complex_Type_diggs_HydrometerType.tmp#http___diggsml.org_schema-dev_HydrometerType_sedimentationData
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:Hydrometer
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:status{0,1} , diggs:remark* , diggs:specimenRef{0,1} , diggs:soakingPeriod{0,1} , diggs:dispersionDevice{0,1} , diggs:dispersionDuration{0,1} , diggs:hydrometerType{0,1} , diggs:otherHydrometerProperty* , diggs:sedimentationData*
Children diggs:dispersionDevice, diggs:dispersionDuration, diggs:hydrometerType, diggs:otherHydrometerProperty, diggs:remark, diggs:sedimentationData, diggs:soakingPeriod, diggs:specimenRef, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>
Source

<complexType name="HydrometerType">
  <annotation>
    <documentation>Base type for ParticleSizeTest</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" ref="diggs:specimenRef"/>
        <element minOccurs="0" name="soakingPeriod" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>Time interval that sediment is left to stand in cylinder prior to test</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dispersionDevice" type="gml:CodeType">
          <annotation>
            <documentation>Device used for dispersing sediment (eg. magnetic stirrer, air jet, etc.). Intended to come from a controlled list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dispersionDuration" type="eml:TimeMeasure">
          <annotation>
            <documentation>Duration of dispersion</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="hydrometerType" type="gml:CodeType">
          <annotation>
            <documentation>Type of hydrometer used (eg. 151H, 152H). Intended to come from a controlled list.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherHydrometerProperty" type="diggs:ParameterPropertyType"/>
        <element maxOccurs="unbounded" minOccurs="0" name="sedimentationData" type="diggs:SedimentationPropertyType"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
