Element gml:AbstractFeature
Namespace http://www.opengis.net/gml/3.2
Annotations

This abstract element serves as the head of a substitution group which may
contain any elements whose content model is derived from gml:AbstractFeatureType. This may
be used as a variable in the construction of content models. gml:AbstractFeature may be
thought of as “anything that is a GML feature” and may be used to define variables or
templates in which the value of a GML property is “any feature”. This occurs in particular
in a GML feature collection where the feature member properties contain one or multiple
copies of gml:AbstractFeature respectively.

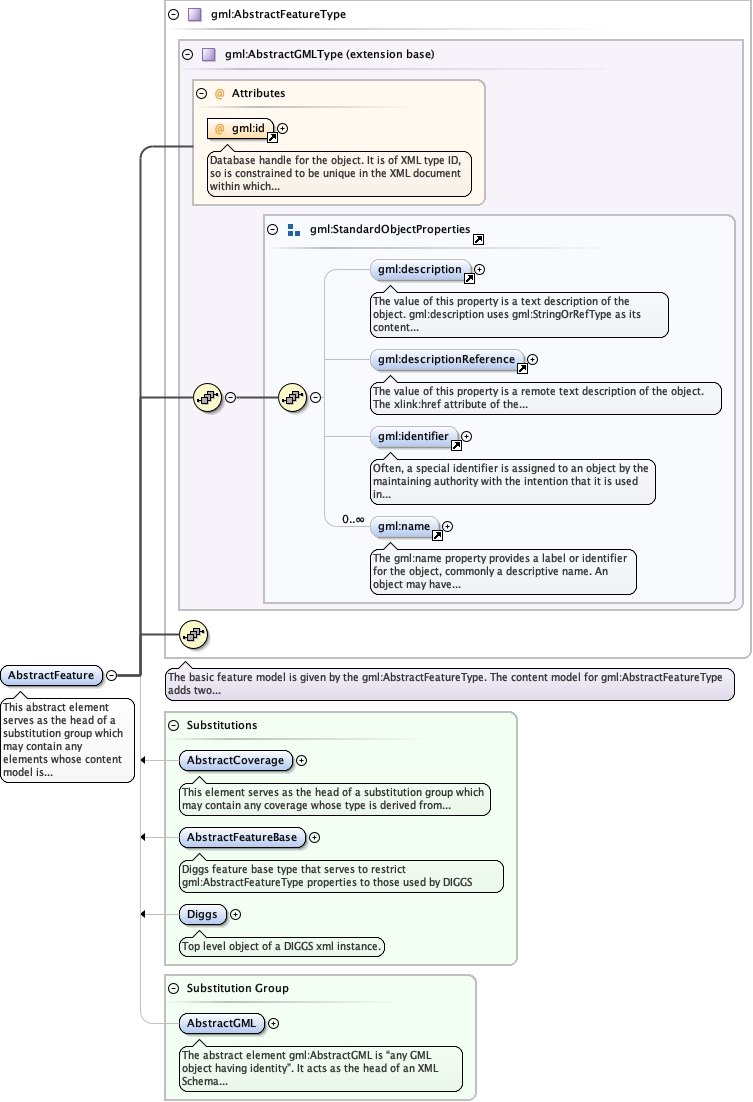

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#http___www.opengis.net_gml_3.2_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_AbstractCoverage.tmp#AbstractCoverageKernel_xsd_Element_diggs_AbstractFeatureBase.tmp#AbstractFeatureBaseKernel_xsd_Element_diggs_Diggs.tmp#Diggsgml3_2Profile_diggs_xsd_Element_gml_AbstractGML.tmp#AbstractGML
Type gml:AbstractFeatureType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Used by
Complex Type gml:FeaturePropertyType
Model
gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name*
Children gml:description, gml:descriptionReference, gml:identifier, gml:name
Instance

<gml:AbstractFeature gml:id="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
</gml:AbstractFeature>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AbstractFeature" type="gml:AbstractFeatureType" abstract="true" substitutionGroup="gml:AbstractGML">
  <annotation>
    <documentation>This abstract element serves as the head of a substitution group which may contain any elements whose content model is derived from gml:AbstractFeatureType. This may be used as a variable in the construction of content models. gml:AbstractFeature may be thought of as “anything that is a GML feature” and may be used to define variables or templates in which the value of a GML property is “any feature”. This occurs in particular in a GML feature collection where the feature member properties contain one or multiple copies of gml:AbstractFeature respectively.</documentation>
  </annotation>
</element>
