Schema documentation for component diggs

An object describing a direct shear test procedure. The direct shear test, also known as a shearbox test, is used for determination of the consolidated drained (or undrained) shear strength of soils. The test is performed by deforming a specimen at a controlled rate on or near a single shear plane.

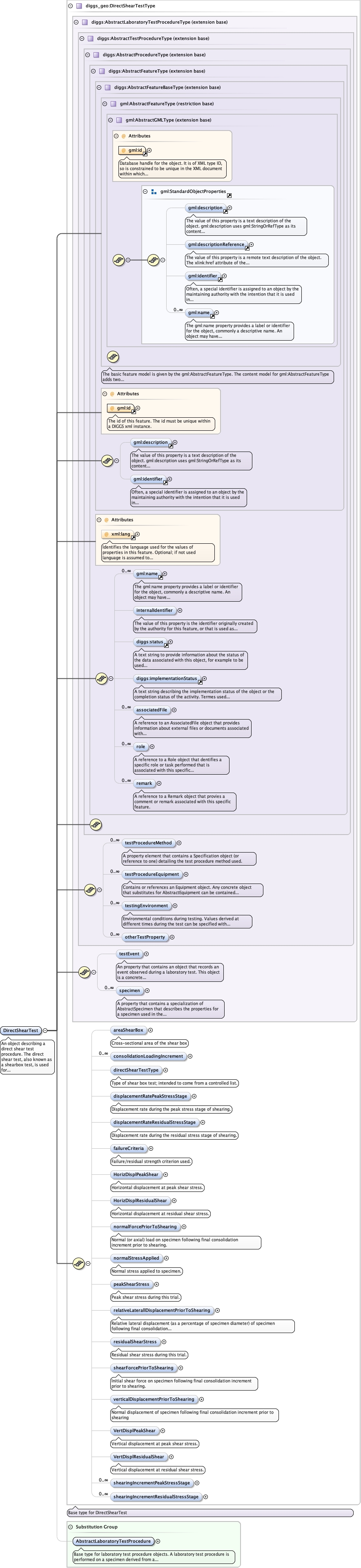

<diggs_geo:DirectShearTest gml:id="" xml:lang="" xmlns:diggs_geo="http://diggsml.org/schema-dev/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schema-dev">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment>{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:specimen>
  <diggs_geo:areaShearBox uom="">{0,1}</diggs_geo:areaShearBox>
  <diggs_geo:consolidationLoadingIncrement>{0,unbounded}</diggs_geo:consolidationLoadingIncrement>
  <diggs_geo:directShearTestType codeSpace="">{0,1}</diggs_geo:directShearTestType>
  <diggs_geo:displacementRatePeakStressStage uom="">{0,1}</diggs_geo:displacementRatePeakStressStage>
  <diggs_geo:displacementRateResidualStressStage uom="">{0,1}</diggs_geo:displacementRateResidualStressStage>
  <diggs_geo:failureCriteria codeSpace="">{0,1}</diggs_geo:failureCriteria>
  <diggs_geo:HorizDisplPeakShear uom="">{0,1}</diggs_geo:HorizDisplPeakShear>
  <diggs_geo:HorizDisplResidualShear uom="">{0,1}</diggs_geo:HorizDisplResidualShear>
  <diggs_geo:normalForcePriorToShearing uom="">{0,1}</diggs_geo:normalForcePriorToShearing>
  <diggs_geo:normalStressApplied uom="">{0,1}</diggs_geo:normalStressApplied>
  <diggs_geo:peakShearStress uom="">{0,1}</diggs_geo:peakShearStress>
  <diggs_geo:relativeLaterallDisplacementPriorToShearing uom="">{0,1}</diggs_geo:relativeLaterallDisplacementPriorToShearing>
  <diggs_geo:residualShearStress uom="">{0,1}</diggs_geo:residualShearStress>
  <diggs_geo:shearForcePriorToShearing uom="">{0,1}</diggs_geo:shearForcePriorToShearing>
  <diggs_geo:verticalDisplacementPriorToShearing uom="">{0,1}</diggs_geo:verticalDisplacementPriorToShearing>
  <diggs_geo:VertDisplPeakShear uom="">{0,1}</diggs_geo:VertDisplPeakShear>
  <diggs_geo:VertDisplResidualShear uom="">{0,1}</diggs_geo:VertDisplResidualShear>
  <diggs_geo:shearingIncrementPeakStressStage>{0,unbounded}</diggs_geo:shearingIncrementPeakStressStage>
  <diggs_geo:shearingIncrementResidualStressStage>{0,unbounded}</diggs_geo:shearingIncrementResidualStressStage>
</diggs_geo:DirectShearTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

<element abstract="false" name="DirectShearTest" substitutionGroup="diggs:AbstractLaboratoryTestProcedure" type="diggs_geo:DirectShearTestType"> <annotation> <documentation>An object describing a direct shear test procedure. The direct shear test, also known as a shearbox test, is used for determination of the consolidated drained (or undrained) shear strength of soils. The test is performed by deforming a specimen at a controlled rate on or near a single shear plane.</documentation> </annotation> </element>
