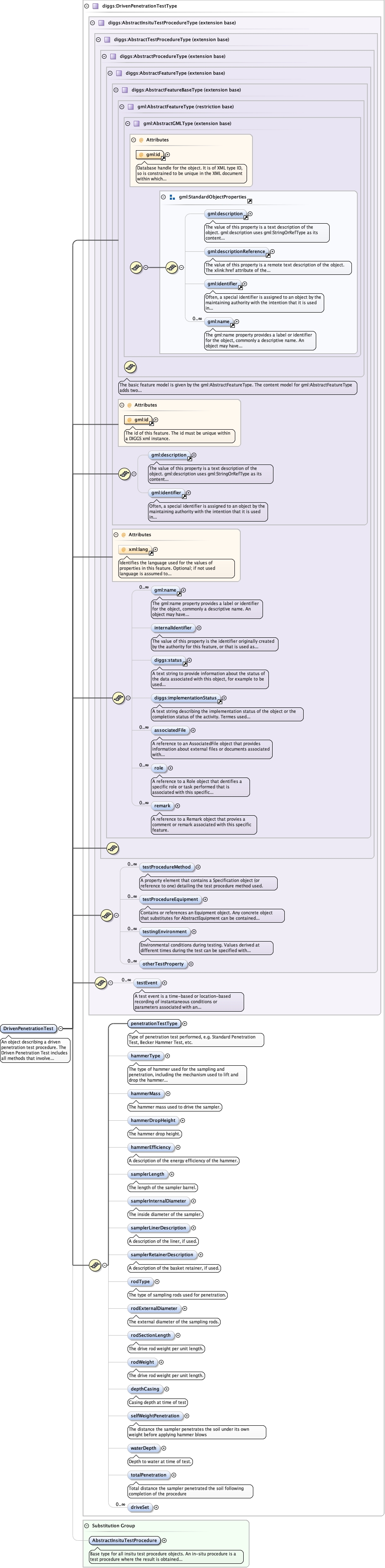

Schema documentation for component diggs:DrivenPenetrationTest

An object describing a driven penetration test procedure. The Driven Penetration Test includes all methods that involve driving a rod (with or without a sampler) by impact hammer. The most common test of this type inclue the Standard Penetration Test and the Becker Hammer Test.

<diggs:DrivenPenetrationTest gml:id="" xml:lang="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment>{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testEvent>
  <diggs:penetrationTestType codeSpace="">{1,1}</diggs:penetrationTestType>
  <diggs:hammerType codeSpace="">{0,1}</diggs:hammerType>
  <diggs:hammerMass uom="">{0,1}</diggs:hammerMass>
  <diggs:hammerDropHeight uom="">{0,1}</diggs:hammerDropHeight>
  <diggs:hammerEfficiency uom="">{0,1}</diggs:hammerEfficiency>
  <diggs:samplerLength uom="">{0,1}</diggs:samplerLength>
  <diggs:samplerInternalDiameter uom="">{0,1}</diggs:samplerInternalDiameter>
  <diggs:samplerLinerDescription xml:lang="">{0,1}</diggs:samplerLinerDescription>
  <diggs:samplerRetainerDescription xml:lang="">{0,1}</diggs:samplerRetainerDescription>
  <diggs:rodType codeSpace="">{0,1}</diggs:rodType>
  <diggs:rodExternalDiameter uom="">{0,1}</diggs:rodExternalDiameter>
  <diggs:rodSectionLength uom="">{0,1}</diggs:rodSectionLength>
  <diggs:rodWeight uom="">{0,1}</diggs:rodWeight>
  <diggs:depthCasing uom="">{0,1}</diggs:depthCasing>
  <diggs:selfWeightPenetration uom="">{0,1}</diggs:selfWeightPenetration>
  <diggs:waterDepth uom="">{0,1}</diggs:waterDepth>
  <diggs:totalPenetration uom="">{0,1}</diggs:totalPenetration>
  <diggs:driveSet>{0,unbounded}</diggs:driveSet>
</diggs:DrivenPenetrationTest>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

<element name="DrivenPenetrationTest" type="diggs:DrivenPenetrationTestType" abstract="false" substitutionGroup="diggs:AbstractInsituTestProcedure"> <annotation> <documentation>An object describing a driven penetration test procedure. The Driven Penetration Test includes all methods that involve driving a rod (with or without a sampler) by impact hammer. The most common test of this type inclue the Standard Penetration Test and the Becker Hammer Test.</documentation> </annotation> </element>
