Namespace http://diggsml.org/schema-dev

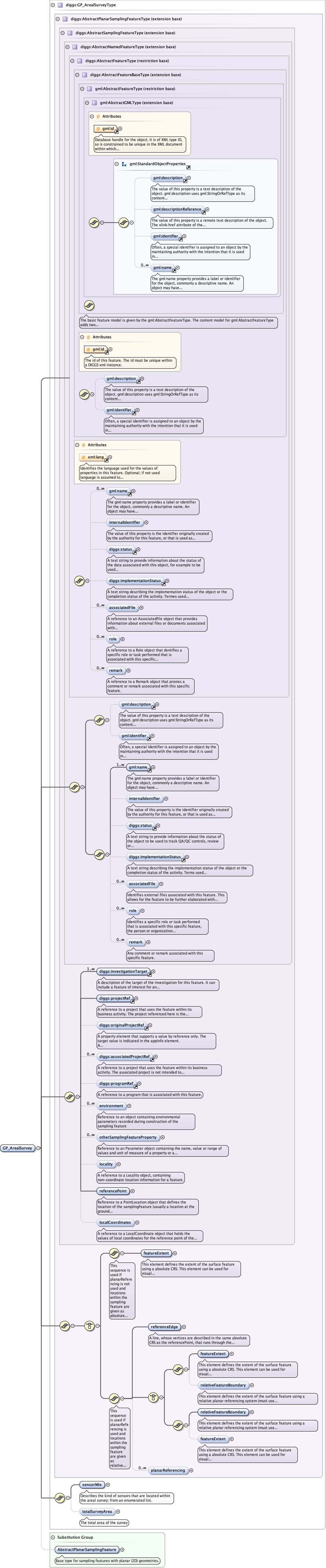

Diagram
Type diggs:GP_ArealSurveyType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name+ ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget+ ,
diggs:projectRef ,
diggs:originalProjectRef{0,1} ,
diggs:associatedProjectRef* ,
diggs:programRef{0,1} ,
diggs:environment* ,
diggs:otherSamplingFeatureProperty* ,
diggs:locality{0,1} ,
diggs:referencePoint ,
diggs:localCoordinates{0,1} , ((
diggs:featureExtent ) | (
diggs:referenceEdge , ((
diggs:featureExtent ,
diggs:relativeFeatureBoundary{0,1} ) | (
diggs:relativeFeatureBoundary ,
diggs:featureExtent{0,1} )) ,
diggs:planarReferencing* )) ,
diggs:sensorMix ,
diggs:totalSurveyArea{0,1}
Children diggs:associatedFile diggs:associatedProjectRef diggs:environment diggs:featureExtent diggs:implementationStatus diggs:internalIdentifier diggs:investigationTarget diggs:localCoordinates diggs:locality diggs:originalProjectRef diggs:otherSamplingFeatureProperty diggs:planarReferencing diggs:programRef diggs:projectRef diggs:referenceEdge diggs:referencePoint diggs:relativeFeatureBoundary diggs:remark diggs:role diggs:sensorMix diggs:status diggs:totalSurveyArea gml:description gml:identifier gml:name
Instance
<diggs:GP_ArealSurvey gml:id= "" xml:lang= "" xmlns:diggs= "http://diggsml.org/schema-dev" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {1,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:investigationTarget > {1,unbounded} </diggs:investigationTarget>
<diggs:projectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </diggs:projectRef>
<diggs:originalProjectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:originalProjectRef>
<diggs:associatedProjectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedProjectRef>
<diggs:programRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:programRef>
<diggs:environment > {0,unbounded} </diggs:environment>
<diggs:otherSamplingFeatureProperty > {0,unbounded} </diggs:otherSamplingFeatureProperty>
<diggs:locality > {0,1} </diggs:locality>
<diggs:referencePoint xlink:actuate= "" xlink:role= "" xlink:arcrole= "" xlink:show= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:referencePoint>
<diggs:localCoordinates > {0,1} </diggs:localCoordinates>
<diggs:featureExtent xlink:role= "" xlink:actuate= "" xlink:show= "" xlink:arcrole= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:featureExtent>
<diggs:referenceEdge xlink:actuate= "" xlink:role= "" xlink:arcrole= "" xlink:show= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:referenceEdge>
<diggs:featureExtent xlink:role= "" xlink:actuate= "" xlink:show= "" xlink:arcrole= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:featureExtent>
<diggs:relativeFeatureBoundary xlink:role= "" xlink:actuate= "" xlink:show= "" xlink:arcrole= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {0,1} </diggs:relativeFeatureBoundary>
<diggs:relativeFeatureBoundary xlink:role= "" xlink:actuate= "" xlink:show= "" xlink:arcrole= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:relativeFeatureBoundary>
<diggs:featureExtent xlink:role= "" xlink:actuate= "" xlink:show= "" xlink:arcrole= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {0,1} </diggs:featureExtent>
<diggs:planarReferencing > {0,unbounded} </diggs:planarReferencing>
<diggs:sensorMix > {1,1} </diggs:sensorMix>
<diggs:totalSurveyArea uom= "" > {0,1} </diggs:totalSurveyArea>
</diggs:GP_ArealSurvey>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
xml:lang union of(xs:language , restriction of xs:string )
optional
<div >
<h3 > lang (as an attribute name) </h3>
<p > denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification. </p>
</div>
<div >
<h4 > Notes </h4>
<p > Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility. </p>
<p > See BCP 47 at
<a href= "http://www.rfc-editor.org/rfc/bcp/bcp47.txt" > http://www.rfc-editor.org/rfc/bcp/bcp47.txt </a> and the IANA language subtag registry at
<a href= "http://www.iana.org/assignments/language-subtag-registry" > http://www.iana.org/assignments/language-subtag-registry </a> for further information. </p>
<p > The union allows for the 'un-declaration' of xml:lang with the empty string. </p>
</div>
Source
<element name= "GP_ArealSurvey" substitutionGroup= "diggs:AbstractPlanarSamplingFeature" type= "diggs:GP_ArealSurveyType" />
