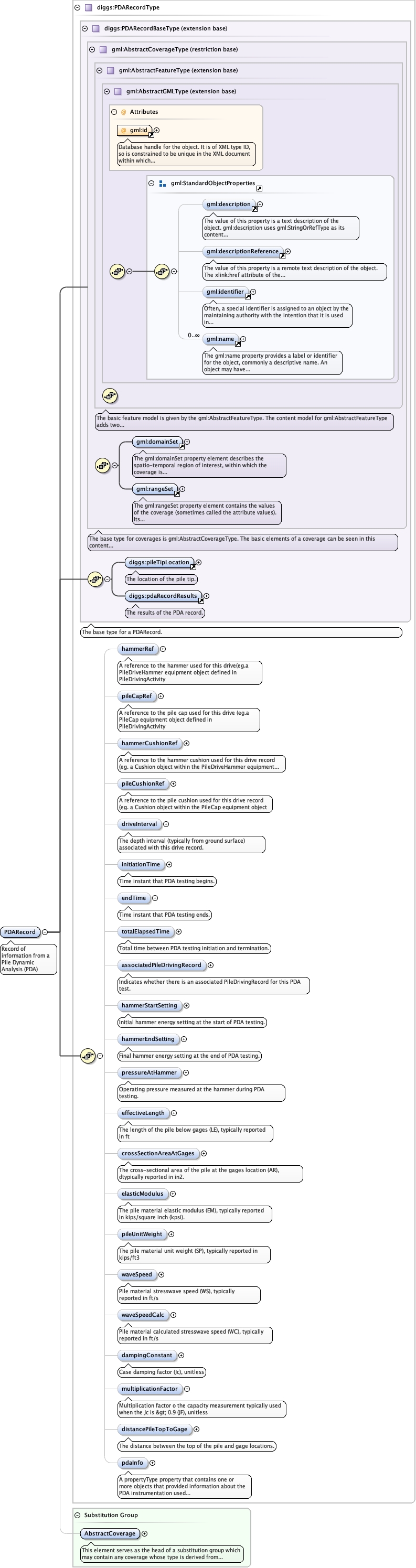

Schema documentation for component diggs:PDARecord

<diggs:PDARecord gml:id="" xmlns:diggs="http://diggsml.org/schema-dev">
  <diggs:pileTipLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{1,1}</diggs:pileTipLocation>
  <diggs:pdaRecordResults>{1,1}</diggs:pdaRecordResults>
  <diggs:hammerRef xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:hammerRef>
  <diggs:pileCapRef xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:pileCapRef>
  <diggs:hammerCushionRef xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:hammerCushionRef>
  <diggs:pileCushionRef xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:pileCushionRef>
  <diggs:driveInterval xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:driveInterval>
  <diggs:initiationTime calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:initiationTime>
  <diggs:endTime calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:endTime>
  <diggs:totalElapsedTime uom="">{0,1}</diggs:totalElapsedTime>
  <diggs:associatedPileDrivingRecord>{0,1}</diggs:associatedPileDrivingRecord>
  <diggs:hammerStartSetting>{0,1}</diggs:hammerStartSetting>
  <diggs:hammerEndSetting>{0,1}</diggs:hammerEndSetting>
  <diggs:pressureAtHammer uom="">{0,1}</diggs:pressureAtHammer>
  <diggs:effectiveLength uom="">{0,1}</diggs:effectiveLength>
  <diggs:crossSectionAreaAtGages uom="">{0,1}</diggs:crossSectionAreaAtGages>
  <diggs:elasticModulus uom="">{0,1}</diggs:elasticModulus>
  <diggs:pileUnitWeight uom="">{0,1}</diggs:pileUnitWeight>
  <diggs:waveSpeed uom="">{0,1}</diggs:waveSpeed>
  <diggs:waveSpeedCalc uom="">{0,1}</diggs:waveSpeedCalc>
  <diggs:dampingConstant>{0,1}</diggs:dampingConstant>
  <diggs:multiplicationFactor>{0,1}</diggs:multiplicationFactor>
  <diggs:distancePileTopToGage uom="">{0,1}</diggs:distancePileTopToGage>
  <diggs:pdaInfo>{0,1}</diggs:pdaInfo>
</diggs:PDARecord>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element abstract="false" name="PDARecord" substitutionGroup="gml:AbstractCoverage" type="diggs:PDARecordType"> <annotation> <documentation>Record of information from a Pile Dynamic Analysis (PDA)</documentation> </annotation> </element>
