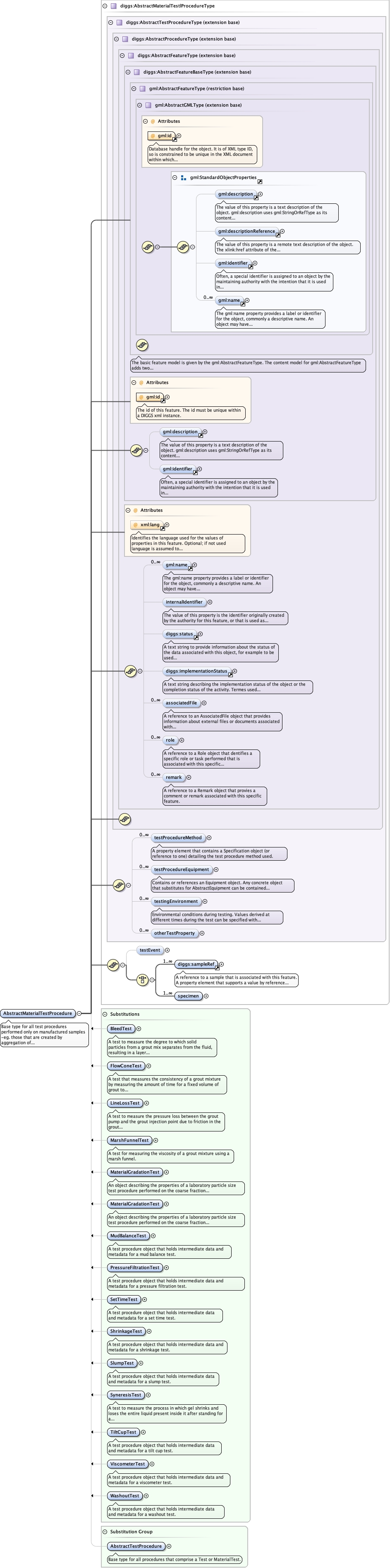

Schema documentation for component diggs:AbstractMaterialTestProcedure

Base type for all test procedures performed only on manufactured samples -eg. those that are created by aggregation of other samples or materials and where the sample has no location relevance. Material test procedures must reference or describe the samples and/or specimens upon which the test is performed. This category was developed for test procedures developed for characterizing grout samples but could be used for other types of samples where the results of the procedure relate to the characteristics of the sample only, and does not relate to the properties of a geographic feature of interest

<diggs:AbstractMaterialTestProcedure gml:id="" xml:lang="" xmlns:diggs="http://diggsml.org/schema-dev" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment>{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:sampleRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" percentage="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</diggs:sampleRef>
  <diggs:specimen xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</diggs:specimen>
</diggs:AbstractMaterialTestProcedure>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<div> <h3>lang (as an attribute name)</h3> <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p> </div> <div> <h4>Notes</h4> <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p> <p>See BCP 47 at <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p> <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p> </div>

<element abstract="true" name="AbstractMaterialTestProcedure" substitutionGroup="diggs:AbstractTestProcedure" type="diggs:AbstractMaterialTestlProcedureType"> <annotation> <documentation>Base type for all test procedures performed only on manufactured samples -eg. those that are created by aggregation of other samples or materials and where the sample has no location relevance. Material test procedures must reference or describe the samples and/or specimens upon which the test is performed. This category was developed for test procedures developed for characterizing grout samples but could be used for other types of samples where the results of the procedure relate to the characteristics of the sample only, and does not relate to the properties of a geographic feature of interest</documentation> </annotation> </element>

Showing:
