Schema documentation for component gml:RectifiedGridCoverage

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Element gml:RectifiedGridCoverage

Namespace

http://www.opengis.net/gml/3.2

Annotations

The gml:RectifiedGridCoverage is a discrete point coverage based on a rectified
grid. It is similar to the grid coverage except that the points of the grid are
geometrically referenced. The rectified grid coverage has a domain that is a
gml:RectifiedGrid geometry.

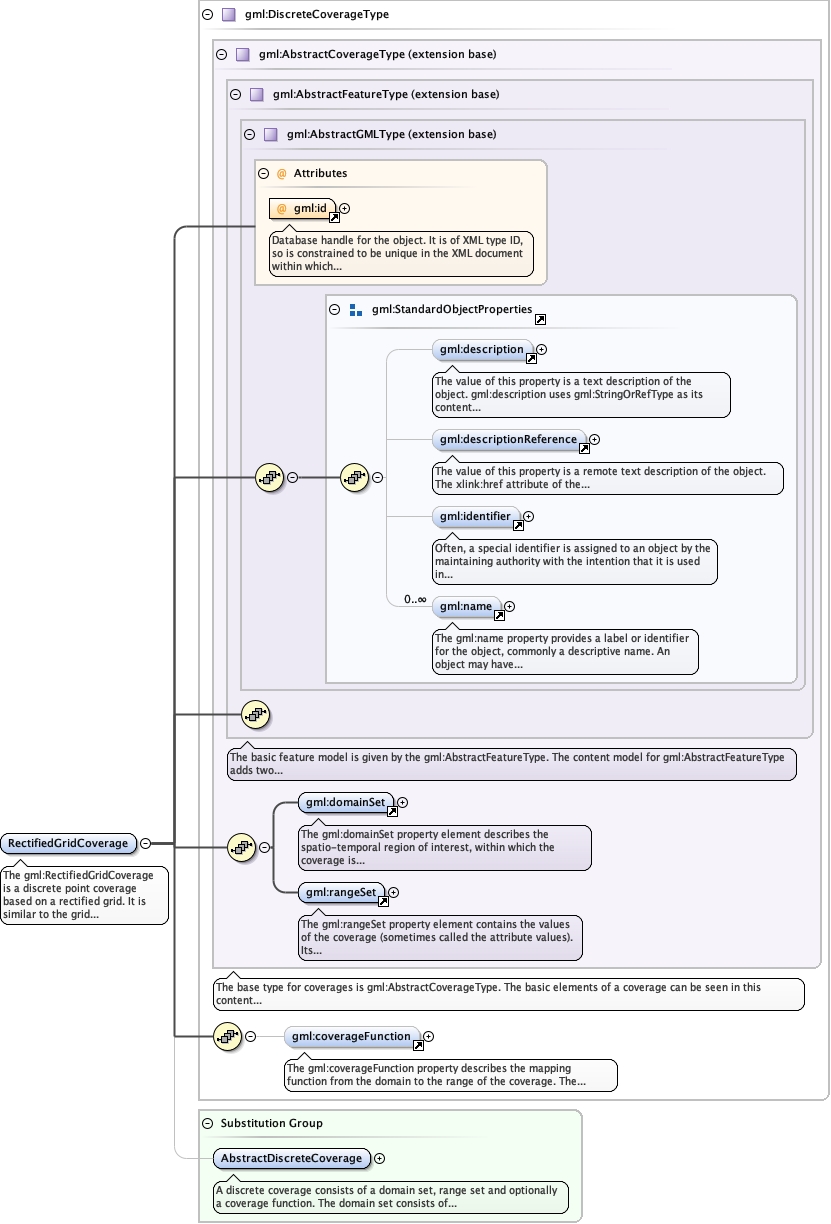

Diagram

Type

gml:DiscreteCoverageType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - gml:AbstractCoverageType
    - gml:DiscreteCoverageType

Properties

content

complex

Substitution Group Affiliation

gml:AbstractDiscreteCoverage

Model

gml:description{0,1} , gml:descriptionReference{0,1} , gml:identifier{0,1} , gml:name* , gml:domainSet , gml:rangeSet , gml:coverageFunction{0,1}

Children

gml:coverageFunction, gml:description, gml:descriptionReference, gml:domainSet, gml:identifier, gml:name, gml:rangeSet

Instance

<gml:RectifiedGridCoverage gml:id="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:domainSet xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</gml:domainSet>
  <gml:rangeSet>{1,1}</gml:rangeSet>
  <gml:coverageFunction>{0,1}</gml:coverageFunction>
</gml:RectifiedGridCoverage>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element name="RectifiedGridCoverage" type="gml:DiscreteCoverageType" substitutionGroup="gml:AbstractDiscreteCoverage">
  <annotation>
    <documentation>The gml:RectifiedGridCoverage is a discrete point coverage based on a rectified grid. It is similar to the grid coverage except that the points of the grid are geometrically referenced. The rectified grid coverage has a domain that is a gml:RectifiedGrid geometry.</documentation>
  </annotation>
</element>
