Element gml:coverageFunction
Namespace http://www.opengis.net/gml/3.2
Annotations

The gml:coverageFunction property describes the mapping function from the
domain to the range of the coverage. The value of the CoverageFunction is one of
gml:CoverageMappingRule and gml:GridFunction. If the gml:coverageFunction property is
omitted for a gridded coverage (including rectified gridded coverages) the gml:startPoint is
assumed to be the value of the gml:low property in the gml:Grid geometry, and the
gml:sequenceRule is assumed to be linear and the gml:axisOrder property is assumed to be
“+1 +2”.

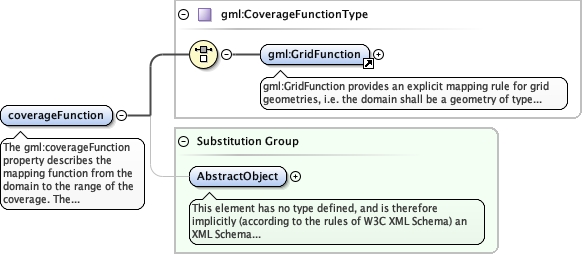

Diagram
Diagramgml3_2Profile_diggs_xsd_Element_gml_GridFunction.tmp#GridFunctiongml3_2Profile_diggs_xsd_Complex_Type_gml_CoverageFunctionType.tmp#CoverageFunctionTypegml3_2Profile_diggs_xsd_Element_gml_AbstractObject.tmp#http___www.opengis.net_gml_3.2_AbstractObject
Type gml:CoverageFunctionType
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gml:GridFunction
Instance

<gml:coverageFunction xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:GridFunction>{1,1}</gml:GridFunction>
</gml:coverageFunction>
Source

<element name="coverageFunction" type="gml:CoverageFunctionType" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>The gml:coverageFunction property describes the mapping function from the domain to the range of the coverage. The value of the CoverageFunction is one of gml:CoverageMappingRule and gml:GridFunction. If the gml:coverageFunction property is omitted for a gridded coverage (including rectified gridded coverages) the gml:startPoint is assumed to be the value of the gml:low property in the gml:Grid geometry, and the gml:sequenceRule is assumed to be linear and the gml:axisOrder property is assumed to be “+1 +2”.</documentation>
  </annotation>
</element>
