Element diggs:AbstractProgramSpecification
Namespace http://diggsml.org/schemas/3
Annotations

Abstract head of the substitution group for program specifications: the requirements
a program issues, such as tolerances, acceptance limits and performance criteria,
each carrying the scope of features over which it applies. A realized feature
declares which specifications govern it through diggs:programSpecificationRef, and a
design declares which it was prepared to satisfy through the same property. Not to
be confused with diggs:Specification. A program specification is a feature head: its
members are independently identified, referenceable features that state requirements
and, as program modules, carry scope and basedOnRef. diggs:Specification is a
component object, a procedure that cites a published standard
(standardReferenceNumber, standardTitle, standardVersion and so on) and states no
requirement of its own. A program specification commonly cites a diggs:Specification
for the test method by which conformance is measured; the two are complementary.

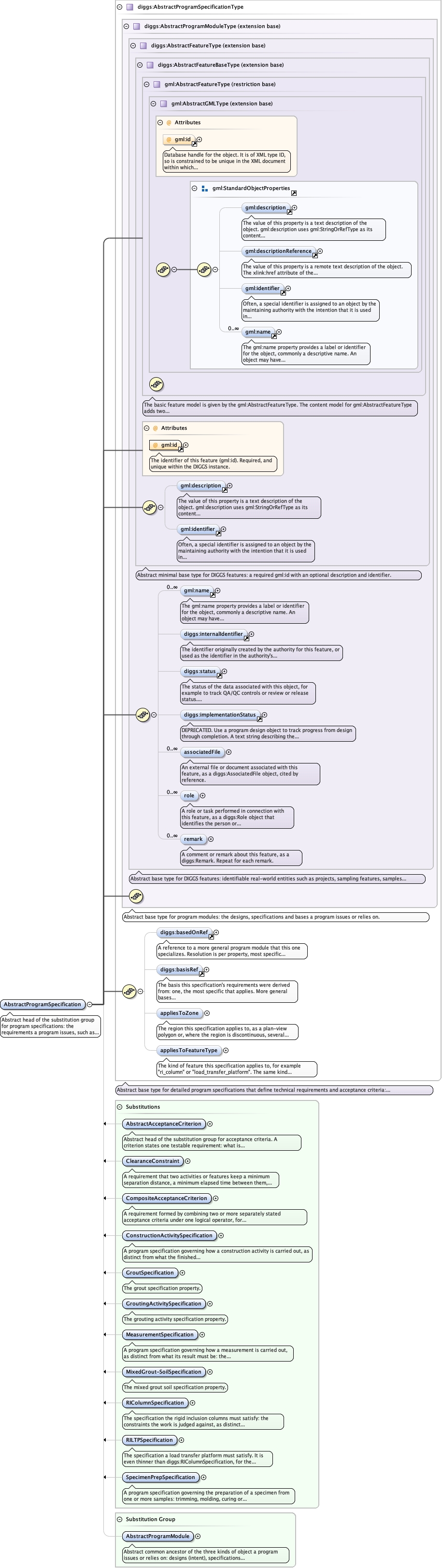

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramModuleType.tmp#AbstractProgramModuleTypeCommon_xsd_Element_diggs_basedOnRef.tmp#basedOnRefCommon_xsd_Element_diggs_basisRef.tmp#basisRefAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramSpecificationType.tmp#AbstractProgramSpecificationType_appliesToZoneAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramSpecificationType.tmp#AbstractProgramSpecificationType_appliesToFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProgramSpecificationType.tmp#AbstractProgramSpecificationTypeAbstractTypes_xsd_Element_diggs_AbstractAcceptanceCriterion.tmp#AbstractAcceptanceCriterionCore_xsd_Element_diggs_ClearanceConstraint.tmp#ClearanceConstraintCore_xsd_Element_diggs_CompositeAcceptanceCriterion.tmp#CompositeAcceptanceCriterionCore_xsd_Element_diggs_ConstructionActivitySpecification.tmp#ConstructionActivitySpecificationGrouting_xsd_Element_diggs_GroutSpecification.tmp#GroutSpecificationGrouting_xsd_Element_diggs_GroutingActivitySpecification.tmp#GroutingActivitySpecificationCore_xsd_Element_diggs_MeasurementSpecification.tmp#MeasurementSpecificationGrouting_xsd_Element_diggs_MixedGrout-SoilSpecification.tmp#MixedGrout-SoilSpecificationRigidInclusions_xsd_Element_diggs_RIColumnSpecification.tmp#RIColumnSpecificationRigidInclusions_xsd_Element_diggs_RILTPSpecification.tmp#RILTPSpecificationCore_xsd_Element_diggs_SpecimenPrepSpecification.tmp#SpecimenPrepSpecificationAbstractTypes_xsd_Element_diggs_AbstractProgramModule.tmp#AbstractProgramModule
Type diggs:AbstractProgramSpecificationType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Substitution Group Affiliation
Used by
Model
Children diggs:appliesToFeatureType, diggs:appliesToZone, diggs:associatedFile, diggs:basedOnRef, diggs:basisRef, diggs:implementationStatus, diggs:internalIdentifier, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:AbstractProgramSpecification gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:appliesToZone xlink:href="" nilReason="" owns="false">{0,1}</diggs:appliesToZone>
  <diggs:appliesToFeatureType codeSpace="">{0,1}</diggs:appliesToFeatureType>
</diggs:AbstractProgramSpecification>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="true" name="AbstractProgramSpecification" type="diggs:AbstractProgramSpecificationType" substitutionGroup="diggs:AbstractProgramModule">
  <annotation>
    <documentation>Abstract head of the substitution group for program specifications: the requirements a program issues, such as tolerances, acceptance limits and performance criteria, each carrying the scope of features over which it applies. A realized feature declares which specifications govern it through diggs:programSpecificationRef, and a design declares which it was prepared to satisfy through the same property. Not to be confused with diggs:Specification. A program specification is a feature head: its members are independently identified, referenceable features that state requirements and, as program modules, carry scope and basedOnRef. diggs:Specification is a component object, a procedure that cites a published standard (standardReferenceNumber, standardTitle, standardVersion and so on) and states no requirement of its own. A program specification commonly cites a diggs:Specification for the test method by which conformance is measured; the two are complementary.</documentation>
  </annotation>
</element>
