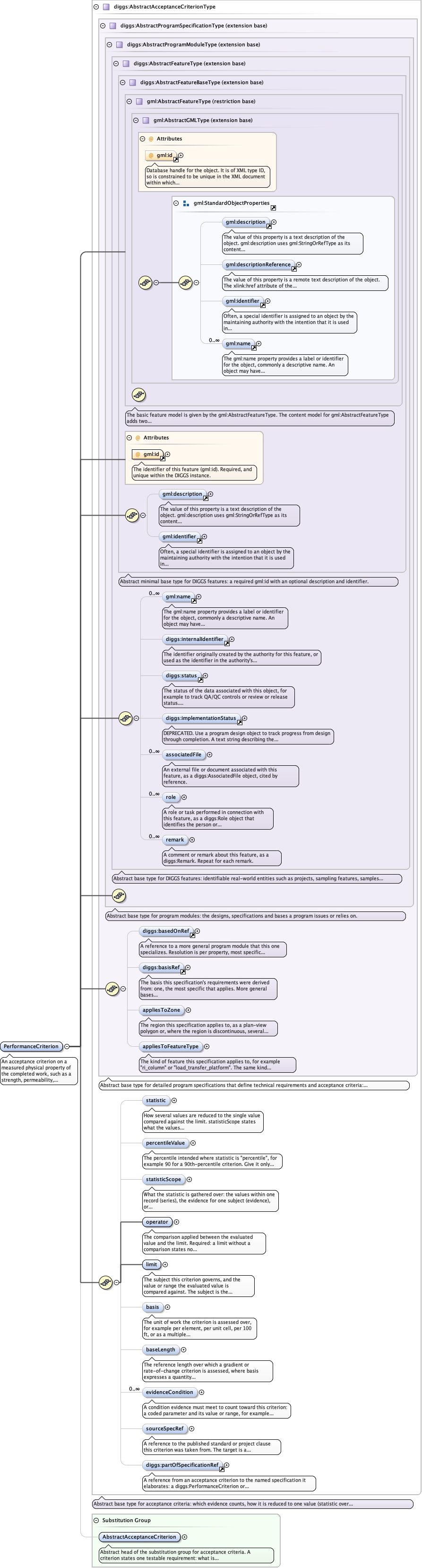

Schema documentation for component diggs:PerformanceCriterion

An acceptance criterion on a measured physical property of the completed work, such as a strength, permeability, settlement or modulus, evaluated against what was built. The parameterName of limit/AuthorizedParameter identifies the property; its mandatory codeSpace should resolve against properties.xml, so that a consumer can identify the quantity without interpreting free text. The schema does not enforce which dictionary is used. Where the requirement is on a constructional or geometric property, use diggs:DesignConformanceCriterion.

<diggs:PerformanceCriterion gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:href="" nilReason="">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:href="" nilReason="" owns="false">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:basedOnRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basedOnRef>
  <diggs:basisRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:basisRef>
  <diggs:appliesToZone xlink:href="" nilReason="" owns="false">{0,1}</diggs:appliesToZone>
  <diggs:appliesToFeatureType codeSpace="">{0,1}</diggs:appliesToFeatureType>
  <diggs:statistic>{0,1}</diggs:statistic>
  <diggs:percentileValue>{0,1}</diggs:percentileValue>
  <diggs:statisticScope>{0,1}</diggs:statisticScope>
  <diggs:operator>{1,1}</diggs:operator>
  <diggs:limit>{1,1}</diggs:limit>
  <diggs:basis codeSpace="">{0,1}</diggs:basis>
  <diggs:baseLength howDetermined="" qualifier="" uom="">{0,1}</diggs:baseLength>
  <diggs:evidenceCondition>{0,unbounded}</diggs:evidenceCondition>
  <diggs:sourceSpecRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:sourceSpecRef>
  <diggs:partOfSpecificationRef xlink:href="" identifierRef="" nilReason="" owns="false">{0,1}</diggs:partOfSpecificationRef>
</diggs:PerformanceCriterion>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="PerformanceCriterion" type="diggs:AbstractAcceptanceCriterionType" substitutionGroup="diggs:AbstractAcceptanceCriterion"> <annotation> <documentation>An acceptance criterion on a measured physical property of the completed work, such as a strength, permeability, settlement or modulus, evaluated against what was built. The parameterName of limit/AuthorizedParameter identifies the property; its mandatory codeSpace should resolve against properties.xml, so that a consumer can identify the quantity without interpreting free text. The schema does not enforce which dictionary is used. Where the requirement is on a constructional or geometric property, use diggs:DesignConformanceCriterion.</documentation> </annotation> </element>
