Complex Type diggs:TimeMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Time or duration: Interval between events. One of the seven SI base quantities. Universal temporal measure. Common units include second (s), minute (min), hour (h), day (d), week (wk), year (a or yr), millisecond (ms), microsecond (µs), and nanosecond (ns).

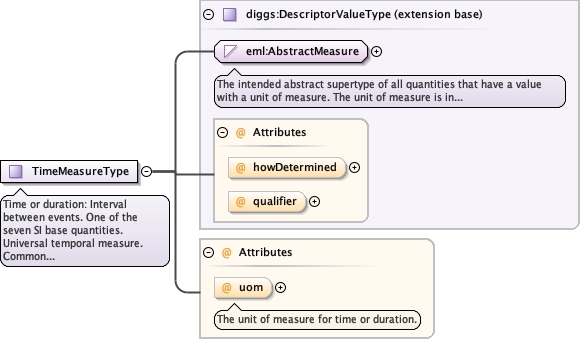

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Elements diggs:AbstractProgramBasisType/diggs:designWorkingLife, diggs:AbstractSamplingActivityType/diggs:mixingTime, diggs:AdvancementType/diggs:elapsedTime, diggs:BackPressureIncrementType/diggs:elapsedTime, diggs:CTConsolidationIncrementType/diggs:elapsedTime, diggs:ChiselingType/diggs:timeTaken, diggs:ClearanceConstraintType/diggs:minimumElapsedTime, diggs:CompressionIncrementType/diggs:elapsedTime, diggs:ConsolidationIncrementType/diggs:elapsedTime, diggs:DSConConsolidationIncrementType/diggs:elapsedTime, diggs:DelayEventType/diggs:delayDuration, diggs:DesignGeosyntheticLayerType/diggs:atDesignLife, diggs:DesignGeosyntheticLayerType/diggs:atTime, diggs:DesignGroutMixType/diggs:gelTimeDesign, diggs:DesignGroutMixType/diggs:marshFunnelTimeDesign, diggs:DesignMeasurementType/diggs:duration, diggs:DesignSampleType/diggs:mixingTime, diggs:DirectShearTestIncrementType/diggs:elapsedTime, diggs:FlowReadingType/diggs:time, diggs:GroutSpecimenType/diggs:ageAtTest, diggs:GroutSpecimenType/diggs:curingTime, diggs:GroutingTimeSeriesType/diggs:totalElapsedTime, diggs:HeatingCycleParametersType/diggs:heatingDuration, diggs:HydrometerType/diggs:dispersionDuration, diggs:InjectionTimeSeriesType/diggs:totalElapsedTime, diggs:LabThermalConductivityTestType/diggs:heatingDuration, diggs:LinkedWSReadingType/diggs:elapsedTime, diggs:LoadTestIncrementType/diggs:holdDuration, diggs:LossOnIgnitionTestType/diggs:dryingTime, diggs:LossOnIgnitionTestType/diggs:ignitionTime, diggs:LowStrainIntegrityTestType/diggs:recordLength, diggs:LugeonStepType/diggs:totalElapsedTime, diggs:PDARecordType/diggs:totalElapsedTime, diggs:PileDrivingRecordType/diggs:totalElapsedTime, diggs:RapidLoadTestType/diggs:pulseDuration, diggs:SedimentationType/diggs:elapsedTime, diggs:ShearingIncrementType/diggs:elapsedTime, diggs:SwellOrCollapseMeasurementType/diggs:elapsedTime, diggs:TensileStrengthType/diggs:testDuration, diggs:ThermalIntegrityProfilingType/diggs:cureTimeAtMeasurement, diggs:ThermalProbeReadingType/diggs:elapsedTime, diggs:TimeIntervalType/diggs:duration, diggs:TorqueIncrementType/diggs:elapsedTime, diggs:TrialGroutBatchType/diggs:deliveryToPlacementTime, diggs:TriaxialTestConsolidationStageType/diggs:t50, diggs:UnconfinedCompressiveStrengthTestType/diggs:testDuration, diggs:VaneTestMeasurementDataType/diggs:timeToSoilFailure, diggs:ViscosityReadingType/diggs:elapsedTime, diggs:WaterContentTestType/diggs:dryingTime, diggs:WaterStrikeReadingType/diggs:elapsedTime, diggs_geo:BackPressureIncrementType/diggs_geo:elapsedTime, diggs_geo:CompressionIncrementType/diggs_geo:elapsedTime, diggs_geo:ConsolidationIncrementType/diggs_geo:elapsedTime, diggs_geo:DSConConsoiidationIncrementType/diggs_geo:elapsedTime, diggs_geo:DirectShearTestIncrementType/diggs_geo:elapsedTime, diggs_geo:HeatingCycleParametersType/diggs_geo:heatingDuration, diggs_geo:HydrometerType/diggs_geo:dispersionDuration, diggs_geo:LossOnIgnitionTestType/diggs_geo:dryingTime, diggs_geo:LossOnIgnitionTestType/diggs_geo:ignitionTime, diggs_geo:SedimentationType/diggs_geo:elapsedTime, diggs_geo:ShearingIncrementType/diggs_geo:elapsedTime, diggs_geo:TorqueIncrementType/diggs_geo:elapsedTime, diggs_geo:TriaxialTestConsolidationStageType/diggs_geo:t50, diggs_geo:UnconfinedCompressiveStrengthTestType/diggs_geo:testDuration, diggs_geo:VaneTestMeasurementDataType/diggs_geo:timeToSoilFailure, diggs_geo:WaterContentTestType/diggs_geo:dryingTime
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:TimeUomEnumType optional
The unit of measure for time or duration.
Source

<complexType name="TimeMeasureType">
  <annotation>
    <documentation>Time or duration: Interval between events. One of the seven SI base quantities. Universal temporal measure. Common units include second (s), minute (min), hour (h), day (d), week (wk), year (a or yr), millisecond (ms), microsecond (µs), and nanosecond (ns).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:TimeUomEnumType">
        <annotation>
          <documentation>The unit of measure for time or duration.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:TimeMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for time or duration.
Type diggs:TimeUomEnumType
Properties
content simple
Used by
Complex Type diggs:TimeMeasureType
Source

<attribute name="uom" type="diggs:TimeUomEnumType">
  <annotation>
    <documentation>The unit of measure for time or duration.</documentation>
  </annotation>
</attribute>
