Element diggs:LugeonStepType / diggs:lugeonStepNumber
Namespace http://diggsml.org/schemas/3
Annotations

The number of the step: 1 for the first step, 2 for the second, and
so on.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 1
Source

<element minOccurs="1" name="lugeonStepNumber" type="positiveInteger">
  <annotation>
    <documentation>The number of the step: 1 for the first step, 2 for the second, and so on.</documentation>
  </annotation>
</element>

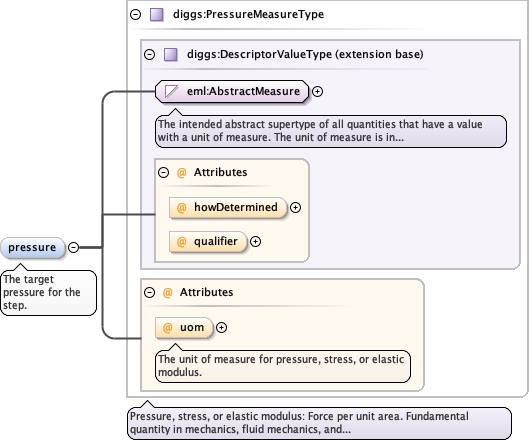

Element diggs:LugeonStepType / diggs:pressure
Namespace http://diggsml.org/schemas/3
Annotations

The target pressure for the step.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element name="pressure" type="diggs:PressureMeasureType" minOccurs="0">
  <annotation>
    <documentation>The target pressure for the step.</documentation>
  </annotation>
</element>

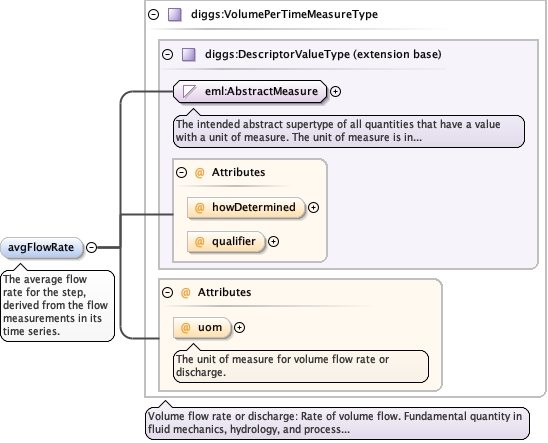

Element diggs:LugeonStepType / diggs:avgFlowRate
Namespace http://diggsml.org/schemas/3
Annotations

The average flow rate for the step, derived from the flow
measurements in its time series.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimeMeasureType.tmp#VolumePerTimeMeasureType
Type diggs:VolumePerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimeUomEnumType optional
The unit of measure for volume flow rate or discharge.
Source

<element minOccurs="0" name="avgFlowRate" type="diggs:VolumePerTimeMeasureType">
  <annotation>
    <documentation>The average flow rate for the step, derived from the flow measurements in its time series.</documentation>
  </annotation>
</element>

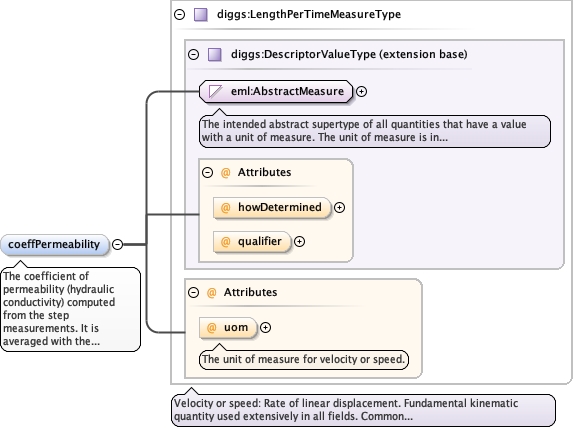

Element diggs:LugeonStepType / diggs:coeffPermeability
Namespace http://diggsml.org/schemas/3
Annotations

The coefficient of permeability (hydraulic conductivity) computed
from the step measurements. It is averaged with the other steps and
reported as one of the primary test results.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthPerTimeMeasureType.tmp#LengthPerTimeMeasureType
Type diggs:LengthPerTimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthPerTimeUomEnumType optional
The unit of measure for velocity or speed.
Source

<element minOccurs="0" name="coeffPermeability" type="diggs:LengthPerTimeMeasureType">
  <annotation>
    <documentation>The coefficient of permeability (hydraulic conductivity) computed from the step measurements. It is averaged with the other steps and reported as one of the primary test results.</documentation>
  </annotation>
</element>

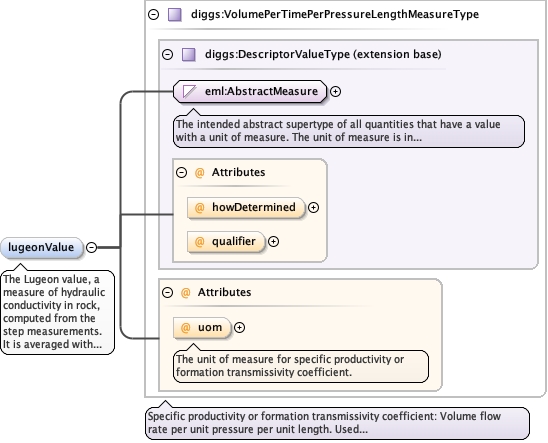

Element diggs:LugeonStepType / diggs:lugeonValue
Namespace http://diggsml.org/schemas/3
Annotations

The Lugeon value, a measure of hydraulic conductivity in rock,
computed from the step measurements. It is averaged with the other
steps and reported as one of the primary test results.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimePerPressureLengthMeasureType.tmp#VolumePerTimePerPressureLengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumePerTimePerPressureLengthMeasureType.tmp#VolumePerTimePerPressureLengthMeasureType
Type diggs:VolumePerTimePerPressureLengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumePerTimePerPressureLengthUomEnumType optional
The unit of measure for specific productivity or formation transmissivity coefficient.
Source

<element minOccurs="0" name="lugeonValue" type="diggs:VolumePerTimePerPressureLengthMeasureType">
  <annotation>
    <documentation>The Lugeon value, a measure of hydraulic conductivity in rock, computed from the step measurements. It is averaged with the other steps and reported as one of the primary test results.</documentation>
  </annotation>
</element>

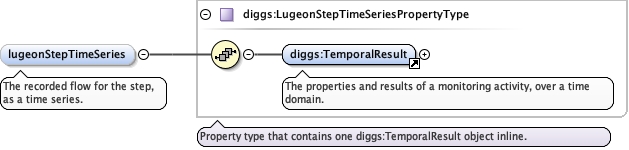

Element diggs:LugeonStepType / diggs:lugeonStepTimeSeries
Namespace http://diggsml.org/schemas/3
Annotations

The recorded flow for the step, as a time series.
Diagram
DiagramCore_xsd_Element_diggs_TemporalResult.tmp#TemporalResultExtProcedures_xsd_Complex_Type_diggs_LugeonStepTimeSeriesPropertyType.tmp#LugeonStepTimeSeriesPropertyType
Type diggs:LugeonStepTimeSeriesPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:TemporalResult
Instance

<diggs:lugeonStepTimeSeries xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TemporalResult gml:id="">{1,1}</diggs:TemporalResult>
</diggs:lugeonStepTimeSeries>
Source

<element name="lugeonStepTimeSeries" type="diggs:LugeonStepTimeSeriesPropertyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The recorded flow for the step, as a time series.</documentation>
  </annotation>
</element>

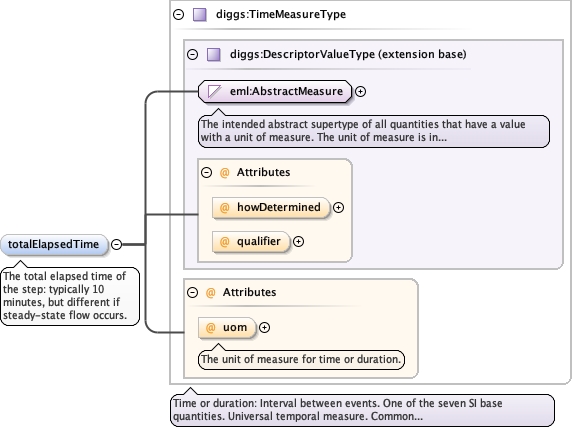

Element diggs:LugeonStepType / diggs:totalElapsedTime
Namespace http://diggsml.org/schemas/3
Annotations

The total elapsed time of the step: typically 10 minutes, but
different if steady-state flow occurs.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType
Type diggs:TimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:TimeUomEnumType optional
The unit of measure for time or duration.
Source

<element minOccurs="0" name="totalElapsedTime" type="diggs:TimeMeasureType">
  <annotation>
    <documentation>The total elapsed time of the step: typically 10 minutes, but different if steady-state flow occurs.</documentation>
  </annotation>
</element>

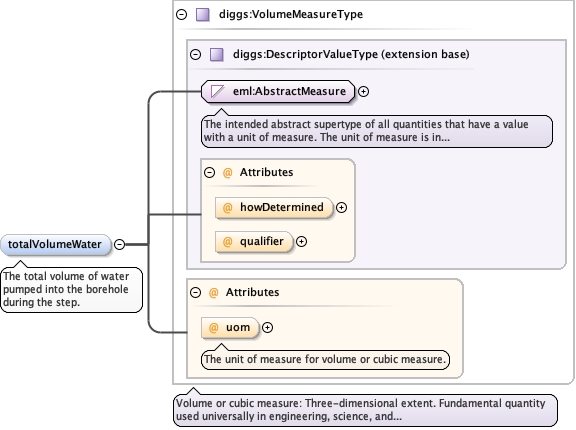

Element diggs:LugeonStepType / diggs:totalVolumeWater
Namespace http://diggsml.org/schemas/3
Annotations

The total volume of water pumped into the borehole during the step.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_VolumeMeasureType.tmp#VolumeMeasureType
Type diggs:VolumeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:VolumeUomEnumType optional
The unit of measure for volume or cubic measure.
Source

<element minOccurs="0" name="totalVolumeWater" type="diggs:VolumeMeasureType">
  <annotation>
    <documentation>The total volume of water pumped into the borehole during the step.</documentation>
  </annotation>
</element>

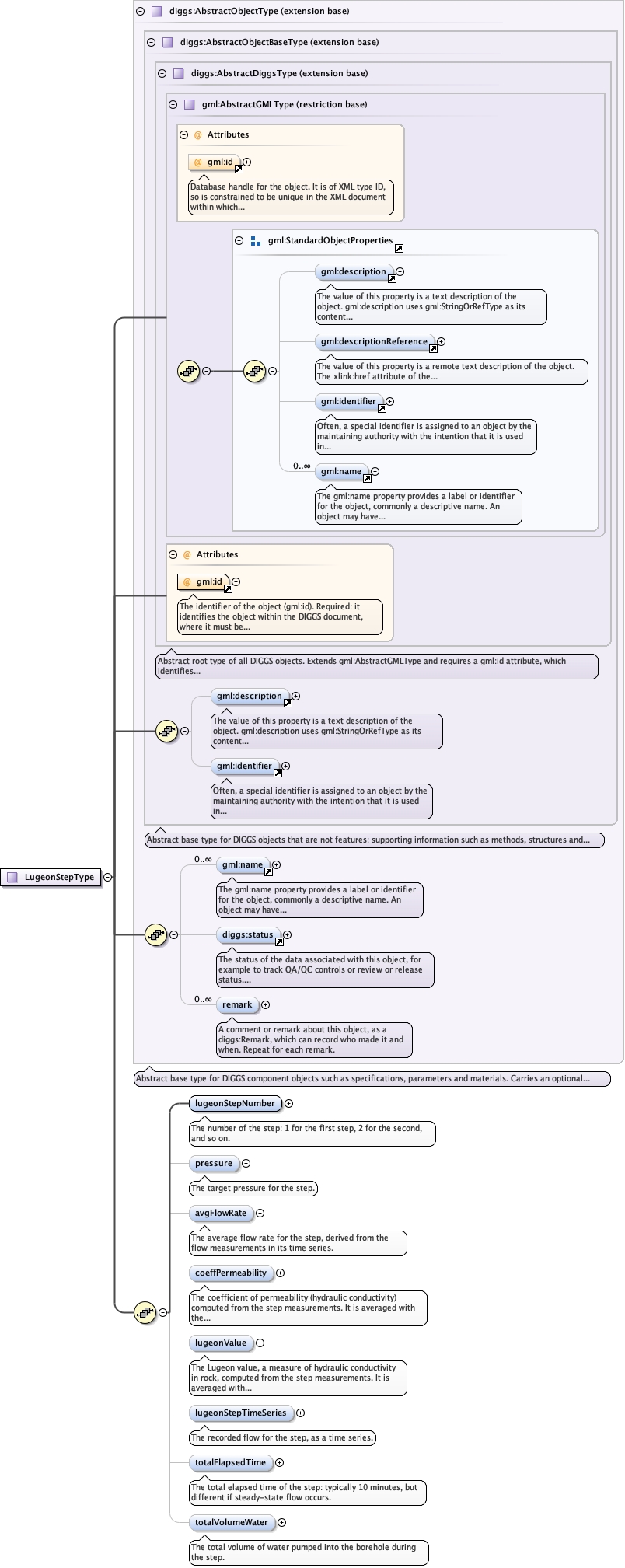

Complex Type diggs:LugeonStepType
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_lugeonStepNumberExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_pressureExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_avgFlowRateExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_coeffPermeabilityExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_lugeonValueExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_lugeonStepTimeSeriesExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_totalElapsedTimeExtProcedures_xsd_Complex_Type_diggs_LugeonStepType.tmp#LugeonStepType_totalVolumeWater
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:avgFlowRate, diggs:coeffPermeability, diggs:lugeonStepNumber, diggs:lugeonStepTimeSeries, diggs:lugeonValue, diggs:pressure, diggs:remark, diggs:status, diggs:totalElapsedTime, diggs:totalVolumeWater, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="LugeonStepType">
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="1" name="lugeonStepNumber" type="positiveInteger">
          <annotation>
            <documentation>The number of the step: 1 for the first step, 2 for the second, and so on.</documentation>
          </annotation>
        </element>
        <element name="pressure" type="diggs:PressureMeasureType" minOccurs="0">
          <annotation>
            <documentation>The target pressure for the step.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="avgFlowRate" type="diggs:VolumePerTimeMeasureType">
          <annotation>
            <documentation>The average flow rate for the step, derived from the flow measurements in its time series.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="coeffPermeability" type="diggs:LengthPerTimeMeasureType">
          <annotation>
            <documentation>The coefficient of permeability (hydraulic conductivity) computed from the step measurements. It is averaged with the other steps and reported as one of the primary test results.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lugeonValue" type="diggs:VolumePerTimePerPressureLengthMeasureType">
          <annotation>
            <documentation>The Lugeon value, a measure of hydraulic conductivity in rock, computed from the step measurements. It is averaged with the other steps and reported as one of the primary test results.</documentation>
          </annotation>
        </element>
        <element name="lugeonStepTimeSeries" type="diggs:LugeonStepTimeSeriesPropertyType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The recorded flow for the step, as a time series.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalElapsedTime" type="diggs:TimeMeasureType">
          <annotation>
            <documentation>The total elapsed time of the step: typically 10 minutes, but different if steady-state flow occurs.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalVolumeWater" type="diggs:VolumeMeasureType">
          <annotation>
            <documentation>The total volume of water pumped into the borehole during the step.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
