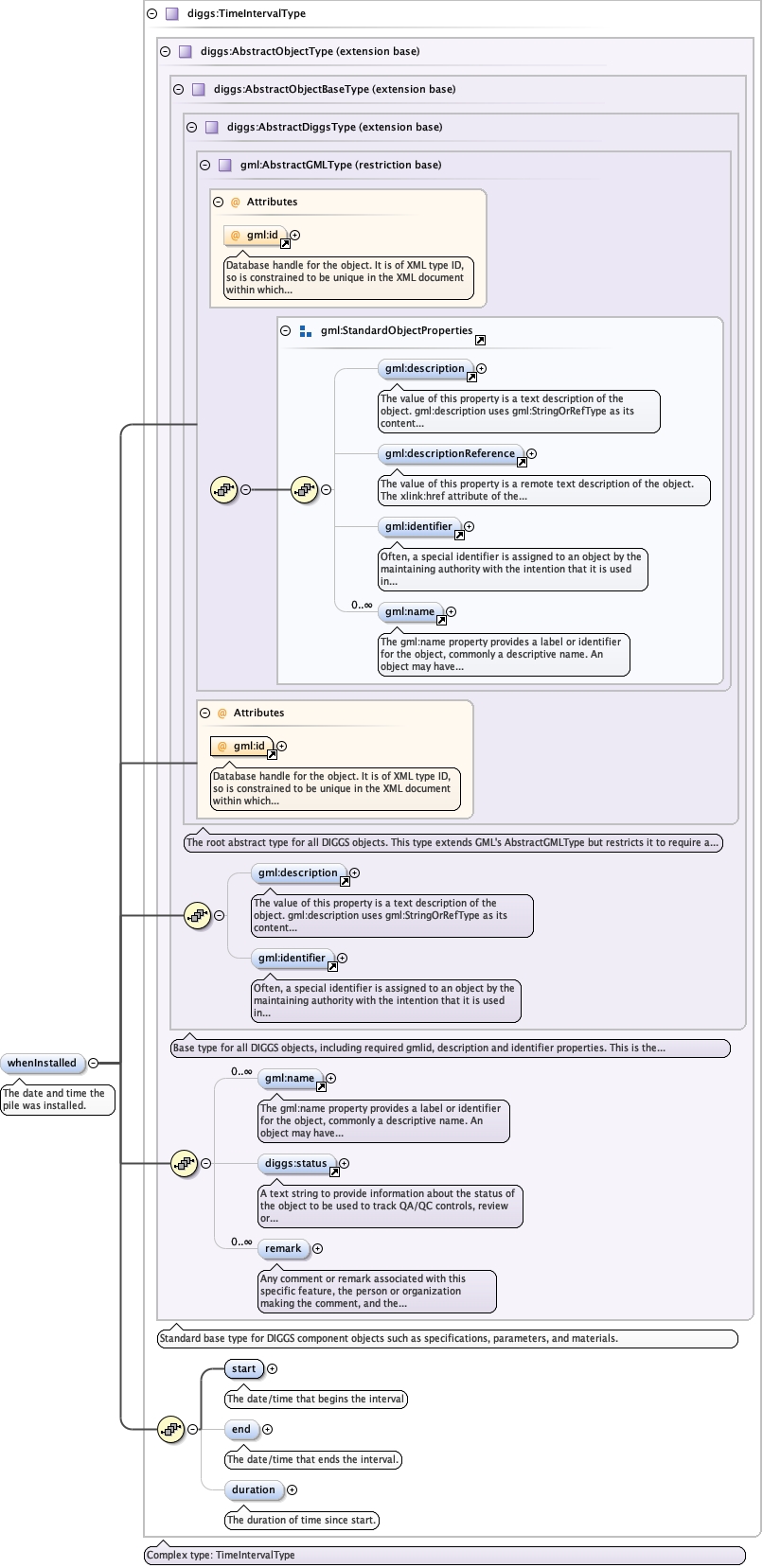

Element diggs:AbstractPileType / diggs:whenInstalled
Namespace http://diggsml.org/schemas/3
Annotations

The date and time the pile was installed.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCommon_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_startCommon_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_endCommon_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_durationCommon_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType
Type diggs:TimeIntervalType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:duration, diggs:end, diggs:remark, diggs:start, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:whenInstalled gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:start calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{1,1}</diggs:start>
  <diggs:end calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:end>
  <diggs:duration howDetermined="" qualifier="" uom="">{0,1}</diggs:duration>
</diggs:whenInstalled>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element minOccurs="0" name="whenInstalled" type="diggs:TimeIntervalType">
  <annotation>
    <documentation>The date and time the pile was installed.</documentation>
  </annotation>
</element>

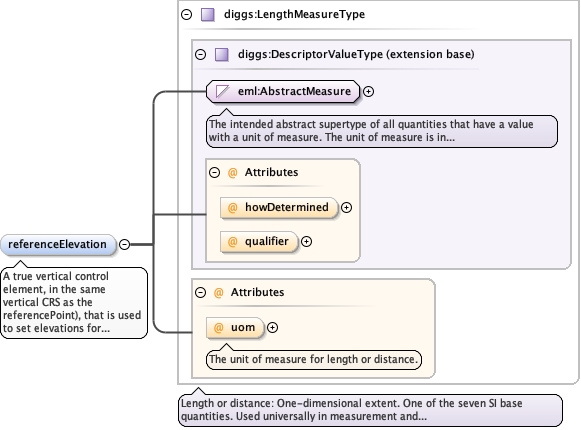

Element diggs:AbstractPileType / diggs:referenceElevation
Namespace http://diggsml.org/schemas/3
Annotations

A true vertical control element, in the same vertical CRS
as the referencePoint), that is used to set elevations for the
structural elements, and not the top of the piling. This property is
used when groundSurfaceElevation is not used as the reference
elevation.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="referenceElevation" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>A true vertical control element, in the same vertical CRS as the referencePoint), that is used to set elevations for the structural elements, and not the top of the piling. This property is used when groundSurfaceElevation is not used as the reference elevation.</documentation>
  </annotation>
</element>

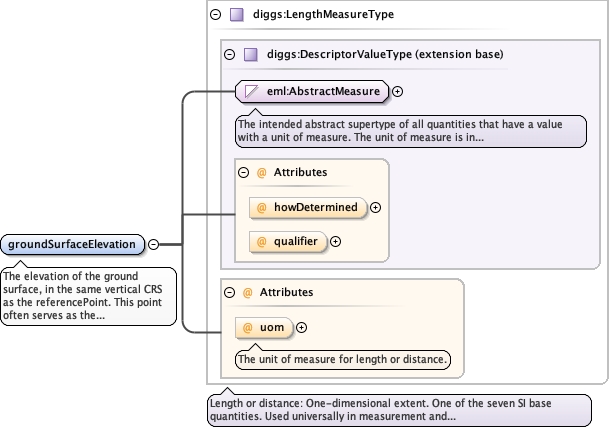

Element diggs:AbstractPileType / diggs:groundSurfaceElevation
Namespace http://diggsml.org/schemas/3
Annotations

The elevation of the ground surface, in the same vertical
CRS as the referencePoint. This point often serves as the pile's
reference elevation.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="1" name="groundSurfaceElevation" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The elevation of the ground surface, in the same vertical CRS as the referencePoint. This point often serves as the pile's reference elevation.</documentation>
  </annotation>
</element>

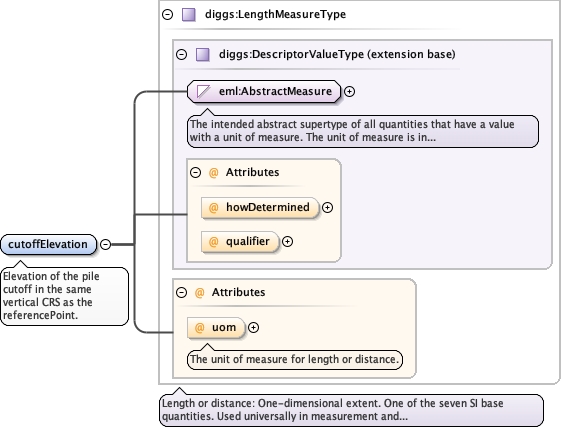

Element diggs:AbstractPileType / diggs:cutoffElevation
Namespace http://diggsml.org/schemas/3
Annotations

Elevation of the pile cutoff in the same vertical CRS as
the referencePoint.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="1" name="cutoffElevation" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Elevation of the pile cutoff in the same vertical CRS as the referencePoint.</documentation>
  </annotation>
</element>

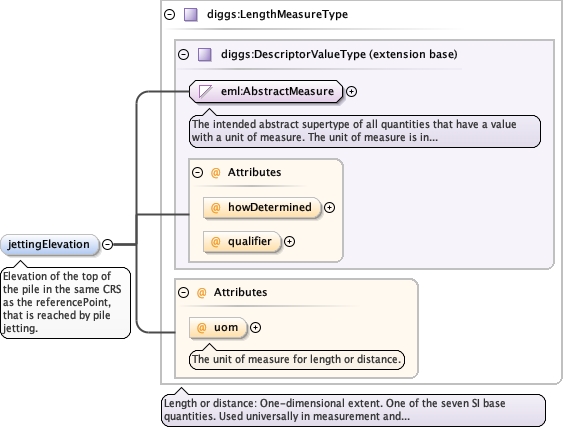

Element diggs:AbstractPileType / diggs:jettingElevation
Namespace http://diggsml.org/schemas/3
Annotations

Elevation of the top of the pile in the same CRS as the
referencePoint, that is reached by pile jetting.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="jettingElevation" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Elevation of the top of the pile in the same CRS as the referencePoint, that is reached by pile jetting.</documentation>
  </annotation>
</element>

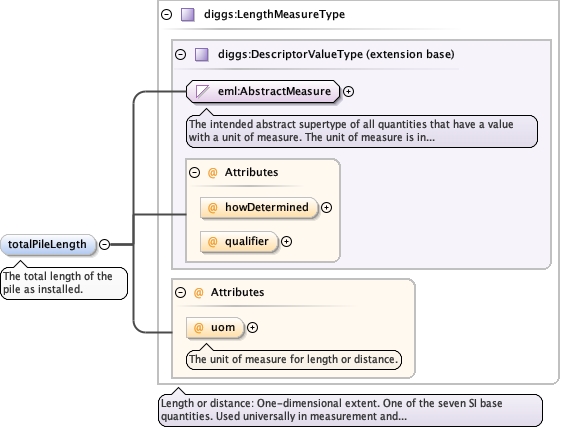

Element diggs:AbstractPileType / diggs:totalPileLength
Namespace http://diggsml.org/schemas/3
Annotations

The total length of the pile as
installed.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="totalPileLength" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The total length of the pile as installed.</documentation>
  </annotation>
</element>

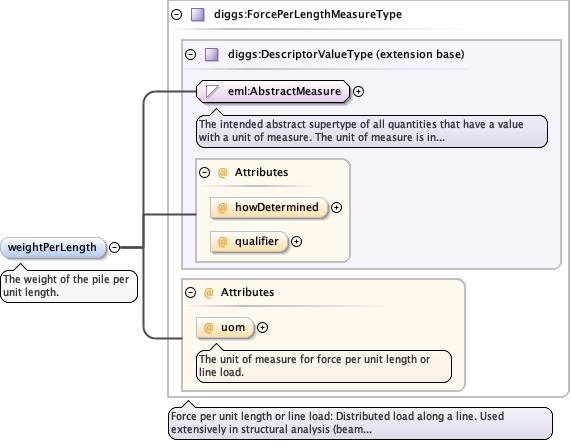

Element diggs:AbstractPileType / diggs:weightPerLength
Namespace http://diggsml.org/schemas/3
Annotations

The weight of the pile per unit length.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForcePerLengthMeasureType.tmp#ForcePerLengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForcePerLengthMeasureType.tmp#ForcePerLengthMeasureType
Type diggs:ForcePerLengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForcePerLengthUomEnumType optional
The unit of measure for force per unit length or line load.
Source

<element minOccurs="0" name="weightPerLength" type="diggs:ForcePerLengthMeasureType">
  <annotation>
    <documentation>The weight of the pile per unit length.</documentation>
  </annotation>
</element>

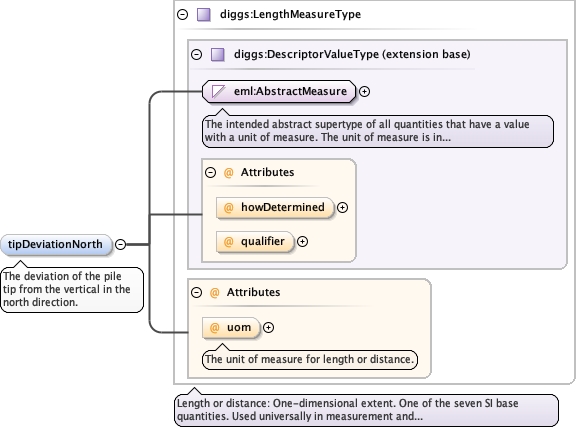

Element diggs:AbstractPileType / diggs:tipDeviationNorth
Namespace http://diggsml.org/schemas/3
Annotations

The deviation of the pile tip from the vertical in the
north direction.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="tipDeviationNorth" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The deviation of the pile tip from the vertical in the north direction.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:tipDeviationEast
Namespace http://diggsml.org/schemas/3
Annotations

The deviation of the pile tip from the vertical in the
east direction.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="tipDeviationEast" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The deviation of the pile tip from the vertical in the east direction.</documentation>
  </annotation>
</element>

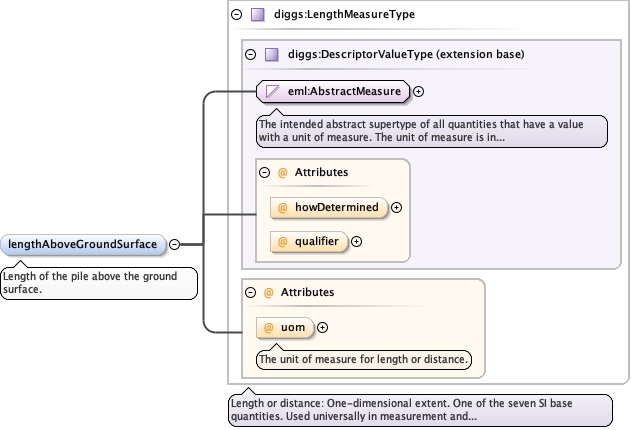

Element diggs:AbstractPileType / diggs:lengthAboveGroundSurface
Namespace http://diggsml.org/schemas/3
Annotations

Length of the pile above the ground
surface.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="lengthAboveGroundSurface" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Length of the pile above the ground surface.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:lengthBelowGroundSurface
Namespace http://diggsml.org/schemas/3
Annotations

Length of the pile below the ground
surface.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="lengthBelowGroundSurface" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Length of the pile below the ground surface.</documentation>
  </annotation>
</element>

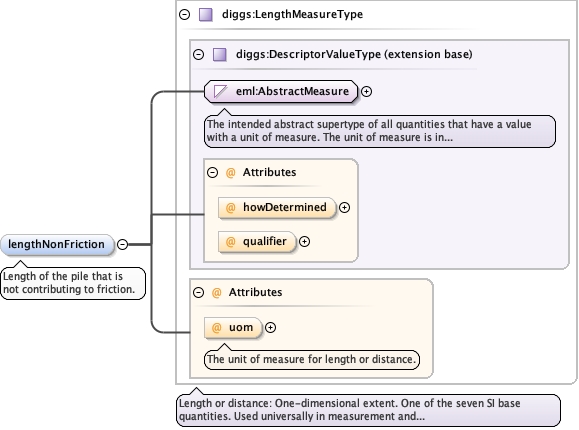

Element diggs:AbstractPileType / diggs:lengthNonFriction
Namespace http://diggsml.org/schemas/3
Annotations

Length of the pile that is not contributing to
friction.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="lengthNonFriction" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Length of the pile that is not contributing to friction.</documentation>
  </annotation>
</element>

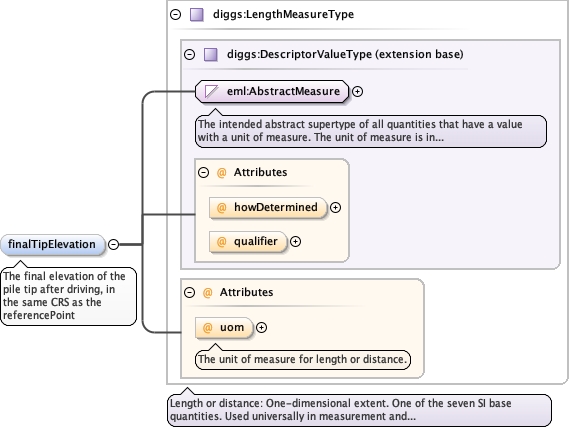

Element diggs:AbstractPileType / diggs:finalTipElevation
Namespace http://diggsml.org/schemas/3
Annotations

The final elevation of the pile tip after driving, in the
same CRS as the referencePoint
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element form="qualified" maxOccurs="1" minOccurs="0" name="finalTipElevation" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The final elevation of the pile tip after driving, in the same CRS as the referencePoint</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:taperInterval
Namespace http://diggsml.org/schemas/3
Annotations

A list of intervals along the length of the pile that
defines the pile diameter and other properties. The Taper object is
used to define the parameters of any kind of pile
taper.

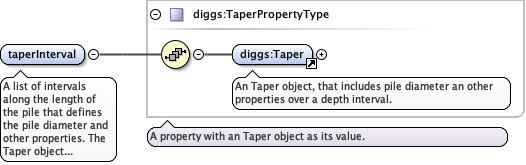

Diagram
DiagramDeepFoundation_xsd_Element_diggs_Taper.tmp#TaperDeepFoundation_xsd_Complex_Type_diggs_TaperPropertyType.tmp#TaperPropertyType
Type diggs:TaperPropertyType
Properties
content complex
minOccurs 1
maxOccurs unbounded
Model
Children diggs:Taper
Instance

<diggs:taperInterval xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Taper gml:id="">{1,1}</diggs:Taper>
</diggs:taperInterval>
Source

<element maxOccurs="unbounded" minOccurs="1" name="taperInterval" type="diggs:TaperPropertyType">
  <annotation>
    <documentation>A list of intervals along the length of the pile that defines the pile diameter and other properties. The Taper object is used to define the parameters of any kind of pile taper.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:productionPile
Namespace http://diggsml.org/schemas/3
Annotations

True indicates that this is a production pile, false or
not provided indicates it is not a production pile.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="productionPile" type="boolean">
  <annotation>
    <documentation>True indicates that this is a production pile, false or not provided indicates it is not a production pile.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:testPile
Namespace http://diggsml.org/schemas/3
Annotations

True indicates that this is a test pile, false or not
provided indicates it is not a test pile.

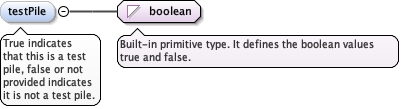

Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="testPile" type="boolean">
  <annotation>
    <documentation>True indicates that this is a test pile, false or not provided indicates it is not a test pile.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:tipType
Namespace http://diggsml.org/schemas/3
Annotations

The type of tip used on the pile, if applicable. Intended
to come from a controlled list of terms (eg. normal, heavy, conical,
etc.)

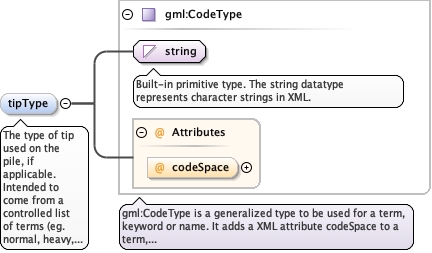

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="tipType" type="gml:CodeType">
  <annotation>
    <documentation>The type of tip used on the pile, if applicable. Intended to come from a controlled list of terms (eg. normal, heavy, conical, etc.)</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:nominalCapacity
Namespace http://diggsml.org/schemas/3
Annotations

The nominal capacity of the pile.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element minOccurs="0" name="nominalCapacity" type="diggs:ForceMeasureType">
  <annotation>
    <documentation>The nominal capacity of the pile.</documentation>
  </annotation>
</element>
Element diggs:AbstractPileType / diggs:allowableDrivingStress
Namespace http://diggsml.org/schemas/3
Annotations

The maximum stress to be imposed on the pile when
driving.

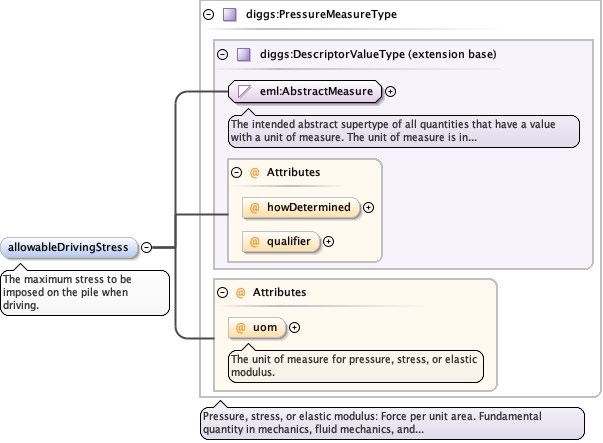

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PressureMeasureType.tmp#PressureMeasureType
Type diggs:PressureMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PressureUomEnumType optional
The unit of measure for pressure, stress, or elastic modulus.
Source

<element minOccurs="0" name="allowableDrivingStress" type="diggs:PressureMeasureType">
  <annotation>
    <documentation>The maximum stress to be imposed on the pile when driving.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractPileType
Namespace http://diggsml.org/schemas/3
Annotations

Abstract supertype for all pile types.

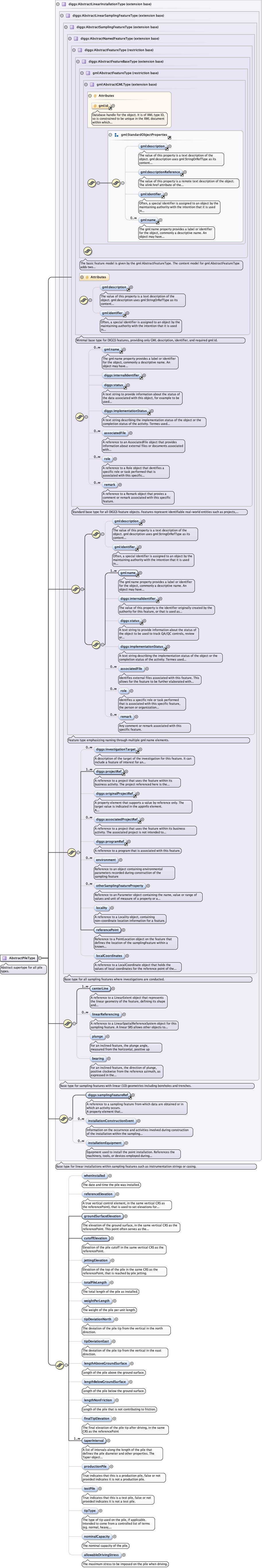

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefCommon_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefCommon_xsd_Element_diggs_programRef.tmp#programRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinatesAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureTypeCore_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_centerLineCore_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_linearReferencingCore_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_plungeCore_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureType_bearingCore_xsd_Complex_Type_diggs_AbstractLinearSamplingFeatureType.tmp#AbstractLinearSamplingFeatureTypeCommon_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefCore_xsd_Complex_Type_diggs_AbstractLinearInstallationType.tmp#AbstractLinearInstallationType_installationConstructionEventCore_xsd_Complex_Type_diggs_AbstractLinearInstallationType.tmp#AbstractLinearInstallationType_installationEquipmentCore_xsd_Complex_Type_diggs_AbstractLinearInstallationType.tmp#AbstractLinearInstallationTypeDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_whenInstalledDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_referenceElevationDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_groundSurfaceElevationDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_cutoffElevationDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_jettingElevationDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_totalPileLengthDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_weightPerLengthDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_tipDeviationNorthDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_tipDeviationEastDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_lengthAboveGroundSurfaceDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_lengthBelowGroundSurfaceDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_lengthNonFrictionDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_finalTipElevationDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_taperIntervalDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_productionPileDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_testPileDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_tipTypeDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_nominalCapacityDeepFoundation_xsd_Complex_Type_diggs_AbstractPileType.tmp#AbstractPileType_allowableDrivingStress
Type extension of diggs:AbstractLinearInstallationType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:allowableDrivingStress, diggs:associatedFile, diggs:associatedProjectRef, diggs:bearing, diggs:centerLine, diggs:cutoffElevation, diggs:environment, diggs:finalTipElevation, diggs:groundSurfaceElevation, diggs:implementationStatus, diggs:installationConstructionEvent, diggs:installationEquipment, diggs:internalIdentifier, diggs:investigationTarget, diggs:jettingElevation, diggs:lengthAboveGroundSurface, diggs:lengthBelowGroundSurface, diggs:lengthNonFriction, diggs:linearReferencing, diggs:localCoordinates, diggs:locality, diggs:nominalCapacity, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:plunge, diggs:productionPile, diggs:programRef, diggs:projectRef, diggs:referenceElevation, diggs:referencePoint, diggs:remark, diggs:role, diggs:samplingFeatureRef, diggs:status, diggs:taperInterval, diggs:testPile, diggs:tipDeviationEast, diggs:tipDeviationNorth, diggs:tipType, diggs:totalPileLength, diggs:weightPerLength, diggs:whenInstalled, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractPileType" abstract="true">
  <annotation>
    <documentation>Abstract supertype for all pile types.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractLinearInstallationType">
      <sequence>
        <element minOccurs="0" name="whenInstalled" type="diggs:TimeIntervalType">
          <annotation>
            <documentation>The date and time the pile was installed.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="referenceElevation" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>A true vertical control element, in the same vertical CRS as the referencePoint), that is used to set elevations for the structural elements, and not the top of the piling. This property is used when groundSurfaceElevation is not used as the reference elevation.</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="groundSurfaceElevation" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The elevation of the ground surface, in the same vertical CRS as the referencePoint. This point often serves as the pile's reference elevation.</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="cutoffElevation" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Elevation of the pile cutoff in the same vertical CRS as the referencePoint.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="jettingElevation" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Elevation of the top of the pile in the same CRS as the referencePoint, that is reached by pile jetting.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalPileLength" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The total length of the pile as installed.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="weightPerLength" type="diggs:ForcePerLengthMeasureType">
          <annotation>
            <documentation>The weight of the pile per unit length.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tipDeviationNorth" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The deviation of the pile tip from the vertical in the north direction.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tipDeviationEast" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The deviation of the pile tip from the vertical in the east direction.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lengthAboveGroundSurface" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Length of the pile above the ground surface.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lengthBelowGroundSurface" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Length of the pile below the ground surface.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lengthNonFriction" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Length of the pile that is not contributing to friction.</documentation>
          </annotation>
        </element>
        <element form="qualified" maxOccurs="1" minOccurs="0" name="finalTipElevation" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The final elevation of the pile tip after driving, in the same CRS as the referencePoint</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="1" name="taperInterval" type="diggs:TaperPropertyType">
          <annotation>
            <documentation>A list of intervals along the length of the pile that defines the pile diameter and other properties. The Taper object is used to define the parameters of any kind of pile taper.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="productionPile" type="boolean">
          <annotation>
            <documentation>True indicates that this is a production pile, false or not provided indicates it is not a production pile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="testPile" type="boolean">
          <annotation>
            <documentation>True indicates that this is a test pile, false or not provided indicates it is not a test pile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="tipType" type="gml:CodeType">
          <annotation>
            <documentation>The type of tip used on the pile, if applicable. Intended to come from a controlled list of terms (eg. normal, heavy, conical, etc.)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="nominalCapacity" type="diggs:ForceMeasureType">
          <annotation>
            <documentation>The nominal capacity of the pile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="allowableDrivingStress" type="diggs:PressureMeasureType">
          <annotation>
            <documentation>The maximum stress to be imposed on the pile when driving.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
