Element diggs:AbstractFeatureType / diggs:associatedFile
Namespace http://diggsml.org/schemas/3
Annotations

A reference to an AssociatedFile object that provides
information about external files or documents associated with this
feature. The target value is indicated in the appinfo
element.

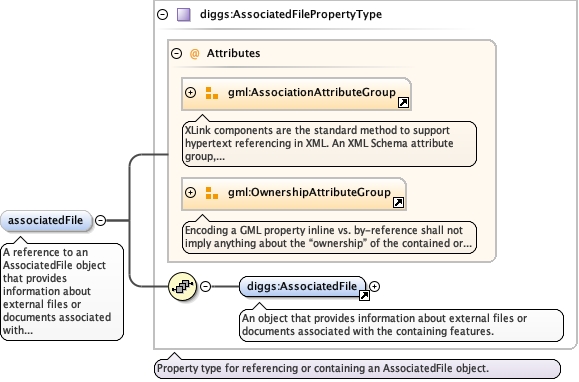

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_AssociatedFile.tmp#AssociatedFileCommon_xsd_Complex_Type_diggs_AssociatedFilePropertyType.tmp#AssociatedFilePropertyType
Type diggs:AssociatedFilePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:AssociatedFile
Children diggs:AssociatedFile
Instance

<diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AssociatedFile gml:id="">{1,1}</diggs:AssociatedFile>
</diggs:associatedFile>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="associatedFile" type="diggs:AssociatedFilePropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <appinfo source="urn:x-gml:targetElement">diggs:AssociatedFile</appinfo>
    <documentation>A reference to an AssociatedFile object that provides information about external files or documents associated with this feature. The target value is indicated in the appinfo element.</documentation>
  </annotation>
</element>
Element diggs:AbstractFeatureType / diggs:role
Namespace http://diggsml.org/schemas/3
Annotations

A reference to a Role object that dentifies a specific
role or task performed that is associated with this specific
feature, the person or organization that performed the role, and
associated time frame, if applicable..

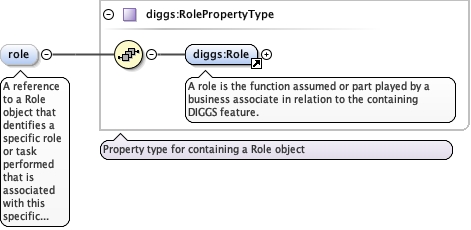

Diagram
DiagramCommon_xsd_Element_diggs_Role.tmp#http___diggsml.org_schemas_3_RoleCommon_xsd_Complex_Type_diggs_RolePropertyType.tmp#RolePropertyType
Type diggs:RolePropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:Role
Children diggs:Role
Instance

<diggs:role xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Role owns="false">{1,1}</diggs:Role>
</diggs:role>
Source

<element name="role" type="diggs:RolePropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A reference to a Role object that dentifies a specific role or task performed that is associated with this specific feature, the person or organization that performed the role, and associated time frame, if applicable..</documentation>
  </annotation>
</element>
Element diggs:AbstractFeatureType / diggs:remark
Namespace http://diggsml.org/schemas/3
Annotations

A reference to a Remark object that provies a comment or
remark associated with this specific feature.

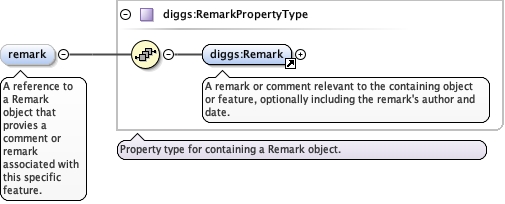

Diagram
DiagramCommon_xsd_Element_diggs_Remark.tmp#RemarkCommon_xsd_Complex_Type_diggs_RemarkPropertyType.tmp#RemarkPropertyType
Type diggs:RemarkPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
diggs:Remark
Children diggs:Remark
Instance

<diggs:remark xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Remark owns="false">{1,1}</diggs:Remark>
</diggs:remark>
Source

<element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>A reference to a Remark object that provies a comment or remark associated with this specific feature.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractFeatureType
Namespace http://diggsml.org/schemas/3
Annotations

Standard base type for all DIGGS feature objects. Features represent identifiable real-world entities such as projects, sampling features, samples, and tests.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remark
Type extension of diggs:AbstractFeatureBaseType
Type hierarchy
Properties
abstract true
Used by
Complex Types diggs:AbstractConstructionActivityType, diggs:AbstractEquipmentType, diggs:AbstractGroupType, diggs:AbstractMeasurementType, diggs:AbstractNamedFeatureType, diggs:AbstractObservationSystemType, diggs:AbstractProcedureType, diggs:AbstractProgramDesignType, diggs:AbstractProgramSpecificationType, diggs:AbstractProgramType, diggs:AbstractSamplingActivityType, diggs:AbstractSpecimenType, diggs:CalibrationType, diggs:ContractType
Model
gml:description{0,1} , gml:identifier{0,1} , gml:name* , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark*
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractFeatureType" abstract="true">
  <annotation>
    <documentation>Standard base type for all DIGGS feature objects. Features represent identifiable real-world entities such as projects, sampling features, samples, and tests.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractFeatureBaseType">
      <sequence>
        <element maxOccurs="unbounded" minOccurs="0" ref="gml:name"/>
        <element minOccurs="0" maxOccurs="1" ref="diggs:internalIdentifier">
          <annotation>
            <documentation/>
          </annotation>
        </element>
        <element minOccurs="0" ref="diggs:status"/>
        <element minOccurs="0" ref="diggs:implementationStatus"/>
        <element name="associatedFile" type="diggs:AssociatedFilePropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <appinfo source="urn:x-gml:targetElement">diggs:AssociatedFile</appinfo>
            <documentation>A reference to an AssociatedFile object that provides information about external files or documents associated with this feature. The target value is indicated in the appinfo element.</documentation>
          </annotation>
        </element>
        <element name="role" type="diggs:RolePropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A reference to a Role object that dentifies a specific role or task performed that is associated with this specific feature, the person or organization that performed the role, and associated time frame, if applicable..</documentation>
          </annotation>
        </element>
        <element name="remark" type="diggs:RemarkPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>A reference to a Remark object that provies a comment or remark associated with this specific feature.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
