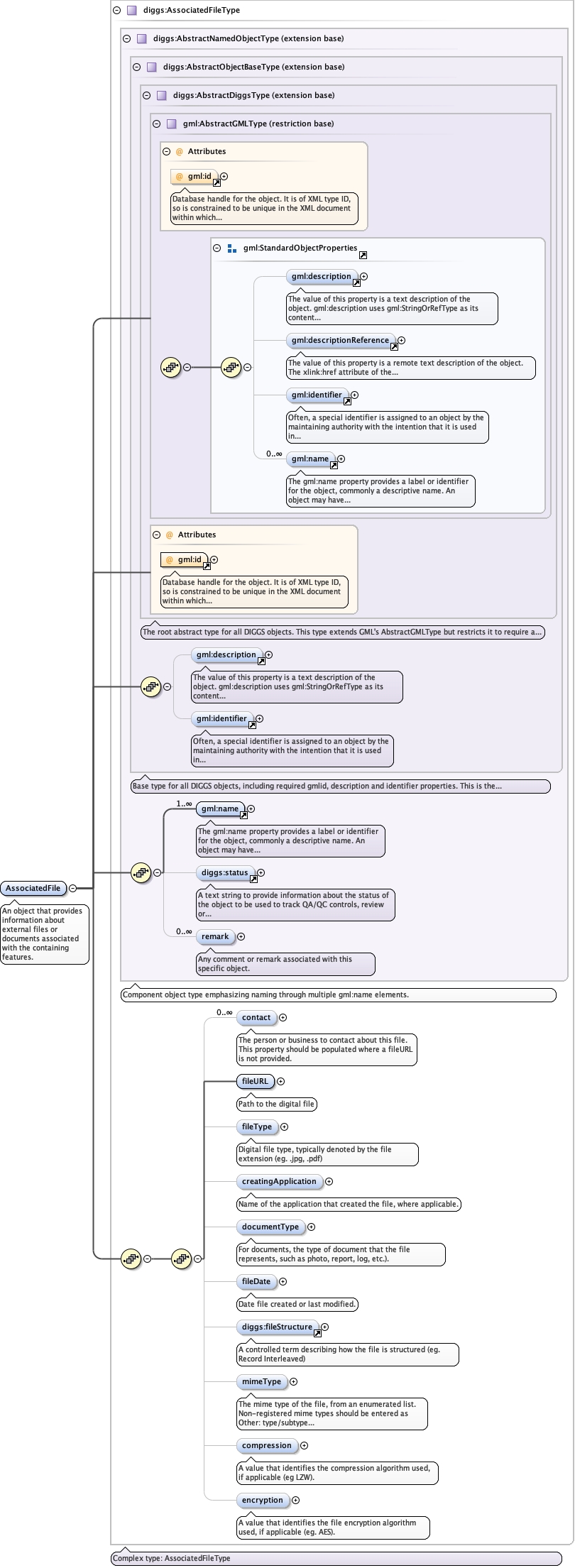

Schema documentation for component diggs:AssociatedFile

<diggs:AssociatedFile gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{1,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:contact xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:contact>
  <diggs:fileURL>{1,1}</diggs:fileURL>
  <diggs:fileType codeSpace="">{0,1}</diggs:fileType>
  <diggs:creatingApplication xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:creatingApplication>
  <diggs:documentType codeSpace="">{0,1}</diggs:documentType>
  <diggs:fileDate calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:fileDate>
  <diggs:fileStructure codeSpace="">{0,1}</diggs:fileStructure>
  <diggs:mimeType>{0,1}</diggs:mimeType>
  <diggs:compression>{0,1}</diggs:compression>
  <diggs:encryption>{0,1}</diggs:encryption>
</diggs:AssociatedFile>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="AssociatedFile" type="diggs:AssociatedFileType" abstract="false"> <annotation> <documentation>An object that provides information about external files or documents associated with the containing features.</documentation> </annotation> </element>
