Complex Type diggs:AbstractObjectBaseType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for all DIGGS objects, including required gmlid, description and identifier properties. This is the fundamental abstract type for objects (non-feature objects) in DIGGS, that represent supporting information like methods, structures and metadata, rather than primary geotechnical features.

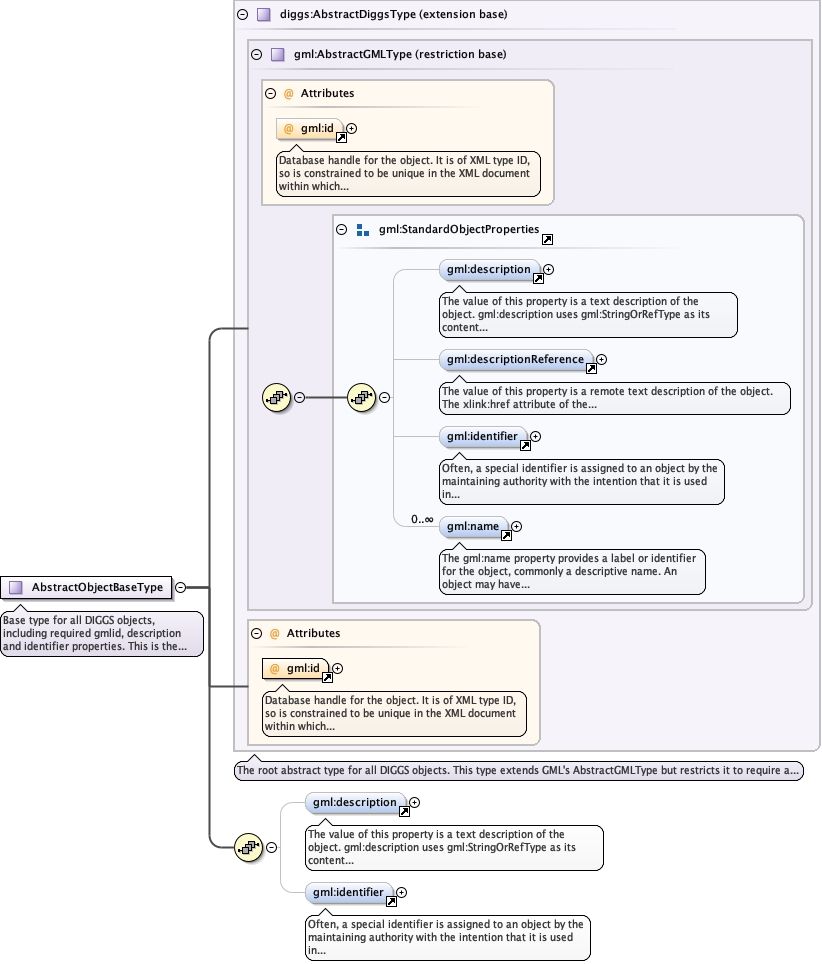

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifier
Type extension of diggs:AbstractDiggsType
Type hierarchy
Properties
abstract true
Used by
Model
Children gml:description, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractObjectBaseType" abstract="true">
  <annotation>
    <documentation>Base type for all DIGGS objects, including required gmlid, description and identifier properties. This is the fundamental abstract type for objects (non-feature objects) in DIGGS, that represent supporting information like methods, structures and metadata, rather than primary geotechnical features.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractDiggsType">
      <sequence>
        <element ref="gml:description" minOccurs="0"/>
        <element minOccurs="0" ref="gml:identifier"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
