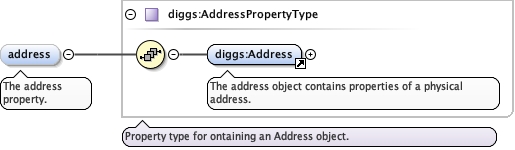

Element diggs:LocalityType / diggs:address
Namespace http://diggsml.org/schemas/3
Annotations

The address property.
Diagram
DiagramCommon_xsd_Element_diggs_Address.tmp#AddressCommon_xsd_Complex_Type_diggs_AddressPropertyType.tmp#AddressPropertyType
Type diggs:AddressPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:Address
Instance

<diggs:address xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Address gml:id="">{1,1}</diggs:Address>
</diggs:address>
Source

<element name="address" type="diggs:AddressPropertyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The address property.</documentation>
  </annotation>
</element>
Element diggs:LocalityType / diggs:district
Namespace http://diggsml.org/schemas/3
Annotations

Name or ID of a territory of land classified as a
District
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="district" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Name or ID of a territory of land classified as a District</documentation>
  </annotation>
</element>
Element diggs:LocalityType / diggs:division
Namespace http://diggsml.org/schemas/3
Annotations

Name or ID of a territory of land classified as a
Division
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="division" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Name or ID of a territory of land classified as a Division</documentation>
  </annotation>
</element>
Element diggs:LocalityType / diggs:lot
Namespace http://diggsml.org/schemas/3
Annotations

Name or ID of a territory of land classified as a Lot
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="lot" type="string">
  <annotation>
    <documentation>Name or ID of a territory of land classified as a Lot</documentation>
  </annotation>
</element>
Element diggs:LocalityType / diggs:parceI
Namespace http://diggsml.org/schemas/3
Annotations

Name or ID of a territory of land classified as a Parcel
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="parceI" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Name or ID of a territory of land classified as a Parcel</documentation>
  </annotation>
</element>

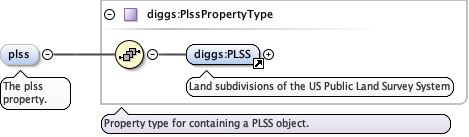

Element diggs:LocalityType / diggs:plss
Namespace http://diggsml.org/schemas/3
Annotations

The plss property.
Diagram
DiagramCommon_xsd_Element_diggs_PLSS.tmp#PLSSCommon_xsd_Complex_Type_diggs_PlssPropertyType.tmp#PlssPropertyType
Type diggs:PlssPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:PLSS
Instance

<diggs:plss xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PLSS gml:id="">{1,1}</diggs:PLSS>
</diggs:plss>
Source

<element name="plss" type="diggs:PlssPropertyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>The plss property.</documentation>
  </annotation>
</element>
Element diggs:LocalityType / diggs:quadrangle
Namespace http://diggsml.org/schemas/3
Annotations

Name or ID of a territory of land classified as a map
quadrange
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="quadrangle" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Name or ID of a territory of land classified as a map quadrange</documentation>
  </annotation>
</element>

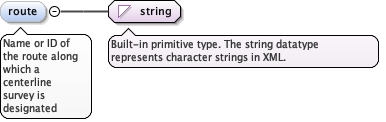

Element diggs:LocalityType / diggs:route
Namespace http://diggsml.org/schemas/3
Annotations

Name or ID of the route along which a centerline survey
is designated
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="route" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Name or ID of the route along which a centerline survey is designated</documentation>
  </annotation>
</element>

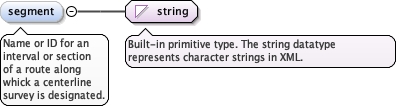

Element diggs:LocalityType / diggs:segment
Namespace http://diggsml.org/schemas/3
Annotations

Name or ID for an interval or section of a route along
whick a centerline survey is designated.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="segment" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Name or ID for an interval or section of a route along whick a centerline survey is designated.</documentation>
  </annotation>
</element>

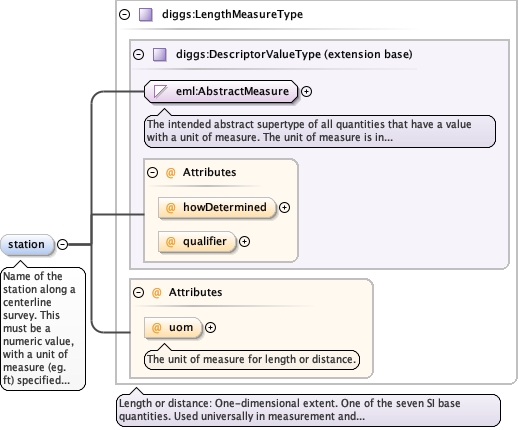

Element diggs:LocalityType / diggs:station
Namespace http://diggsml.org/schemas/3
Annotations

Name of the station along a centerline survey. This must
be a numeric value, with a unit of measure (eg. ft) specified in the
uom attribute. Systems that store station values as a string that
include a plus sign (+) need to strip out the + and specify the uom
for encoding to DIGGS.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="station" type="diggs:LengthMeasureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Name of the station along a centerline survey. This must be a numeric value, with a unit of measure (eg. ft) specified in the uom attribute. Systems that store station values as a string that include a plus sign (+) need to strip out the + and specify the uom for encoding to DIGGS.</documentation>
  </annotation>
</element>

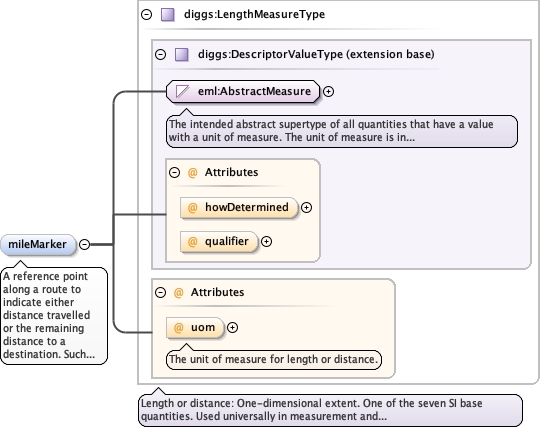

Element diggs:LocalityType / diggs:mileMarker
Namespace http://diggsml.org/schemas/3
Annotations

A reference point along a route to indicate either
distance travelled or the remaining distance to a destination. Such
references are also used by maintenance engineers and emergency
services to direct them to specific points where their presence is
required. This term is sometimes used to denote a location on a road
even if no physical sign is present. This is a numerical value a may
differ from a station id used for specific route
surveys.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="mileMarker" type="diggs:LengthMeasureType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A reference point along a route to indicate either distance travelled or the remaining distance to a destination. Such references are also used by maintenance engineers and emergency services to direct them to specific points where their presence is required. This term is sometimes used to denote a location on a road even if no physical sign is present. This is a numerical value a may differ from a station id used for specific route surveys.</documentation>
  </annotation>
</element>

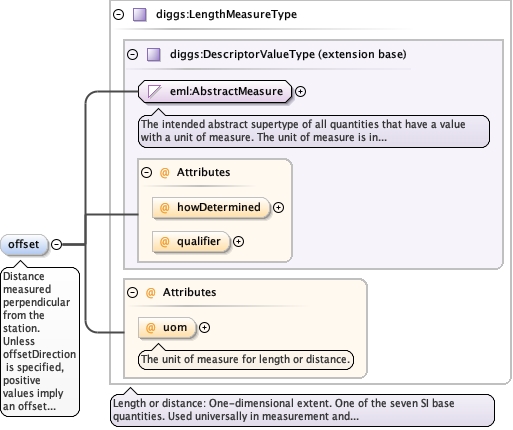

Element diggs:LocalityType / diggs:offset
Namespace http://diggsml.org/schemas/3
Annotations

Distance measured perpendicular from the station. Unless
offsetDirection is specified, positive values imply an offset to the
right when facing in the direction of increasing station value.
Negative values imply an offset to the left.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element name="offset" type="diggs:LengthMeasureType" minOccurs="0" maxOccurs="1" form="qualified">
  <annotation>
    <documentation>Distance measured perpendicular from the station. Unless offsetDirection is specified, positive values imply an offset to the right when facing in the direction of increasing station value. Negative values imply an offset to the left.</documentation>
  </annotation>
</element>

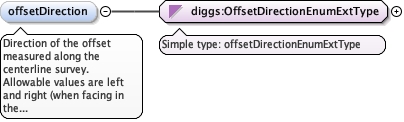

Element diggs:LocalityType / diggs:offsetDirection
Namespace http://diggsml.org/schemas/3
Annotations

Direction of the offset measured along the centerline
survey. Allowable values are left and right (when facing in the
direction of increasing station value.
Diagram
DiagramCommon_xsd_Simple_Type_diggs_OffsetDirectionEnumExtType.tmp#OffsetDirectionEnumExtType
Type diggs:OffsetDirectionEnumExtType
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="offsetDirection" type="diggs:OffsetDirectionEnumExtType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Direction of the offset measured along the centerline survey. Allowable values are left and right (when facing in the direction of increasing station value.</documentation>
  </annotation>
</element>
Element diggs:LocalityType / diggs:tract
Namespace http://diggsml.org/schemas/3
Annotations

Name or ID of a territory of land classified as a Tract
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="tract" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Name or ID of a territory of land classified as a Tract</documentation>
  </annotation>
</element>
Element diggs:LocalityType / diggs:watershed
Namespace http://diggsml.org/schemas/3
Annotations

Name or ID of a territory of land classified as a
Watershed
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element name="watershed" type="string" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Name or ID of a territory of land classified as a Watershed</documentation>
  </annotation>
</element>

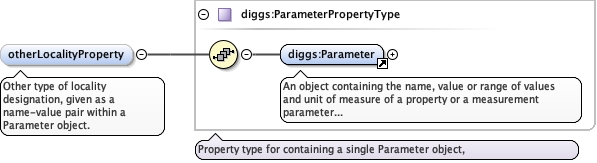

Element diggs:LocalityType / diggs:otherLocalityProperty
Namespace http://diggsml.org/schemas/3
Annotations

Other type of locality designation, given as a name-value
pair within a Parameter object.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:otherLocalityProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherLocalityProperty>
Source

<element name="otherLocalityProperty" type="diggs:ParameterPropertyType" minOccurs="0" maxOccurs="unbounded">
  <annotation>
    <documentation>Other type of locality designation, given as a name-value pair within a Parameter object.</documentation>
  </annotation>
</element>
Complex Type diggs:LocalityType
Namespace http://diggsml.org/schemas/3
Annotations

Complex type: LocalityType
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypeCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_addressCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_districtCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_divisionCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_lotCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_parceICommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_plssCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_quadrangleCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_routeCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_segmentCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_stationCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_mileMarkerCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_offsetCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_offsetDirectionCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_tractCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_watershedCommon_xsd_Complex_Type_diggs_LocalityType.tmp#LocalityType_otherLocalityProperty
Type extension of diggs:AbstractObjectBaseType
Type hierarchy
Used by
Element diggs:Locality
Model
Children diggs:address, diggs:district, diggs:division, diggs:lot, diggs:mileMarker, diggs:offset, diggs:offsetDirection, diggs:otherLocalityProperty, diggs:parceI, diggs:plss, diggs:quadrangle, diggs:route, diggs:segment, diggs:station, diggs:tract, diggs:watershed, gml:description, gml:identifier
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="LocalityType">
  <annotation>
    <documentation>Complex type: LocalityType</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectBaseType">
      <sequence>
        <element name="address" type="diggs:AddressPropertyType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The address property.</documentation>
          </annotation>
        </element>
        <element name="district" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Name or ID of a territory of land classified as a District</documentation>
          </annotation>
        </element>
        <element name="division" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Name or ID of a territory of land classified as a Division</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="lot" type="string">
          <annotation>
            <documentation>Name or ID of a territory of land classified as a Lot</documentation>
          </annotation>
        </element>
        <element name="parceI" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Name or ID of a territory of land classified as a Parcel</documentation>
          </annotation>
        </element>
        <element name="plss" type="diggs:PlssPropertyType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>The plss property.</documentation>
          </annotation>
        </element>
        <element name="quadrangle" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Name or ID of a territory of land classified as a map quadrange</documentation>
          </annotation>
        </element>
        <element name="route" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Name or ID of the route along which a centerline survey is designated</documentation>
          </annotation>
        </element>
        <element name="segment" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Name or ID for an interval or section of a route along whick a centerline survey is designated.</documentation>
          </annotation>
        </element>
        <element name="station" type="diggs:LengthMeasureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Name of the station along a centerline survey. This must be a numeric value, with a unit of measure (eg. ft) specified in the uom attribute. Systems that store station values as a string that include a plus sign (+) need to strip out the + and specify the uom for encoding to DIGGS.</documentation>
          </annotation>
        </element>
        <element name="mileMarker" type="diggs:LengthMeasureType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>A reference point along a route to indicate either distance travelled or the remaining distance to a destination. Such references are also used by maintenance engineers and emergency services to direct them to specific points where their presence is required. This term is sometimes used to denote a location on a road even if no physical sign is present. This is a numerical value a may differ from a station id used for specific route surveys.</documentation>
          </annotation>
        </element>
        <element name="offset" type="diggs:LengthMeasureType" minOccurs="0" maxOccurs="1" form="qualified">
          <annotation>
            <documentation>Distance measured perpendicular from the station. Unless offsetDirection is specified, positive values imply an offset to the right when facing in the direction of increasing station value. Negative values imply an offset to the left.</documentation>
          </annotation>
        </element>
        <element name="offsetDirection" type="diggs:OffsetDirectionEnumExtType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Direction of the offset measured along the centerline survey. Allowable values are left and right (when facing in the direction of increasing station value.</documentation>
          </annotation>
        </element>
        <element name="tract" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Name or ID of a territory of land classified as a Tract</documentation>
          </annotation>
        </element>
        <element name="watershed" type="string" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Name or ID of a territory of land classified as a Watershed</documentation>
          </annotation>
        </element>
        <element name="otherLocalityProperty" type="diggs:ParameterPropertyType" minOccurs="0" maxOccurs="unbounded">
          <annotation>
            <documentation>Other type of locality designation, given as a name-value pair within a Parameter object.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
