Element diggs:CalibrationType / diggs:calibrationData
Namespace http://diggsml.org/schemas/3
Annotations

Procedure and recorded data obtained during calibration.
This can be represented as text or as a reference to another object
or external file via an xlink:href attribute

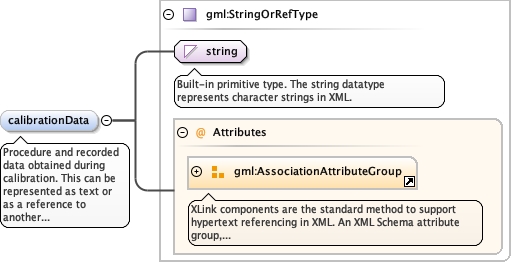

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Complex_Type_gml_StringOrRefType.tmp#StringOrRefType
Type gml:StringOrRefType
Properties
content complex
minOccurs 0
Attributes
QName Type Fixed Use Annotation
nilReason gml:NilReasonType optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="calibrationData" type="gml:StringOrRefType">
  <annotation>
    <documentation>Procedure and recorded data obtained during calibration. This can be represented as text or as a reference to another object or external file via an xlink:href attribute</documentation>
  </annotation>
</element>
Element diggs:CalibrationType / diggs:cqlibrationValues
Namespace http://diggsml.org/schemas/3
Annotations

Date calibration was perfomed

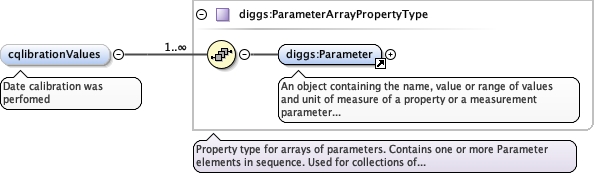

Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Complex_Type_diggs_ParameterArrayPropertyType.tmp#ParameterArrayPropertyType
Type diggs:ParameterArrayPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:Parameter
Instance

<diggs:cqlibrationValues xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:cqlibrationValues>
Source

<element name="cqlibrationValues" type="diggs:ParameterArrayPropertyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Date calibration was perfomed</documentation>
  </annotation>
</element>
Element diggs:CalibrationType / diggs:date
Namespace http://diggsml.org/schemas/3
Annotations

Date calibration was perfomed

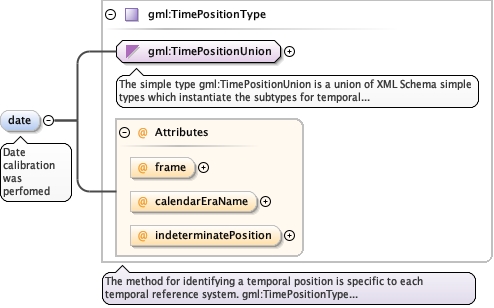

Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="date" type="gml:TimePositionType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>Date calibration was perfomed</documentation>
  </annotation>
</element>
Element diggs:CalibrationType / diggs:useSinceLastCalibration
Namespace http://diggsml.org/schemas/3
Annotations

Note about the amount of use of the equipment since the
last calibration.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="useSinceLastCalibration" type="string">
  <annotation>
    <documentation>Note about the amount of use of the equipment since the last calibration.</documentation>
  </annotation>
</element>
Complex Type diggs:CalibrationType
Namespace http://diggsml.org/schemas/3
Annotations

Type for instrument calibration information. Contains calibration data,
calibration values, date, and use since last calibration. Documents calibration
history and parameters for equipment and sensors.

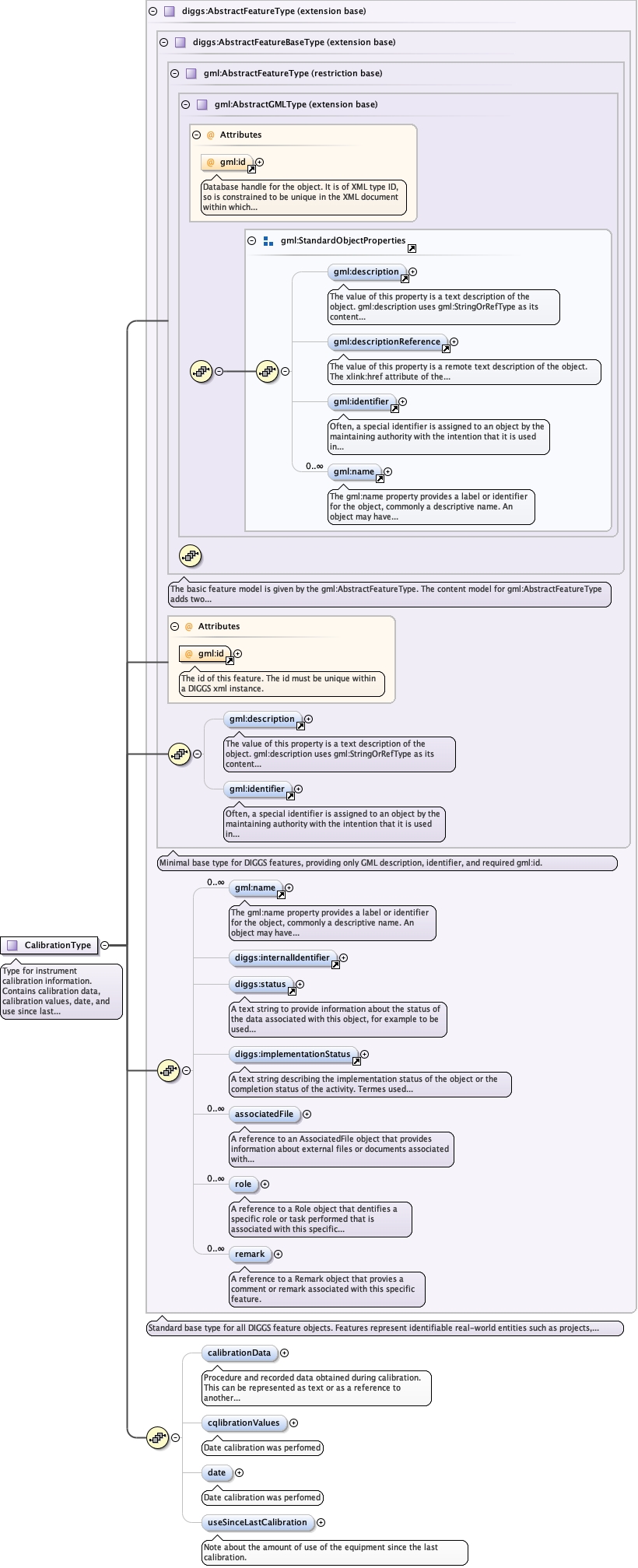

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_calibrationDataCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_cqlibrationValuesCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_dateCommon_xsd_Complex_Type_diggs_CalibrationType.tmp#CalibrationType_useSinceLastCalibration
Type extension of diggs:AbstractFeatureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:calibrationData, diggs:cqlibrationValues, diggs:date, diggs:implementationStatus, diggs:internalIdentifier, diggs:remark, diggs:role, diggs:status, diggs:useSinceLastCalibration, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="CalibrationType">
  <annotation>
    <documentation>Type for instrument calibration information. Contains calibration data, calibration values, date, and use since last calibration. Documents calibration history and parameters for equipment and sensors.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractFeatureType">
      <sequence>
        <element minOccurs="0" name="calibrationData" type="gml:StringOrRefType">
          <annotation>
            <documentation>Procedure and recorded data obtained during calibration. This can be represented as text or as a reference to another object or external file via an xlink:href attribute</documentation>
          </annotation>
        </element>
        <element name="cqlibrationValues" type="diggs:ParameterArrayPropertyType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Date calibration was perfomed</documentation>
          </annotation>
        </element>
        <element name="date" type="gml:TimePositionType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>Date calibration was perfomed</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="useSinceLastCalibration" type="string">
          <annotation>
            <documentation>Note about the amount of use of the equipment since the last calibration.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
