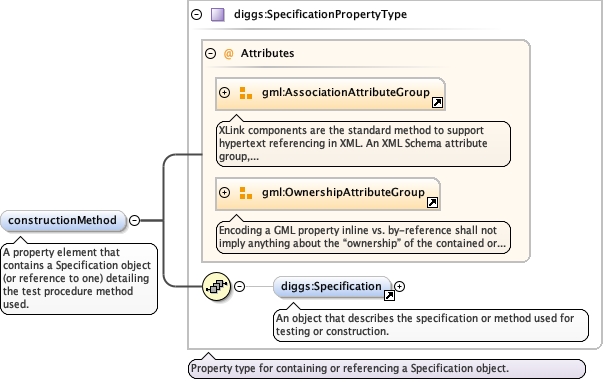

Element diggs:AbstractConstructionActivityType / diggs:constructionMethod
Namespace http://diggsml.org/schemas/3
Annotations

A property element that contains a Specification object
(or reference to one) detailing the test procedure method
used.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupCommon_xsd_Element_diggs_Specification.tmp#SpecificationCommon_xsd_Complex_Type_diggs_SpecificationPropertyType.tmp#SpecificationPropertyType
Type diggs:SpecificationPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Specification
Instance

<diggs:constructionMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Specification gml:id="">{0,1}</diggs:Specification>
</diggs:constructionMethod>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="constructionMethod" type="diggs:SpecificationPropertyType" maxOccurs="unbounded" minOccurs="0">
  <annotation>
    <documentation>A property element that contains a Specification object (or reference to one) detailing the test procedure method used.</documentation>
  </annotation>
</element>

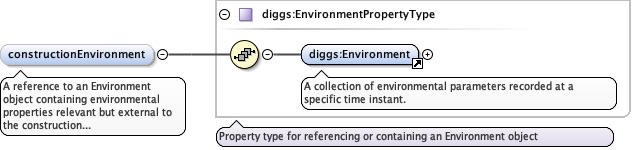

Element diggs:AbstractConstructionActivityType / diggs:constructionEnvironment
Namespace http://diggsml.org/schemas/3
Annotations

A reference to an Environment object containing
environmental properties relevant but external to the construction
activity.
Diagram
DiagramCommon_xsd_Element_diggs_Environment.tmp#EnvironmentCommon_xsd_Complex_Type_diggs_EnvironmentPropertyType.tmp#EnvironmentPropertyType
Type diggs:EnvironmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Environment
Instance

<diggs:constructionEnvironment xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Environment gml:id="">{1,1}</diggs:Environment>
</diggs:constructionEnvironment>
Source

<element name="constructionEnvironment" type="diggs:EnvironmentPropertyType" maxOccurs="unbounded" minOccurs="0">
  <annotation>
    <documentation>A reference to an Environment object containing environmental properties relevant but external to the construction activity.</documentation>
  </annotation>
</element>

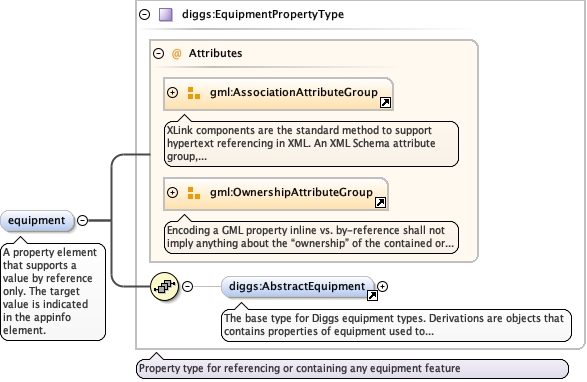

Element diggs:AbstractConstructionActivityType / diggs:equipment
Namespace http://diggsml.org/schemas/3
Annotations

A property element that supports a value by reference
only. The target value is indicated in the appinfo
element.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupAbstractTypes_xsd_Element_diggs_AbstractEquipment.tmp#AbstractEquipmentCommon_xsd_Complex_Type_diggs_EquipmentPropertyType.tmp#EquipmentPropertyType
Type diggs:EquipmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:AbstractEquipment
Instance

<diggs:equipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractEquipment gml:id="">{0,1}</diggs:AbstractEquipment>
</diggs:equipment>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="equipment" type="diggs:EquipmentPropertyType" maxOccurs="unbounded" minOccurs="0">
  <annotation>
    <appinfo>diggs:AbstractEquipment</appinfo>
    <documentation>A property element that supports a value by reference only. The target value is indicated in the appinfo element.</documentation>
  </annotation>
</element>

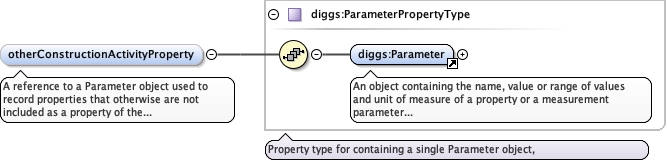

Element diggs:AbstractConstructionActivityType / diggs:otherConstructionActivityProperty
Namespace http://diggsml.org/schemas/3
Annotations

A reference to a Parameter object used to record
properties that otherwise are not included as a property of the
construction activity.
Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:otherConstructionActivityProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherConstructionActivityProperty>
Source

<element minOccurs="0" name="otherConstructionActivityProperty" type="diggs:ParameterPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>A reference to a Parameter object used to record properties that otherwise are not included as a property of the construction activity.</documentation>
  </annotation>
</element>

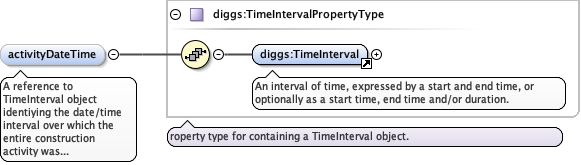

Element diggs:AbstractConstructionActivityType / diggs:activityDateTime
Namespace http://diggsml.org/schemas/3
Annotations

A reference to TimeInterval object identiying the
date/time interval over which the entire construction activity was
conducted.
Diagram
DiagramCommon_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalCommon_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:TimeInterval
Instance

<diggs:activityDateTime xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TimeInterval gml:id="">{1,1}</diggs:TimeInterval>
</diggs:activityDateTime>
Source

<element minOccurs="0" name="activityDateTime" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>A reference to TimeInterval object identiying the date/time interval over which the entire construction activity was conducted.</documentation>
  </annotation>
</element>

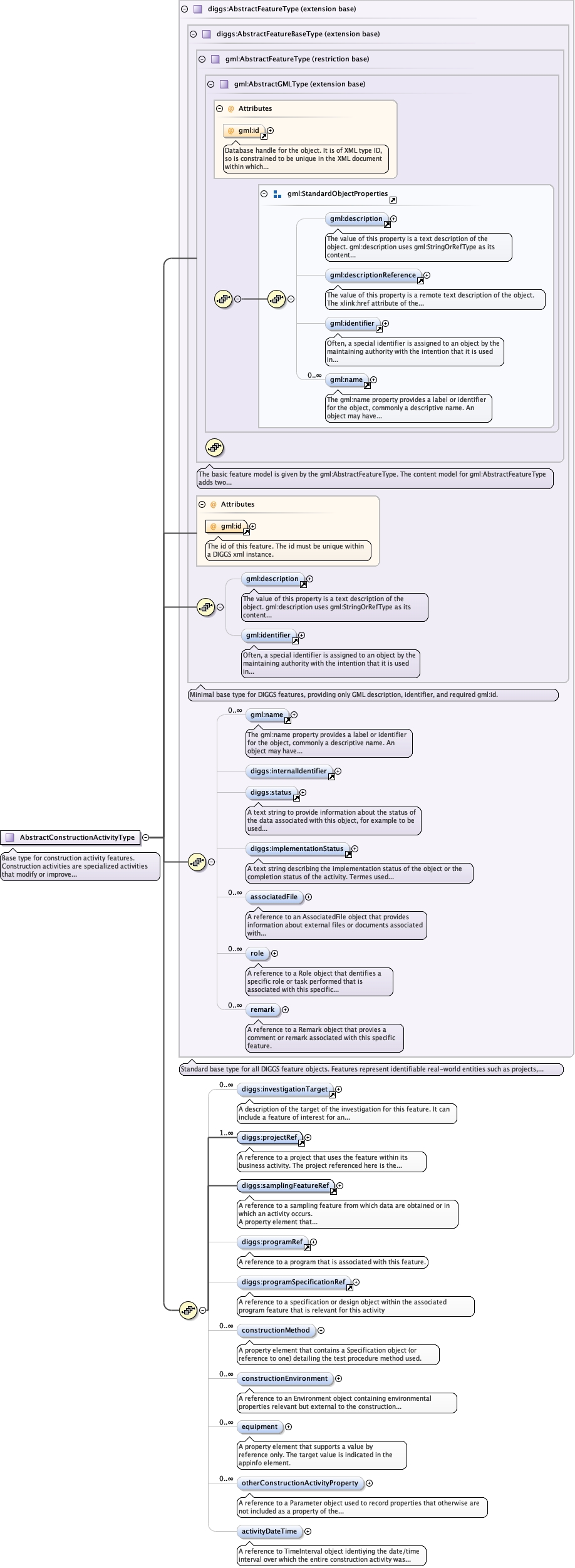

Complex Type diggs:AbstractConstructionActivityType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for construction activity features. Construction activities are specialized activities that modify or improve ground conditions.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefCommon_xsd_Element_diggs_programRef.tmp#programRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_constructionMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_constructionEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_equipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_otherConstructionActivityPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_activityDateTime
Type extension of diggs:AbstractFeatureType
Type hierarchy
Properties
abstract false
Used by
Model
Children diggs:activityDateTime, diggs:associatedFile, diggs:constructionEnvironment, diggs:constructionMethod, diggs:equipment, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:otherConstructionActivityProperty, diggs:programRef, diggs:programSpecificationRef, diggs:projectRef, diggs:remark, diggs:role, diggs:samplingFeatureRef, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractConstructionActivityType" abstract="false">
  <annotation>
    <documentation>Base type for construction activity features. Construction activities are specialized activities that modify or improve ground conditions.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractFeatureType">
      <sequence>
        <element ref="diggs:investigationTarget" maxOccurs="unbounded" minOccurs="0"/>
        <element ref="diggs:projectRef" maxOccurs="unbounded"/>
        <element minOccurs="1" ref="diggs:samplingFeatureRef" maxOccurs="1"/>
        <element minOccurs="0" ref="diggs:programRef" maxOccurs="1"/>
        <element minOccurs="0" ref="diggs:programSpecificationRef" maxOccurs="1"/>
        <element name="constructionMethod" type="diggs:SpecificationPropertyType" maxOccurs="unbounded" minOccurs="0">
          <annotation>
            <documentation>A property element that contains a Specification object (or reference to one) detailing the test procedure method used.</documentation>
          </annotation>
        </element>
        <element name="constructionEnvironment" type="diggs:EnvironmentPropertyType" maxOccurs="unbounded" minOccurs="0">
          <annotation>
            <documentation>A reference to an Environment object containing environmental properties relevant but external to the construction activity.</documentation>
          </annotation>
        </element>
        <element name="equipment" type="diggs:EquipmentPropertyType" maxOccurs="unbounded" minOccurs="0">
          <annotation>
            <appinfo>diggs:AbstractEquipment</appinfo>
            <documentation>A property element that supports a value by reference only. The target value is indicated in the appinfo element.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="otherConstructionActivityProperty" type="diggs:ParameterPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>A reference to a Parameter object used to record properties that otherwise are not included as a property of the construction activity.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="activityDateTime" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>A reference to TimeInterval object identiying the date/time interval over which the entire construction activity was conducted.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
