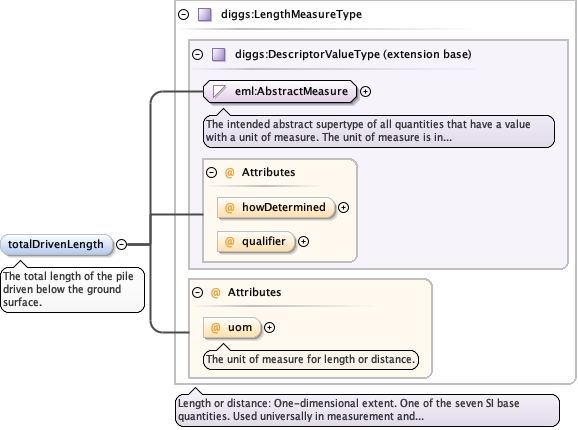

Element diggs:PileDrivingActivityType / diggs:totalDrivenLength
Namespace http://diggsml.org/schemas/3
Annotations

The total length of the pile driven below the ground
surface.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="totalDrivenLength" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The total length of the pile driven below the ground surface.</documentation>
  </annotation>
</element>

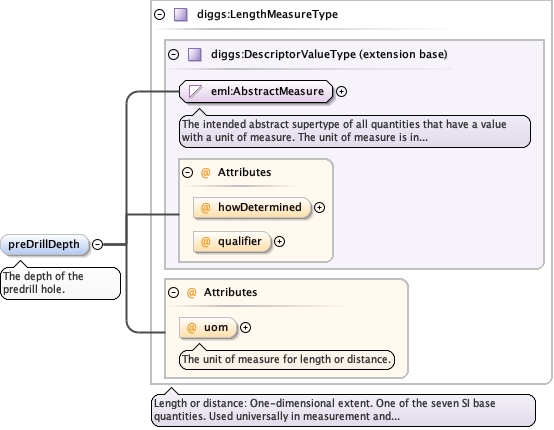

Element diggs:PileDrivingActivityType / diggs:preDrillDepth
Namespace http://diggsml.org/schemas/3
Annotations

The depth of the predrill hole.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="preDrillDepth" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The depth of the predrill hole.</documentation>
  </annotation>
</element>

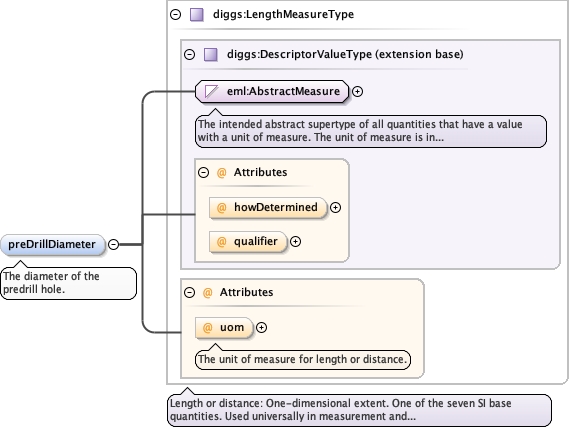

Element diggs:PileDrivingActivityType / diggs:preDrillDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The diameter of the predrill hole.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="preDrillDiameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The diameter of the predrill hole.</documentation>
  </annotation>
</element>
Element diggs:PileDrivingActivityType / diggs:plumbCheck
Namespace http://diggsml.org/schemas/3
Annotations

True indicates that a plumb check (verticality check) was
performed, false or not provided indicates that it was not
performed.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="plumbCheck" type="boolean">
  <annotation>
    <documentation>True indicates that a plumb check (verticality check) was performed, false or not provided indicates that it was not performed.</documentation>
  </annotation>
</element>

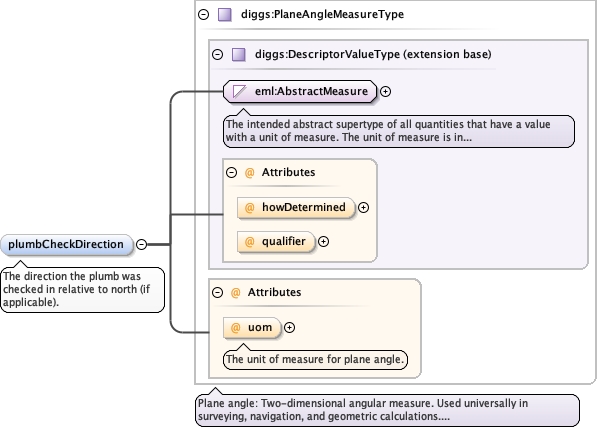

Element diggs:PileDrivingActivityType / diggs:plumbCheckDirection
Namespace http://diggsml.org/schemas/3
Annotations

The direction the plumb was checked in relative to north
(if applicable).
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType
Type diggs:PlaneAngleMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element minOccurs="0" name="plumbCheckDirection" type="diggs:PlaneAngleMeasureType">
  <annotation>
    <documentation>The direction the plumb was checked in relative to north (if applicable).</documentation>
  </annotation>
</element>

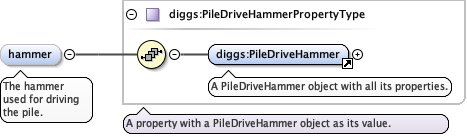

Element diggs:PileDrivingActivityType / diggs:hammer
Namespace http://diggsml.org/schemas/3
Annotations

The hammer used for driving the pile.
Diagram
DiagramDeepFoundation_xsd_Element_diggs_PileDriveHammer.tmp#PileDriveHammerDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerPropertyType.tmp#PileDriveHammerPropertyType
Type diggs:PileDriveHammerPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:PileDriveHammer
Instance

<diggs:hammer xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PileDriveHammer gml:id="">{1,1}</diggs:PileDriveHammer>
</diggs:hammer>
Source

<element minOccurs="0" name="hammer" type="diggs:PileDriveHammerPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>The hammer used for driving the pile.</documentation>
  </annotation>
</element>

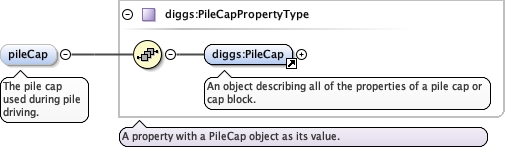

Element diggs:PileDrivingActivityType / diggs:pileCap
Namespace http://diggsml.org/schemas/3
Annotations

The pile cap used during pile driving.
Diagram
DiagramDeepFoundation_xsd_Element_diggs_PileCap.tmp#PileCapDeepFoundation_xsd_Complex_Type_diggs_PileCapPropertyType.tmp#PileCapPropertyType
Type diggs:PileCapPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:PileCap
Instance

<diggs:pileCap xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PileCap gml:id="">{1,1}</diggs:PileCap>
</diggs:pileCap>
Source

<element minOccurs="0" name="pileCap" type="diggs:PileCapPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>The pile cap used during pile driving.</documentation>
  </annotation>
</element>

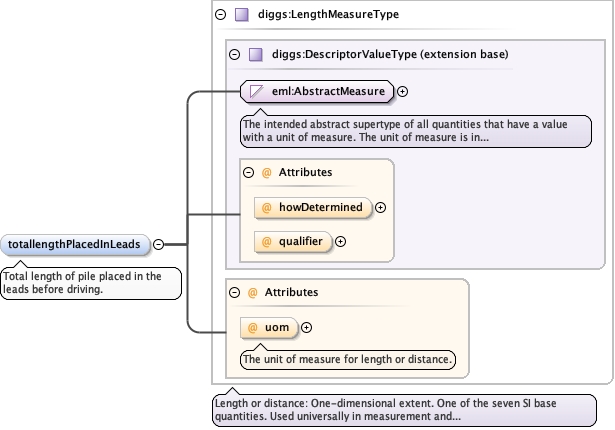

Element diggs:PileDrivingActivityType / diggs:totallengthPlacedInLeads
Namespace http://diggsml.org/schemas/3
Annotations

Total length of pile placed in the leads before
driving.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="totallengthPlacedInLeads" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Total length of pile placed in the leads before driving.</documentation>
  </annotation>
</element>

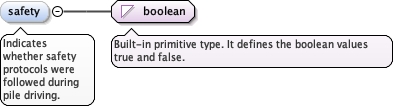

Element diggs:PileDrivingActivityType / diggs:safety
Namespace http://diggsml.org/schemas/3
Annotations

Indicates whether safety protocols were followed during
pile driving.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="safety" type="boolean">
  <annotation>
    <documentation>Indicates whether safety protocols were followed during pile driving.</documentation>
  </annotation>
</element>

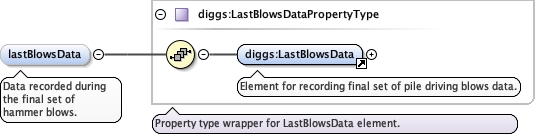

Element diggs:PileDrivingActivityType / diggs:lastBlowsData
Namespace http://diggsml.org/schemas/3
Annotations

Data recorded during the final set of hammer
blows.
Diagram
DiagramDeepFoundation_xsd_Element_diggs_LastBlowsData.tmp#LastBlowsDataDeepFoundation_xsd_Complex_Type_diggs_LastBlowsDataPropertyType.tmp#LastBlowsDataPropertyType
Type diggs:LastBlowsDataPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:LastBlowsData
Instance

<diggs:lastBlowsData xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LastBlowsData gml:id="">{1,1}</diggs:LastBlowsData>
</diggs:lastBlowsData>
Source

<element minOccurs="0" maxOccurs="unbounded" name="lastBlowsData" type="diggs:LastBlowsDataPropertyType">
  <annotation>
    <documentation>Data recorded during the final set of hammer blows.</documentation>
  </annotation>
</element>

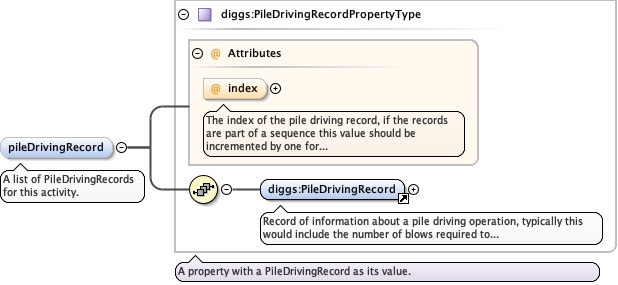

Element diggs:PileDrivingActivityType / diggs:pileDrivingRecord
Namespace http://diggsml.org/schemas/3
Annotations

A list of PileDrivingRecords for this
activity.
Diagram
DiagramDeepFoundation_xsd_Complex_Type_diggs_PileDrivingRecordPropertyType.tmp#PileDrivingRecordPropertyType_indexDeepFoundation_xsd_Element_diggs_PileDrivingRecord.tmp#PileDrivingRecordDeepFoundation_xsd_Complex_Type_diggs_PileDrivingRecordPropertyType.tmp#PileDrivingRecordPropertyType
Type diggs:PileDrivingRecordPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:PileDrivingRecord
Instance

<diggs:pileDrivingRecord index="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PileDrivingRecord gml:id="">{1,1}</diggs:PileDrivingRecord>
</diggs:pileDrivingRecord>
Attributes
QName Type Use Annotation
index positiveInteger optional
The index of the pile driving record, if the records are part of a
sequence this value should be incremented by one for each record in the
sequence.
Source

<element maxOccurs="unbounded" minOccurs="0" name="pileDrivingRecord" type="diggs:PileDrivingRecordPropertyType">
  <annotation>
    <documentation>A list of PileDrivingRecords for this activity.</documentation>
  </annotation>
</element>

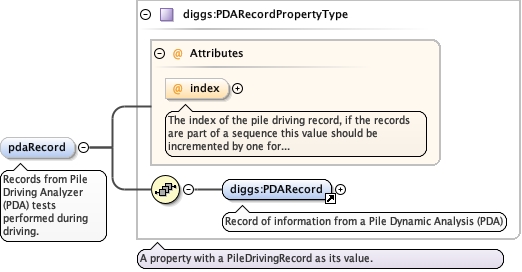

Element diggs:PileDrivingActivityType / diggs:pdaRecord
Namespace http://diggsml.org/schemas/3
Annotations

Records from Pile Driving Analyzer (PDA) tests performed
during driving.
Diagram
DiagramDeepFoundation_xsd_Complex_Type_diggs_PDARecordPropertyType.tmp#PDARecordPropertyType_indexDeepFoundation_xsd_Element_diggs_PDARecord.tmp#PDARecordDeepFoundation_xsd_Complex_Type_diggs_PDARecordPropertyType.tmp#PDARecordPropertyType
Type diggs:PDARecordPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:PDARecord
Instance

<diggs:pdaRecord index="" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PDARecord gml:id="">{1,1}</diggs:PDARecord>
</diggs:pdaRecord>
Attributes
QName Type Use Annotation
index positiveInteger optional
The index of the pile driving record, if the records are part of a
sequence this value should be incremented by one for each record in the
sequence.
Source

<element maxOccurs="unbounded" minOccurs="0" name="pdaRecord" type="diggs:PDARecordPropertyType">
  <annotation>
    <documentation>Records from Pile Driving Analyzer (PDA) tests performed during driving.</documentation>
  </annotation>
</element>

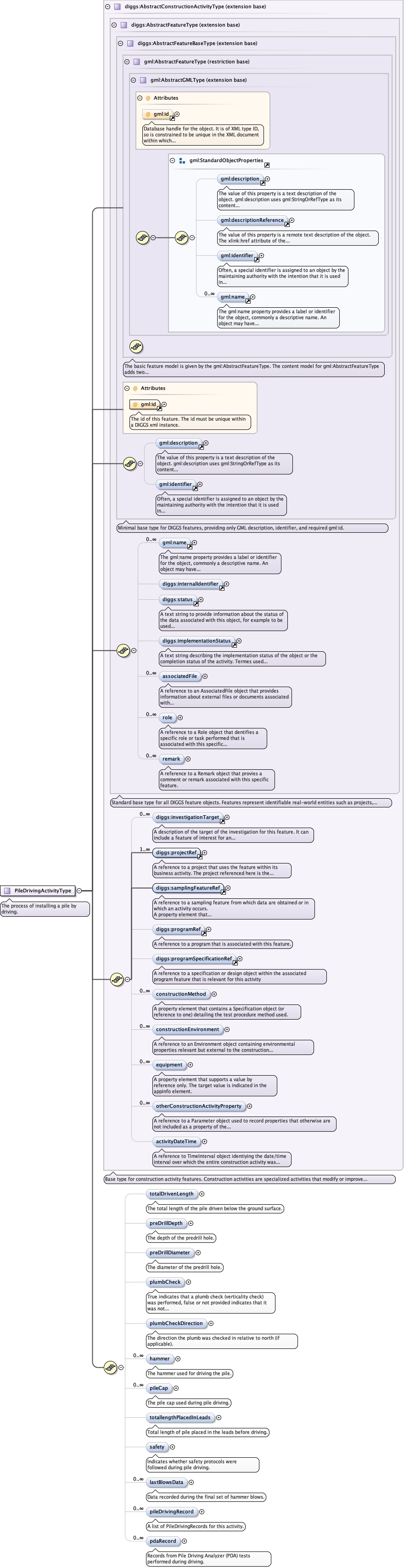

Complex Type diggs:PileDrivingActivityType
Namespace http://diggsml.org/schemas/3
Annotations

The process of installing a pile by driving.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_samplingFeatureRef.tmp#samplingFeatureRefCommon_xsd_Element_diggs_programRef.tmp#programRefCommon_xsd_Element_diggs_programSpecificationRef.tmp#programSpecificationRefAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_constructionMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_constructionEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_equipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_otherConstructionActivityPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityType_activityDateTimeAbstractTypes_xsd_Complex_Type_diggs_AbstractConstructionActivityType.tmp#AbstractConstructionActivityTypeDeepFoundation_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_totalDrivenLengthDeepFoundation_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_preDrillDepthDeepFoundation_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_preDrillDiameterDeepFoundation_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_plumbCheckDeepFoundation_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_plumbCheckDirectionDeepFoundation_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_hammerDeepFoundation_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_pileCapDeepFoundation_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_totallengthPlacedInLeadsDeepFoundation_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_safetyDeepFoundation_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_lastBlowsDataDeepFoundation_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_pileDrivingRecordDeepFoundation_xsd_Complex_Type_diggs_PileDrivingActivityType.tmp#PileDrivingActivityType_pdaRecord
Type extension of diggs:AbstractConstructionActivityType
Type hierarchy
Used by
Model
Children diggs:activityDateTime, diggs:associatedFile, diggs:constructionEnvironment, diggs:constructionMethod, diggs:equipment, diggs:hammer, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:lastBlowsData, diggs:otherConstructionActivityProperty, diggs:pdaRecord, diggs:pileCap, diggs:pileDrivingRecord, diggs:plumbCheck, diggs:plumbCheckDirection, diggs:preDrillDepth, diggs:preDrillDiameter, diggs:programRef, diggs:programSpecificationRef, diggs:projectRef, diggs:remark, diggs:role, diggs:safety, diggs:samplingFeatureRef, diggs:status, diggs:totalDrivenLength, diggs:totallengthPlacedInLeads, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="PileDrivingActivityType">
  <annotation>
    <documentation>The process of installing a pile by driving.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractConstructionActivityType">
      <sequence>
        <element minOccurs="0" name="totalDrivenLength" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The total length of the pile driven below the ground surface.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="preDrillDepth" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The depth of the predrill hole.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="preDrillDiameter" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The diameter of the predrill hole.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="plumbCheck" type="boolean">
          <annotation>
            <documentation>True indicates that a plumb check (verticality check) was performed, false or not provided indicates that it was not performed.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="plumbCheckDirection" type="diggs:PlaneAngleMeasureType">
          <annotation>
            <documentation>The direction the plumb was checked in relative to north (if applicable).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="hammer" type="diggs:PileDriveHammerPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>The hammer used for driving the pile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pileCap" type="diggs:PileCapPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>The pile cap used during pile driving.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totallengthPlacedInLeads" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Total length of pile placed in the leads before driving.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="safety" type="boolean">
          <annotation>
            <documentation>Indicates whether safety protocols were followed during pile driving.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" maxOccurs="unbounded" name="lastBlowsData" type="diggs:LastBlowsDataPropertyType">
          <annotation>
            <documentation>Data recorded during the final set of hammer blows.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="pileDrivingRecord" type="diggs:PileDrivingRecordPropertyType">
          <annotation>
            <documentation>A list of PileDrivingRecords for this activity.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="pdaRecord" type="diggs:PDARecordPropertyType">
          <annotation>
            <documentation>Records from Pile Driving Analyzer (PDA) tests performed during driving.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
