Complex Type diggs:PlaneAngleMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Plane angle: Two-dimensional angular measure. Used universally in surveying, navigation, and geometric calculations. Common units include degree (dega or °), radian (rad), minute ('), second (''), millirad (mrad), grad (gon), and revolution (rev).

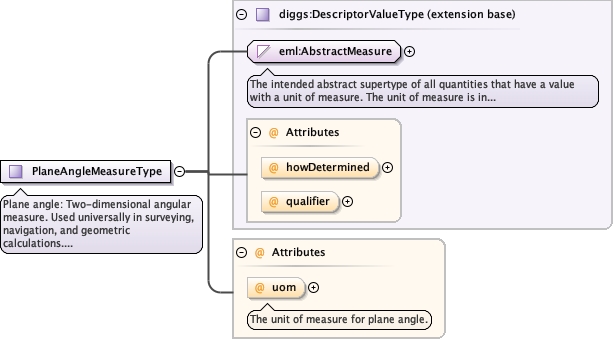

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uom
Type extension of diggs:DescriptorValueType
Type hierarchy
Used by
Elements diggs:BoundaryType/diggs:dipDirection, diggs:ComponentPropertiesType/diggs:dipDirection, diggs:DetectorType/diggs:measurementAxisBearing, diggs:DetectorType/diggs:measurementAxisInclination, diggs:FractureObservationType/diggs:dipDirection, diggs:GP_DetectorType/diggs:measurementAxisBearing, diggs:GP_DetectorType/diggs:measurementAxisInclination, diggs:InsituVaneTestType/diggs:vaneTaperAngleBottom, diggs:InsituVaneTestType/diggs:vaneTaperAngleTop, diggs:LithPropertiesType/diggs:dipDirection, diggs:LocalCartesianCRSType/diggs:rotationAngle, diggs:OffsetParametersType/diggs:bearing, diggs:OrientationType/diggs:strikeOrBearing, diggs:PileDrivingActivityType/diggs:plumbCheckDirection, diggs:PropertyType/diggs:measurementAxisBearing, diggs:PropertyType/diggs:measurementAxisInclination, diggs:StaticConePenetrationTestType/diggs:tipApexAngle, diggs:TriaxialTestShearStageType/diggs:slopeOfAngleOfFailureSurface, diggs:UnconfinedCompressiveStrengthTestType/diggs:slopeOfAngleOfFailureSurface, diggs:holeBearing, diggs:holePlunge, diggs_geo:InsituVaneTestType/diggs_geo:vaneTaperAngleBottom, diggs_geo:InsituVaneTestType/diggs_geo:vaneTaperAngleTop, diggs_geo:PorePressureDissipationPropType/diggs_geo:measurementAxisBearing, diggs_geo:PorePressureDissipationPropType/diggs_geo:measurementAxisInclination, diggs_geo:StaticConePenetrationTestType/diggs_geo:tipApexAngle, diggs_geo:TriaxialTestShearStageType/diggs_geo:slopeOfAngleOfFailureSurface, diggs_geo:UnconfinedCompressiveStrengthTestType/diggs_geo:slopeOfAngleOfFailureSurface
Complex Types diggs:BearingMeasureBaseType, diggs:DipMeasureType, diggs:PlungeMeasureType, diggs:RotationMeasureType
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<complexType name="PlaneAngleMeasureType">
  <annotation>
    <documentation>Plane angle: Two-dimensional angular measure. Used universally in surveying, navigation, and geometric calculations. Common units include degree (dega or °), radian (rad), minute ('), second (''), millirad (mrad), grad (gon), and revolution (rev).</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:DescriptorValueType">
      <attribute name="uom" type="diggs:PlaneAngleUomEnumType">
        <annotation>
          <documentation>The unit of measure for plane angle.</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:PlaneAngleMeasureType / @uom
Namespace No namespace
Annotations

The unit of measure for plane angle.
Type diggs:PlaneAngleUomEnumType
Properties
content simple
Used by
Source

<attribute name="uom" type="diggs:PlaneAngleUomEnumType">
  <annotation>
    <documentation>The unit of measure for plane angle.</documentation>
  </annotation>
</attribute>
