Complex Type diggs:DipMeasureType
Namespace http://diggsml.org/schemas/3
Annotations

Measurement type for dip angles with optional apparent dip flag. Extends
PlaneAngleMeasureType to support both true dip and apparent dip
angles.

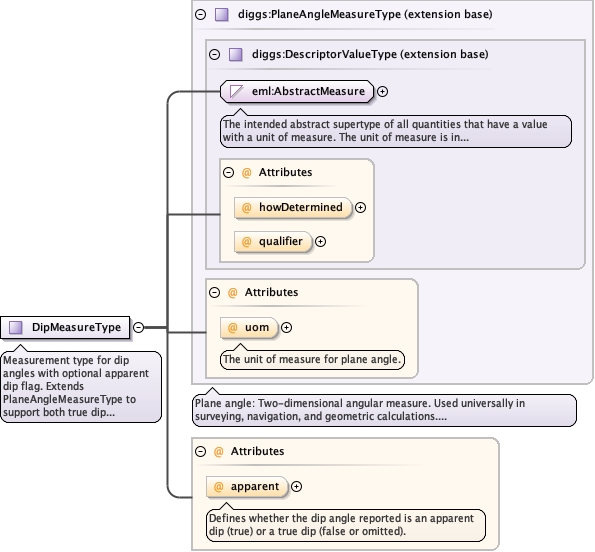

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_DipMeasureType.tmp#DipMeasureType_apparent
Type extension of diggs:PlaneAngleMeasureType
Type hierarchy
Used by
Attributes
QName Type Use Annotation
apparent boolean optional
Defines whether the dip angle reported is an apparent dip
(true) or a true dip (false or omitted).
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<complexType name="DipMeasureType">
  <annotation>
    <documentation>Measurement type for dip angles with optional apparent dip flag. Extends PlaneAngleMeasureType to support both true dip and apparent dip angles.</documentation>
  </annotation>
  <simpleContent>
    <extension base="diggs:PlaneAngleMeasureType">
      <attribute name="apparent" type="boolean">
        <annotation>
          <documentation>Defines whether the dip angle reported is an apparent dip (true) or a true dip (false or omitted).</documentation>
        </annotation>
      </attribute>
    </extension>
  </simpleContent>
</complexType>
Attribute diggs:DipMeasureType / @apparent
Namespace No namespace
Annotations

Defines whether the dip angle reported is an apparent dip
(true) or a true dip (false or omitted).
Type boolean
Properties
content simple
Used by
Complex Type diggs:DipMeasureType
Source

<attribute name="apparent" type="boolean">
  <annotation>
    <documentation>Defines whether the dip angle reported is an apparent dip (true) or a true dip (false or omitted).</documentation>
  </annotation>
</attribute>
