Element diggs:OrientationType / diggs:strikeOrBearing
Namespace http://diggsml.org/schemas/3
Annotations

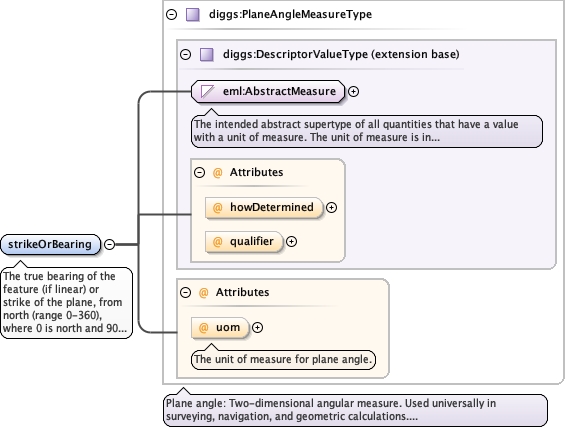

The true bearing of the feature (if linear) or strike of
the plane, from north (range 0-360), where 0 is north and 90 east,
etc.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType
Type diggs:PlaneAngleMeasureType
Type hierarchy
Properties
content complex
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element name="strikeOrBearing" type="diggs:PlaneAngleMeasureType">
  <annotation>
    <documentation>The true bearing of the feature (if linear) or strike of the plane, from north (range 0-360), where 0 is north and 90 east, etc.</documentation>
  </annotation>
</element>
Element diggs:OrientationType / diggs:dipOrPlunge
Namespace http://diggsml.org/schemas/3
Annotations

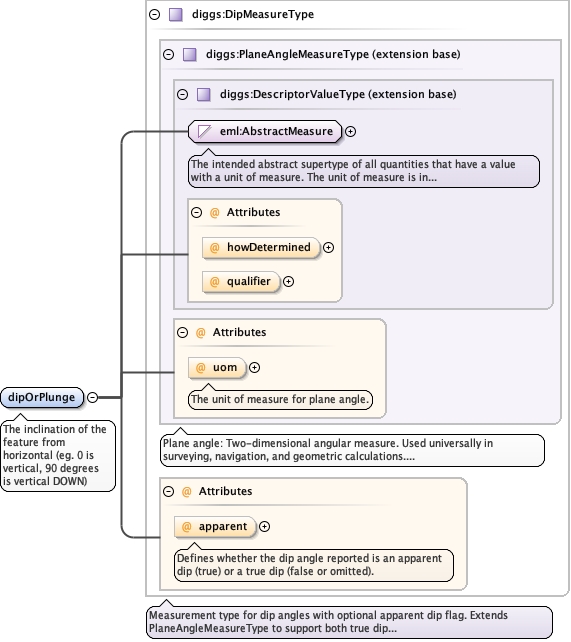

The inclination of the feature from horizontal (eg. 0 is
vertical, 90 degrees is vertical DOWN)
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_DipMeasureType.tmp#DipMeasureType_apparentMeasureTypes_xsd_Complex_Type_diggs_DipMeasureType.tmp#DipMeasureType
Type diggs:DipMeasureType
Type hierarchy
Properties
content complex
Attributes
QName Type Use Annotation
apparent boolean optional
Defines whether the dip angle reported is an apparent dip
(true) or a true dip (false or omitted).
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element name="dipOrPlunge" type="diggs:DipMeasureType">
  <annotation>
    <documentation>The inclination of the feature from horizontal (eg. 0 is vertical, 90 degrees is vertical DOWN)</documentation>
  </annotation>
</element>
Complex Type diggs:OrientationType
Namespace http://diggsml.org/schemas/3
Annotations

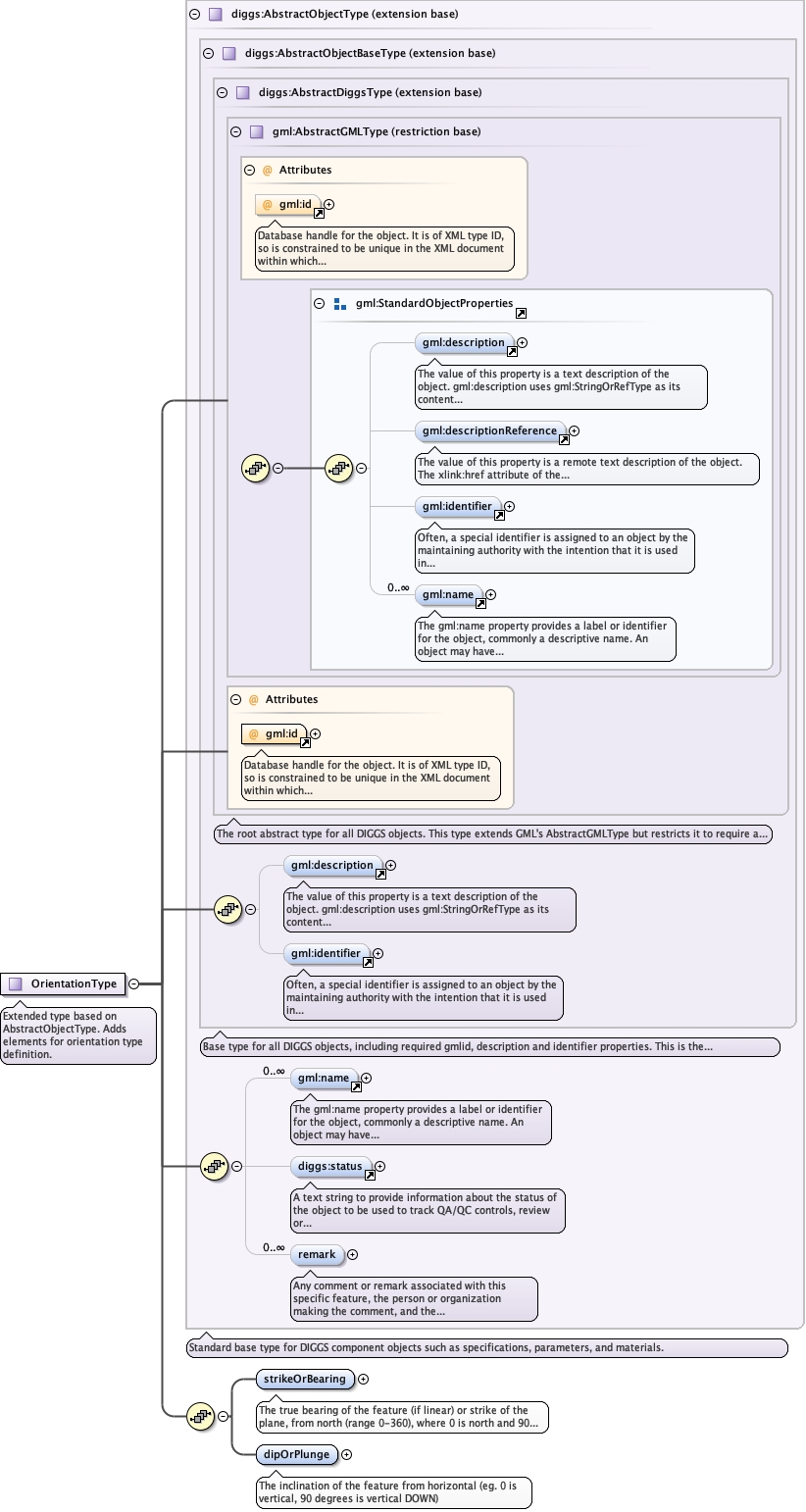

Extended type based on AbstractObjectType. Adds elements for orientation type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeExtObservation_xsd_Complex_Type_diggs_OrientationType.tmp#OrientationType_strikeOrBearingExtObservation_xsd_Complex_Type_diggs_OrientationType.tmp#OrientationType_dipOrPlunge
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:dipOrPlunge, diggs:remark, diggs:status, diggs:strikeOrBearing, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="OrientationType">
  <annotation>
    <documentation>Extended type based on AbstractObjectType. Adds elements for orientation type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="strikeOrBearing" type="diggs:PlaneAngleMeasureType">
          <annotation>
            <documentation>The true bearing of the feature (if linear) or strike of the plane, from north (range 0-360), where 0 is north and 90 east, etc.</documentation>
          </annotation>
        </element>
        <element name="dipOrPlunge" type="diggs:DipMeasureType">
          <annotation>
            <documentation>The inclination of the feature from horizontal (eg. 0 is vertical, 90 degrees is vertical DOWN)</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
