Element diggs:BoundaryType / diggs:dipAngle
Namespace http://diggsml.org/schemas/3
Annotations

The inclinaton angle in degrees of the boundary surface,
as measured downward from the horizontal.

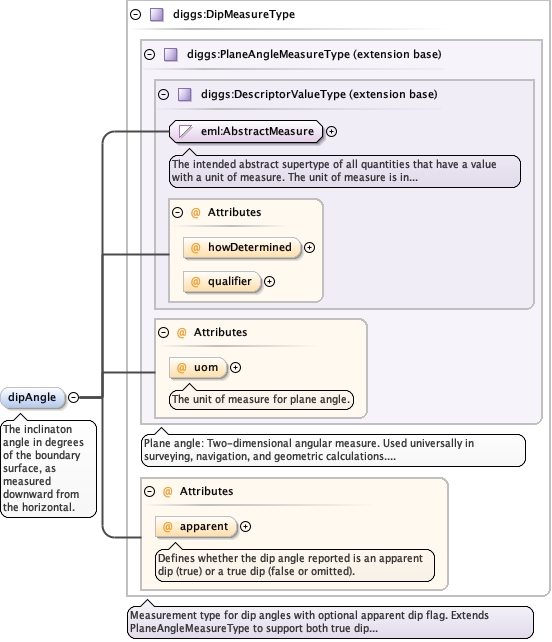

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureTypeMeasureTypes_xsd_Complex_Type_diggs_DipMeasureType.tmp#DipMeasureType_apparentMeasureTypes_xsd_Complex_Type_diggs_DipMeasureType.tmp#DipMeasureType
Type diggs:DipMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
apparent boolean optional
Defines whether the dip angle reported is an apparent dip
(true) or a true dip (false or omitted).
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element minOccurs="0" name="dipAngle" type="diggs:DipMeasureType">
  <annotation>
    <documentation>The inclinaton angle in degrees of the boundary surface, as measured downward from the horizontal.</documentation>
  </annotation>
</element>
Element diggs:BoundaryType / diggs:dipDirection
Namespace http://diggsml.org/schemas/3
Annotations

The direction of the true dip of the boundary surface, as
measured clockwise with respect to true north.

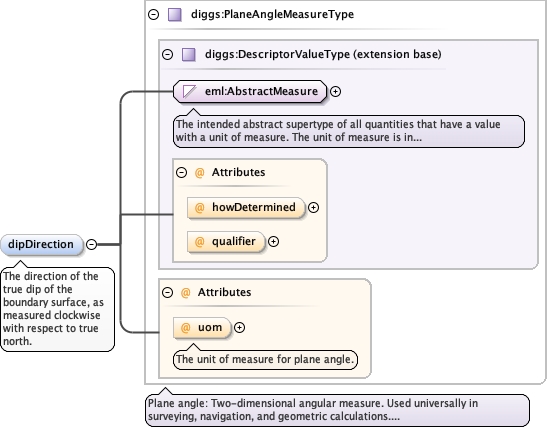

Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType
Type diggs:PlaneAngleMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element minOccurs="0" name="dipDirection" type="diggs:PlaneAngleMeasureType">
  <annotation>
    <documentation>The direction of the true dip of the boundary surface, as measured clockwise with respect to true north.</documentation>
  </annotation>
</element>
Element diggs:BoundaryType / diggs:distinctness
Namespace http://diggsml.org/schemas/3
Annotations

A controlled string (preferably) that defines how
distinctly the boundary between zones is defined, as governed by
both the contrast between adjacent zones and by the width of the
boundary. (eg. sharp, gradational)

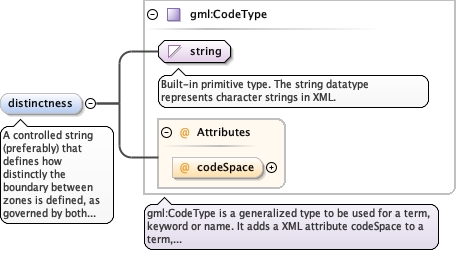

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="distinctness" type="gml:CodeType">
  <annotation>
    <documentation>A controlled string (preferably) that defines how distinctly the boundary between zones is defined, as governed by both the contrast between adjacent zones and by the width of the boundary. (eg. sharp, gradational)</documentation>
  </annotation>
</element>
Element diggs:BoundaryType / diggs:origin
Namespace http://diggsml.org/schemas/3
Annotations

A controlled string (preferably) that defines the
specific nature or origin of the boundary. (eg. unconformity, fault,
etc.)

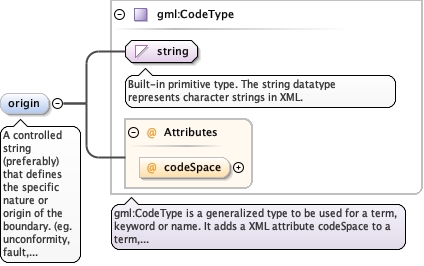

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="origin" type="gml:CodeType">
  <annotation>
    <documentation>A controlled string (preferably) that defines the specific nature or origin of the boundary. (eg. unconformity, fault, etc.)</documentation>
  </annotation>
</element>
Element diggs:BoundaryType / diggs:topography
Namespace http://diggsml.org/schemas/3
Annotations

A controlled string (preferably) that defines the shape
of the boundary surface between zones. (eg. wavy)

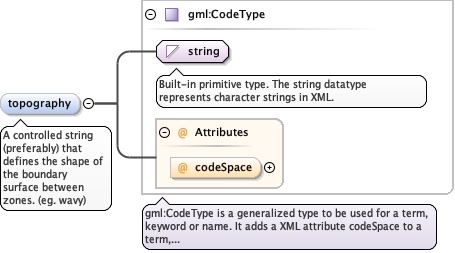

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="topography" type="gml:CodeType">
  <annotation>
    <documentation>A controlled string (preferably) that defines the shape of the boundary surface between zones. (eg. wavy)</documentation>
  </annotation>
</element>
Complex Type diggs:BoundaryType
Namespace http://diggsml.org/schemas/3
Annotations

Complex type: BoundaryType
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCommon_xsd_Complex_Type_diggs_BoundaryType.tmp#BoundaryType_howDeterminedCommon_xsd_Element_diggs_location.tmp#locationCommon_xsd_Complex_Type_diggs_BoundaryType.tmp#BoundaryType_dipAngleCommon_xsd_Complex_Type_diggs_BoundaryType.tmp#BoundaryType_dipDirectionCommon_xsd_Complex_Type_diggs_BoundaryType.tmp#BoundaryType_distinctnessCommon_xsd_Complex_Type_diggs_BoundaryType.tmp#BoundaryType_originCommon_xsd_Complex_Type_diggs_BoundaryType.tmp#BoundaryType_topography
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Element diggs:Boundary
Model
Children diggs:dipAngle, diggs:dipDirection, diggs:distinctness, diggs:location, diggs:origin, diggs:remark, diggs:status, diggs:topography, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
howDetermined diggs:DescriptorMethodEnumType optional
A value that describes the method by which the observation or
measurement was determined.
Source

<complexType name="BoundaryType">
  <annotation>
    <documentation>Complex type: BoundaryType</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element minOccurs="0" ref="diggs:location"/>
        <element minOccurs="0" name="dipAngle" type="diggs:DipMeasureType">
          <annotation>
            <documentation>The inclinaton angle in degrees of the boundary surface, as measured downward from the horizontal.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="dipDirection" type="diggs:PlaneAngleMeasureType">
          <annotation>
            <documentation>The direction of the true dip of the boundary surface, as measured clockwise with respect to true north.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="distinctness" type="gml:CodeType">
          <annotation>
            <documentation>A controlled string (preferably) that defines how distinctly the boundary between zones is defined, as governed by both the contrast between adjacent zones and by the width of the boundary. (eg. sharp, gradational)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="origin" type="gml:CodeType">
          <annotation>
            <documentation>A controlled string (preferably) that defines the specific nature or origin of the boundary. (eg. unconformity, fault, etc.)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="topography" type="gml:CodeType">
          <annotation>
            <documentation>A controlled string (preferably) that defines the shape of the boundary surface between zones. (eg. wavy)</documentation>
          </annotation>
        </element>
      </sequence>
      <attribute name="howDetermined" type="diggs:DescriptorMethodEnumType">
        <annotation>
          <documentation>A value that describes the method by which the observation or measurement was determined.</documentation>
        </annotation>
      </attribute>
    </extension>
  </complexContent>
</complexType>
Attribute diggs:BoundaryType / @howDetermined
Namespace No namespace
Annotations

A value that describes the method by which the observation or
measurement was determined.
Type diggs:DescriptorMethodEnumType
Properties
content simple
Facets
enumeration assigned
Value is assigned a priori as a commonly used value or by
assumption
enumeration calculated
Value is computed directly from other value(s)
enumeration extrapolated
Value is estimated by extrapolating trends in the known
data
enumeration graphic
Value is manually picked from a graph or visual
display
enumeration inferred
Value is estimated from some indirect measurements such as from a
wireline log or transducer.
enumeration interpolated
Value is estimated betweem two known values using some presumed
function
enumeration measured
Value is determined directly from a laboratory or in situ test
enumeration missing
Method known but not reported here
enumeration modeled
Value is estimated from a representation of the measured
feature
enumeration moving average
Value is calculated as a moving average of
reading
enumeration other
Method other than the choices in this list. Further information
should be provided in the remarks property
enumeration reported
Value or description comes from a third party
source
enumeration unknown
Method of determination unknown and can likely not be determined
enumeration visual
Value or description comes from visual or visual/manual
inspection
Used by
Complex Type diggs:BoundaryType
Source

<attribute name="howDetermined" type="diggs:DescriptorMethodEnumType">
  <annotation>
    <documentation>A value that describes the method by which the observation or measurement was determined.</documentation>
  </annotation>
</attribute>
