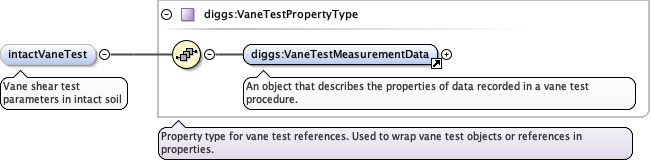

Element diggs:InsituVaneTestType / diggs:intactVaneTest
Namespace http://diggsml.org/schemas/3
Annotations

Vane shear test parameters in intact soil
Diagram
DiagramCoreProcedures_xsd_Element_diggs_VaneTestMeasurementData.tmp#VaneTestMeasurementDataCoreProcedures_xsd_Complex_Type_diggs_VaneTestPropertyType.tmp#VaneTestPropertyType
Type diggs:VaneTestPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:VaneTestMeasurementData
Instance

<diggs:intactVaneTest xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:VaneTestMeasurementData gml:id="">{1,1}</diggs:VaneTestMeasurementData>
</diggs:intactVaneTest>
Source

<element minOccurs="0" name="intactVaneTest" type="diggs:VaneTestPropertyType">
  <annotation>
    <documentation>Vane shear test parameters in intact soil</documentation>
  </annotation>
</element>

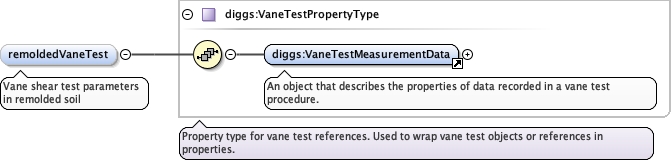

Element diggs:InsituVaneTestType / diggs:remoldedVaneTest
Namespace http://diggsml.org/schemas/3
Annotations

Vane shear test parameters in remolded
soil
Diagram
DiagramCoreProcedures_xsd_Element_diggs_VaneTestMeasurementData.tmp#VaneTestMeasurementDataCoreProcedures_xsd_Complex_Type_diggs_VaneTestPropertyType.tmp#VaneTestPropertyType
Type diggs:VaneTestPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:VaneTestMeasurementData
Instance

<diggs:remoldedVaneTest xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:VaneTestMeasurementData gml:id="">{1,1}</diggs:VaneTestMeasurementData>
</diggs:remoldedVaneTest>
Source

<element minOccurs="0" name="remoldedVaneTest" type="diggs:VaneTestPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>Vane shear test parameters in remolded soil</documentation>
  </annotation>
</element>
Element diggs:InsituVaneTestType / diggs:torqueRodFriction
Namespace http://diggsml.org/schemas/3
Annotations

Measure of the friction of the torque rod; measured as
friction above the slip coupling or as blank rod friction where rod
is in direct contact with the soil.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element minOccurs="0" name="torqueRodFriction" type="diggs:ForceMeasureType">
  <annotation>
    <documentation>Measure of the friction of the torque rod; measured as friction above the slip coupling or as blank rod friction where rod is in direct contact with the soil.</documentation>
  </annotation>
</element>

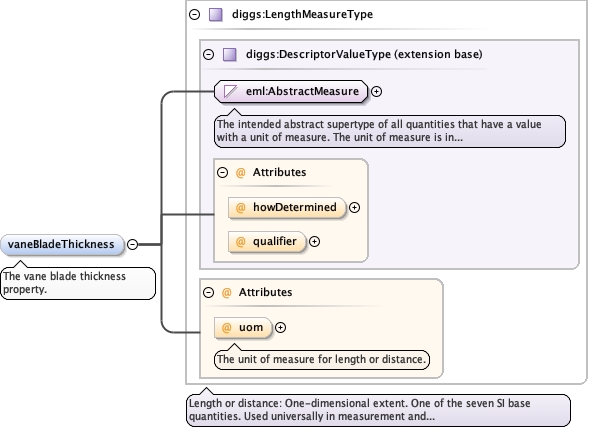

Element diggs:InsituVaneTestType / diggs:vaneBladeThickness
Namespace http://diggsml.org/schemas/3
Annotations

The vane blade thickness property.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="vaneBladeThickness" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The vane blade thickness property.</documentation>
  </annotation>
</element>
Element diggs:InsituVaneTestType / diggs:vaneDepthBelow
Namespace http://diggsml.org/schemas/3
Annotations

Vane depth beneath housing or bottom of hole. This is a
vector length measure describing the difference in the hole or
housing bottom and the test location.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="vaneDepthBelow" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Vane depth beneath housing or bottom of hole. This is a vector length measure describing the difference in the hole or housing bottom and the test location.</documentation>
  </annotation>
</element>

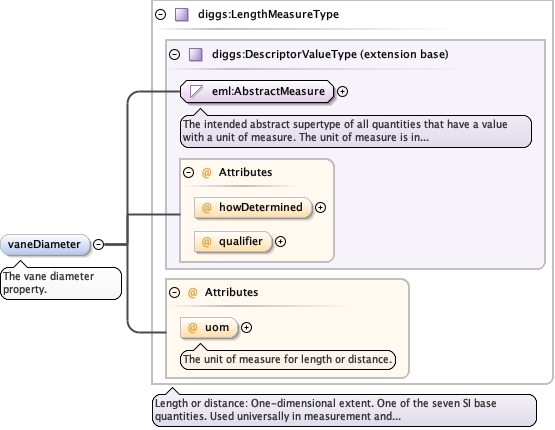

Element diggs:InsituVaneTestType / diggs:vaneDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The vane diameter property.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="vaneDiameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The vane diameter property.</documentation>
  </annotation>
</element>

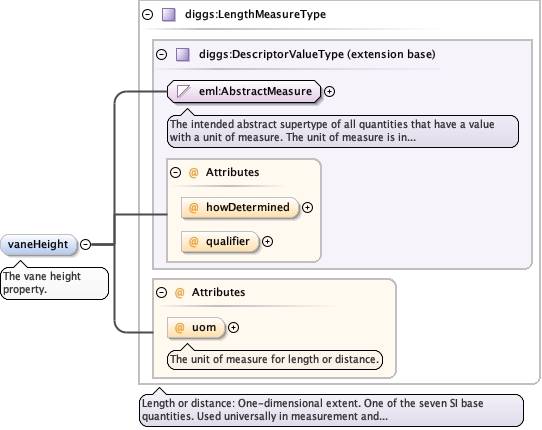

Element diggs:InsituVaneTestType / diggs:vaneHeight
Namespace http://diggsml.org/schemas/3
Annotations

The vane height property.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="vaneHeight" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The vane height property.</documentation>
  </annotation>
</element>

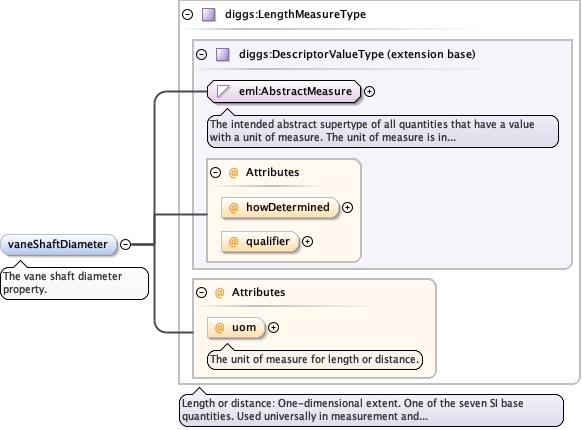

Element diggs:InsituVaneTestType / diggs:vaneShaftDiameter
Namespace http://diggsml.org/schemas/3
Annotations

The vane shaft diameter property.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="vaneShaftDiameter" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The vane shaft diameter property.</documentation>
  </annotation>
</element>
Element diggs:InsituVaneTestType / diggs:vaneSystemType
Namespace http://diggsml.org/schemas/3
Annotations

Type of vane system, eg. slip coupling, no slip coupling,
vane shoe push/drill, etc. Intended to come from a controlled list
of terms.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="vaneSystemType" type="gml:CodeType">
  <annotation>
    <documentation>Type of vane system, eg. slip coupling, no slip coupling, vane shoe push/drill, etc. Intended to come from a controlled list of terms.</documentation>
  </annotation>
</element>
Element diggs:InsituVaneTestType / diggs:vaneTaperAngleBottom
Namespace http://diggsml.org/schemas/3
Annotations

The vane taper angle bottom property.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType
Type diggs:PlaneAngleMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element minOccurs="0" name="vaneTaperAngleBottom" type="diggs:PlaneAngleMeasureType">
  <annotation>
    <documentation>The vane taper angle bottom property.</documentation>
  </annotation>
</element>

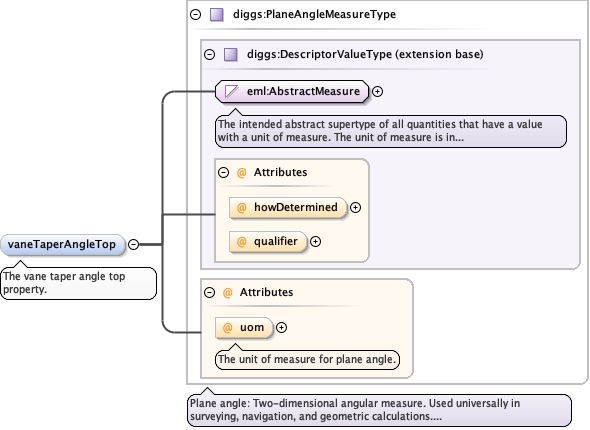

Element diggs:InsituVaneTestType / diggs:vaneTaperAngleTop
Namespace http://diggsml.org/schemas/3
Annotations

The vane taper angle top property.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_PlaneAngleMeasureType.tmp#PlaneAngleMeasureType
Type diggs:PlaneAngleMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:PlaneAngleUomEnumType optional
The unit of measure for plane angle.
Source

<element minOccurs="0" name="vaneTaperAngleTop" type="diggs:PlaneAngleMeasureType">
  <annotation>
    <documentation>The vane taper angle top property.</documentation>
  </annotation>
</element>

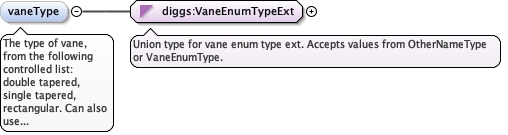

Element diggs:InsituVaneTestType / diggs:vaneType
Namespace http://diggsml.org/schemas/3
Annotations

The type of vane, from the following controlled list:
double tapered, single tapered, rectangular. Can also use other:xxx
to define a new type.
Diagram
DiagramExtProcedures_xsd_Simple_Type_diggs_VaneEnumTypeExt.tmp#VaneEnumTypeExt
Type diggs:VaneEnumTypeExt
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="vaneType" type="diggs:VaneEnumTypeExt">
  <annotation>
    <documentation>The type of vane, from the following controlled list: double tapered, single tapered, rectangular. Can also use other:xxx to define a new type.</documentation>
  </annotation>
</element>
Complex Type diggs:InsituVaneTestType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractInsituTestProcedureType. Adds elements for insitu vane test type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractInsituTestProcedureType.tmp#AbstractInsituTestProcedureTypeExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_intactVaneTestExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_remoldedVaneTestExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_torqueRodFrictionExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneBladeThicknessExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneDepthBelowExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneDiameterExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneHeightExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneShaftDiameterExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneSystemTypeExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneTaperAngleBottomExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneTaperAngleTopExtProcedures_xsd_Complex_Type_diggs_InsituVaneTestType.tmp#InsituVaneTestType_vaneType
Type extension of diggs:AbstractInsituTestProcedureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:intactVaneTest, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:remoldedVaneTest, diggs:role, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs:torqueRodFriction, diggs:vaneBladeThickness, diggs:vaneDepthBelow, diggs:vaneDiameter, diggs:vaneHeight, diggs:vaneShaftDiameter, diggs:vaneSystemType, diggs:vaneTaperAngleBottom, diggs:vaneTaperAngleTop, diggs:vaneType, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="InsituVaneTestType">
  <annotation>
    <documentation>Extended type based on AbstractInsituTestProcedureType. Adds elements for insitu vane test type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractInsituTestProcedureType">
      <sequence>
        <element minOccurs="0" name="intactVaneTest" type="diggs:VaneTestPropertyType">
          <annotation>
            <documentation>Vane shear test parameters in intact soil</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="remoldedVaneTest" type="diggs:VaneTestPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>Vane shear test parameters in remolded soil</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="torqueRodFriction" type="diggs:ForceMeasureType">
          <annotation>
            <documentation>Measure of the friction of the torque rod; measured as friction above the slip coupling or as blank rod friction where rod is in direct contact with the soil.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneBladeThickness" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The vane blade thickness property.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneDepthBelow" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Vane depth beneath housing or bottom of hole. This is a vector length measure describing the difference in the hole or housing bottom and the test location.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneDiameter" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The vane diameter property.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneHeight" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The vane height property.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneShaftDiameter" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The vane shaft diameter property.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneSystemType" type="gml:CodeType">
          <annotation>
            <documentation>Type of vane system, eg. slip coupling, no slip coupling, vane shoe push/drill, etc. Intended to come from a controlled list of terms.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneTaperAngleBottom" type="diggs:PlaneAngleMeasureType">
          <annotation>
            <documentation>The vane taper angle bottom property.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneTaperAngleTop" type="diggs:PlaneAngleMeasureType">
          <annotation>
            <documentation>The vane taper angle top property.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="vaneType" type="diggs:VaneEnumTypeExt">
          <annotation>
            <documentation>The type of vane, from the following controlled list: double tapered, single tapered, rectangular. Can also use other:xxx to define a new type.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
