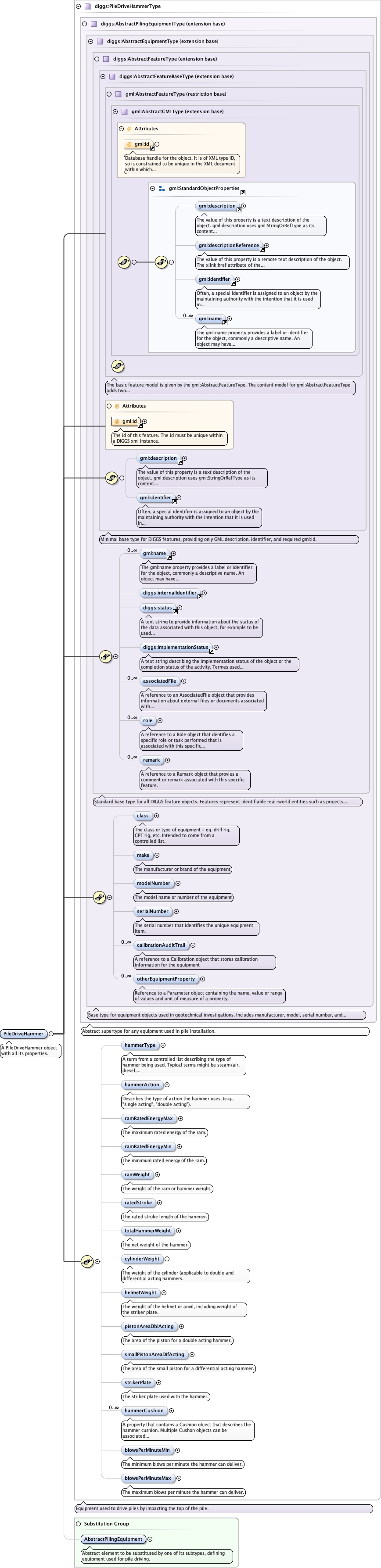

Schema documentation for component diggs:PileDriveHammer

<diggs:PileDriveHammer gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:class codeSpace="">{0,1}</diggs:class>
  <diggs:make>{0,1}</diggs:make>
  <diggs:modelNumber>{0,1}</diggs:modelNumber>
  <diggs:serialNumber>{0,1}</diggs:serialNumber>
  <diggs:calibrationAuditTrail>{0,unbounded}</diggs:calibrationAuditTrail>
  <diggs:otherEquipmentProperty>{0,unbounded}</diggs:otherEquipmentProperty>
  <diggs:hammerType codeSpace="">{0,1}</diggs:hammerType>
  <diggs:hammerAction codeSpace="">{0,1}</diggs:hammerAction>
  <diggs:ramRatedEnergyMax howDetermined="" qualifier="" uom="">{0,1}</diggs:ramRatedEnergyMax>
  <diggs:ramRatedEnergyMin howDetermined="" qualifier="" uom="">{0,1}</diggs:ramRatedEnergyMin>
  <diggs:ramWeight howDetermined="" qualifier="" uom="">{0,1}</diggs:ramWeight>
  <diggs:ratedStroke howDetermined="" qualifier="" uom="">{0,1}</diggs:ratedStroke>
  <diggs:totalHammerWeight howDetermined="" qualifier="" uom="">{0,1}</diggs:totalHammerWeight>
  <diggs:cylinderWeight howDetermined="" qualifier="" uom="">{0,1}</diggs:cylinderWeight>
  <diggs:helmetWeight howDetermined="" qualifier="" uom="">{0,1}</diggs:helmetWeight>
  <diggs:pistonAreaDblActing howDetermined="" qualifier="" uom="">{0,1}</diggs:pistonAreaDblActing>
  <diggs:smallPistonAreaDifActing howDetermined="" qualifier="" uom="">{0,1}</diggs:smallPistonAreaDifActing>
  <diggs:strikerPlate>{0,1}</diggs:strikerPlate>
  <diggs:hammerCushion>{0,unbounded}</diggs:hammerCushion>
  <diggs:blowsPerMinuteMin>{0,1}</diggs:blowsPerMinuteMin>
  <diggs:blowsPerMinuteMax>{0,1}</diggs:blowsPerMinuteMax>
</diggs:PileDriveHammer>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="PileDriveHammer" substitutionGroup="diggs:AbstractPilingEquipment" type="diggs:PileDriveHammerType"> <annotation> <documentation>A PileDriveHammer object with all its properties.</documentation> </annotation> </element>
