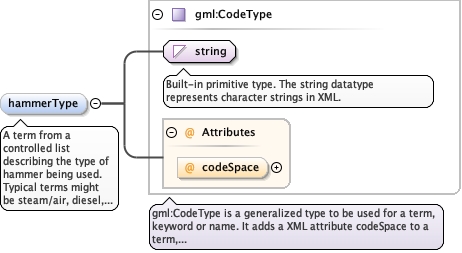

Element diggs:PileDriveHammerType / diggs:hammerType
Namespace http://diggsml.org/schemas/3
Annotations

A term from a controlled list describing the type of
hammer being used. Typical terms might be steam/air, diesel,
hydraulic, vibratory, etc.)
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="hammerType" type="gml:CodeType">
  <annotation>
    <documentation>A term from a controlled list describing the type of hammer being used. Typical terms might be steam/air, diesel, hydraulic, vibratory, etc.)</documentation>
  </annotation>
</element>

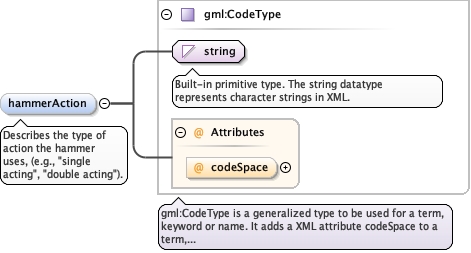

Element diggs:PileDriveHammerType / diggs:hammerAction
Namespace http://diggsml.org/schemas/3
Annotations

Describes the type of action the hammer uses, (e.g.,
"single acting", "double acting").
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="hammerAction" type="gml:CodeType">
  <annotation>
    <documentation>Describes the type of action the hammer uses, (e.g., "single acting", "double acting").</documentation>
  </annotation>
</element>

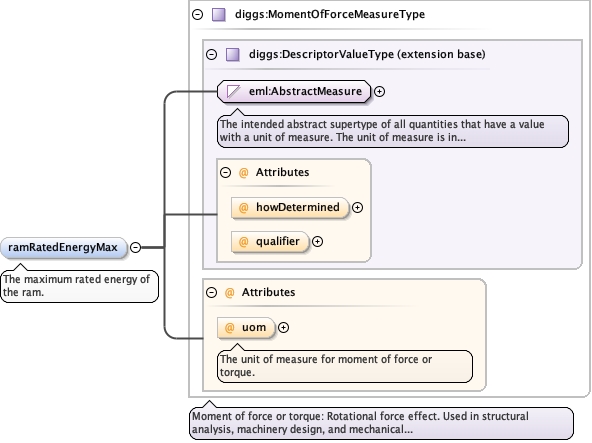

Element diggs:PileDriveHammerType / diggs:ramRatedEnergyMax
Namespace http://diggsml.org/schemas/3
Annotations

The maximum rated energy of the ram.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType
Type diggs:MomentOfForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MomentOfForceUomEnumType optional
The unit of measure for moment of force or torque.
Source

<element minOccurs="0" name="ramRatedEnergyMax" type="diggs:MomentOfForceMeasureType">
  <annotation>
    <documentation>The maximum rated energy of the ram.</documentation>
  </annotation>
</element>

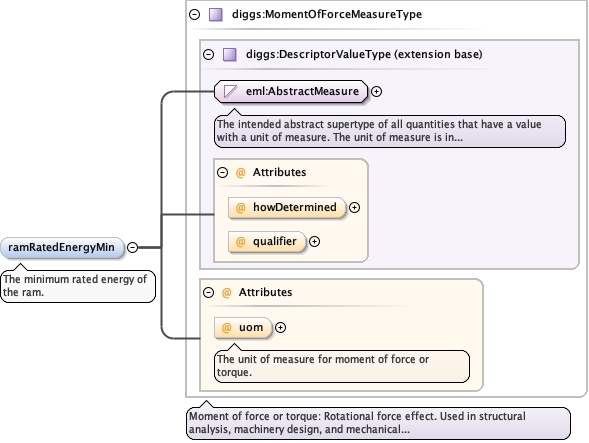

Element diggs:PileDriveHammerType / diggs:ramRatedEnergyMin
Namespace http://diggsml.org/schemas/3
Annotations

The minimum rated energy of the ram.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_MomentOfForceMeasureType.tmp#MomentOfForceMeasureType
Type diggs:MomentOfForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:MomentOfForceUomEnumType optional
The unit of measure for moment of force or torque.
Source

<element minOccurs="0" name="ramRatedEnergyMin" type="diggs:MomentOfForceMeasureType">
  <annotation>
    <documentation>The minimum rated energy of the ram.</documentation>
  </annotation>
</element>

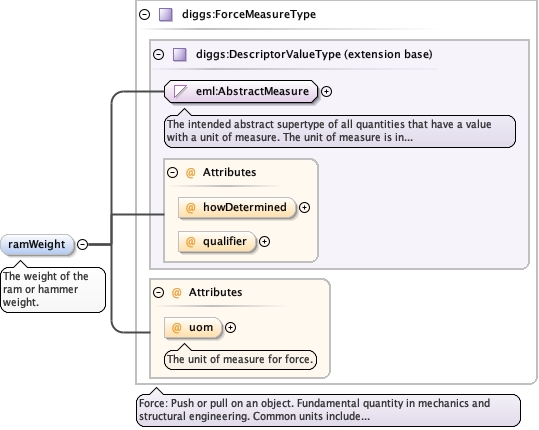

Element diggs:PileDriveHammerType / diggs:ramWeight
Namespace http://diggsml.org/schemas/3
Annotations

The weight of the ram or hammer weight.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element minOccurs="0" name="ramWeight" type="diggs:ForceMeasureType">
  <annotation>
    <documentation>The weight of the ram or hammer weight.</documentation>
  </annotation>
</element>

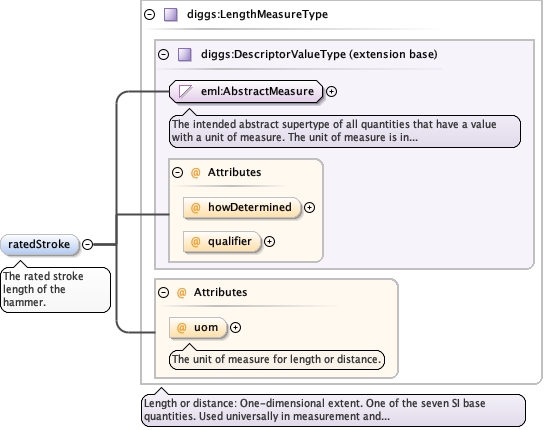

Element diggs:PileDriveHammerType / diggs:ratedStroke
Namespace http://diggsml.org/schemas/3
Annotations

The rated stroke length of the hammer.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="ratedStroke" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The rated stroke length of the hammer.</documentation>
  </annotation>
</element>

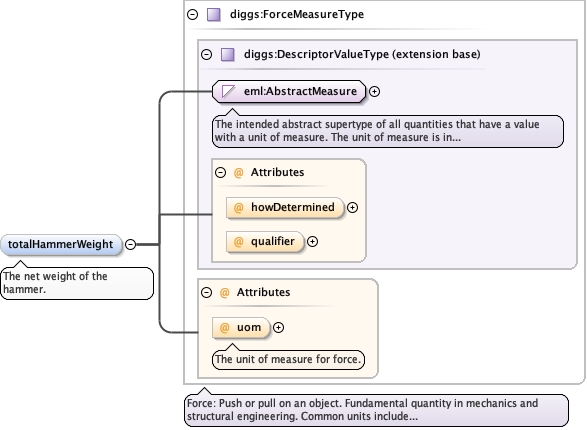

Element diggs:PileDriveHammerType / diggs:totalHammerWeight
Namespace http://diggsml.org/schemas/3
Annotations

The net weight of the hammer.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element minOccurs="0" name="totalHammerWeight" type="diggs:ForceMeasureType">
  <annotation>
    <documentation>The net weight of the hammer.</documentation>
  </annotation>
</element>

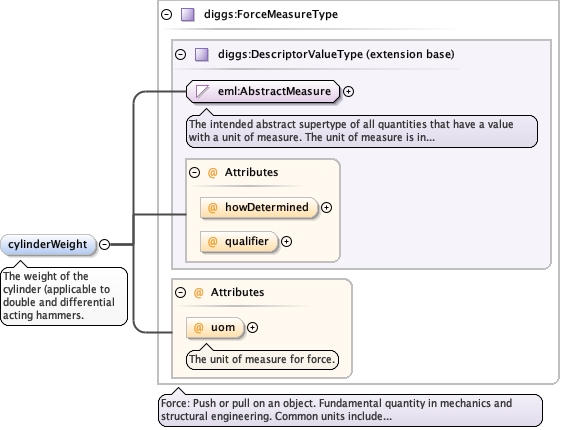

Element diggs:PileDriveHammerType / diggs:cylinderWeight
Namespace http://diggsml.org/schemas/3
Annotations

The weight of the cylinder (applicable to double and
differential acting hammers.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element minOccurs="0" name="cylinderWeight" type="diggs:ForceMeasureType">
  <annotation>
    <documentation>The weight of the cylinder (applicable to double and differential acting hammers.</documentation>
  </annotation>
</element>

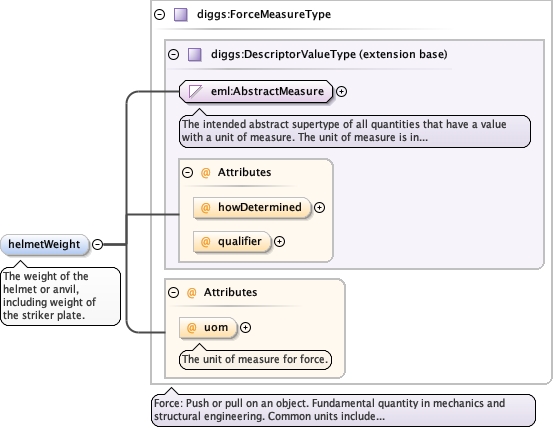

Element diggs:PileDriveHammerType / diggs:helmetWeight
Namespace http://diggsml.org/schemas/3
Annotations

The weight of the helmet or anvil, including weight of
the striker plate.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_ForceMeasureType.tmp#ForceMeasureType
Type diggs:ForceMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:ForceUomEnumType optional
The unit of measure for force.
Source

<element minOccurs="0" name="helmetWeight" type="diggs:ForceMeasureType">
  <annotation>
    <documentation>The weight of the helmet or anvil, including weight of the striker plate.</documentation>
  </annotation>
</element>

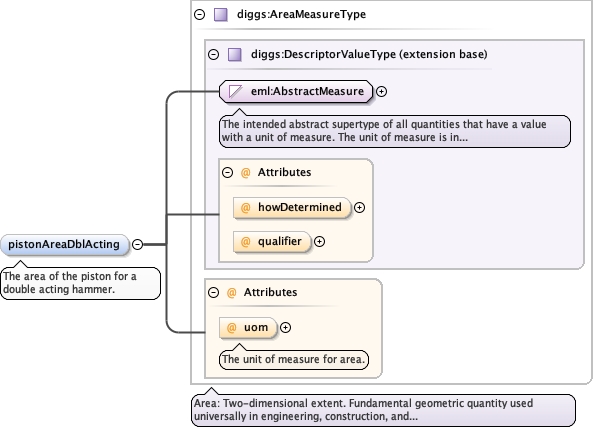

Element diggs:PileDriveHammerType / diggs:pistonAreaDblActing
Namespace http://diggsml.org/schemas/3
Annotations

The area of the piston for a double acting
hammer.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType
Type diggs:AreaMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AreaUomEnumType optional
The unit of measure for area.
Source

<element minOccurs="0" name="pistonAreaDblActing" type="diggs:AreaMeasureType">
  <annotation>
    <documentation>The area of the piston for a double acting hammer.</documentation>
  </annotation>
</element>

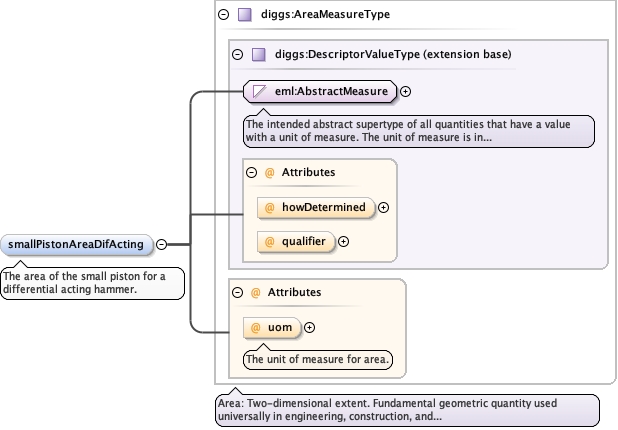

Element diggs:PileDriveHammerType / diggs:smallPistonAreaDifActing
Namespace http://diggsml.org/schemas/3
Annotations

The area of the small piston for a differential acting
hammer.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_AreaMeasureType.tmp#AreaMeasureType
Type diggs:AreaMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:AreaUomEnumType optional
The unit of measure for area.
Source

<element minOccurs="0" name="smallPistonAreaDifActing" type="diggs:AreaMeasureType">
  <annotation>
    <documentation>The area of the small piston for a differential acting hammer.</documentation>
  </annotation>
</element>

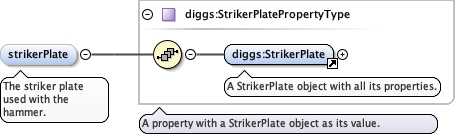

Element diggs:PileDriveHammerType / diggs:strikerPlate
Namespace http://diggsml.org/schemas/3
Annotations

The striker plate used with the hammer.
Diagram
DiagramDeepFoundation_xsd_Element_diggs_StrikerPlate.tmp#StrikerPlateDeepFoundation_xsd_Complex_Type_diggs_StrikerPlatePropertyType.tmp#StrikerPlatePropertyType
Type diggs:StrikerPlatePropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:StrikerPlate
Instance

<diggs:strikerPlate xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:StrikerPlate gml:id="">{1,1}</diggs:StrikerPlate>
</diggs:strikerPlate>
Source

<element minOccurs="0" name="strikerPlate" type="diggs:StrikerPlatePropertyType">
  <annotation>
    <documentation>The striker plate used with the hammer.</documentation>
  </annotation>
</element>

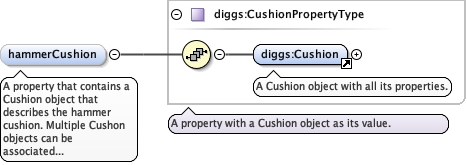

Element diggs:PileDriveHammerType / diggs:hammerCushion
Namespace http://diggsml.org/schemas/3
Annotations

A property that contains a Cushion object that describes
the hammer cushion. Multiple Cushon objects can be associated witht
the hammer to account for multiple drives that might occur for the
pile driving activity if the cushion is changed out between
drives.
Diagram
DiagramDeepFoundation_xsd_Element_diggs_Cushion.tmp#CushionDeepFoundation_xsd_Complex_Type_diggs_CushionPropertyType.tmp#CushionPropertyType
Type diggs:CushionPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Cushion
Instance

<diggs:hammerCushion xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Cushion gml:id="">{1,1}</diggs:Cushion>
</diggs:hammerCushion>
Source

<element minOccurs="0" name="hammerCushion" type="diggs:CushionPropertyType" maxOccurs="unbounded">
  <annotation>
    <documentation>A property that contains a Cushion object that describes the hammer cushion. Multiple Cushon objects can be associated witht the hammer to account for multiple drives that might occur for the pile driving activity if the cushion is changed out between drives.</documentation>
  </annotation>
</element>
Element diggs:PileDriveHammerType / diggs:blowsPerMinuteMin
Namespace http://diggsml.org/schemas/3
Annotations

The minimum blows per minute the hammer can
deliver.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="blowsPerMinuteMin" type="positiveInteger">
  <annotation>
    <documentation>The minimum blows per minute the hammer can deliver.</documentation>
  </annotation>
</element>
Element diggs:PileDriveHammerType / diggs:blowsPerMinuteMax
Namespace http://diggsml.org/schemas/3
Annotations

The maximum blows per minute the hammer can
deliver.
Diagram
Diagram
Type positiveInteger
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="blowsPerMinuteMax" type="positiveInteger">
  <annotation>
    <documentation>The maximum blows per minute the hammer can deliver.</documentation>
  </annotation>
</element>

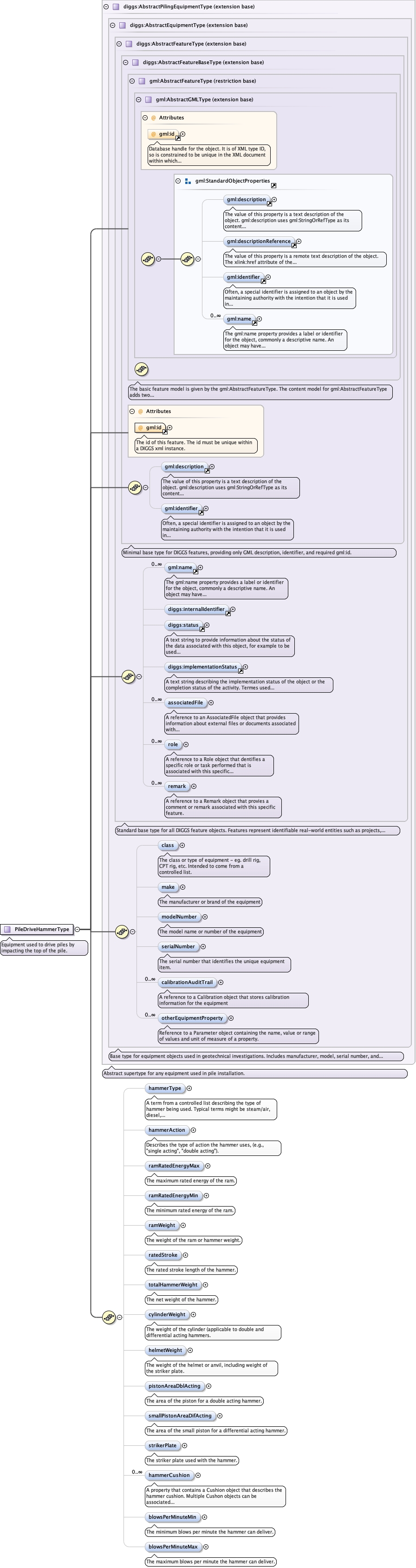

Complex Type diggs:PileDriveHammerType
Namespace http://diggsml.org/schemas/3
Annotations

Equipment used to drive piles by impacting the top of the
pile.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeDeepFoundation_xsd_Complex_Type_diggs_AbstractPilingEquipmentType.tmp#AbstractPilingEquipmentTypeDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_hammerTypeDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_hammerActionDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_ramRatedEnergyMaxDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_ramRatedEnergyMinDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_ramWeightDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_ratedStrokeDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_totalHammerWeightDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_cylinderWeightDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_helmetWeightDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_pistonAreaDblActingDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_smallPistonAreaDifActingDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_strikerPlateDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_hammerCushionDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_blowsPerMinuteMinDeepFoundation_xsd_Complex_Type_diggs_PileDriveHammerType.tmp#PileDriveHammerType_blowsPerMinuteMax
Type extension of diggs:AbstractPilingEquipmentType
Type hierarchy
Properties
mixed false
Used by
Model
Children diggs:associatedFile, diggs:blowsPerMinuteMax, diggs:blowsPerMinuteMin, diggs:calibrationAuditTrail, diggs:class, diggs:cylinderWeight, diggs:hammerAction, diggs:hammerCushion, diggs:hammerType, diggs:helmetWeight, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:pistonAreaDblActing, diggs:ramRatedEnergyMax, diggs:ramRatedEnergyMin, diggs:ramWeight, diggs:ratedStroke, diggs:remark, diggs:role, diggs:serialNumber, diggs:smallPistonAreaDifActing, diggs:status, diggs:strikerPlate, diggs:totalHammerWeight, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType mixed="false" name="PileDriveHammerType">
  <annotation>
    <documentation>Equipment used to drive piles by impacting the top of the pile.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractPilingEquipmentType">
      <sequence>
        <element minOccurs="0" name="hammerType" type="gml:CodeType">
          <annotation>
            <documentation>A term from a controlled list describing the type of hammer being used. Typical terms might be steam/air, diesel, hydraulic, vibratory, etc.)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="hammerAction" type="gml:CodeType">
          <annotation>
            <documentation>Describes the type of action the hammer uses, (e.g., "single acting", "double acting").</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="ramRatedEnergyMax" type="diggs:MomentOfForceMeasureType">
          <annotation>
            <documentation>The maximum rated energy of the ram.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="ramRatedEnergyMin" type="diggs:MomentOfForceMeasureType">
          <annotation>
            <documentation>The minimum rated energy of the ram.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="ramWeight" type="diggs:ForceMeasureType">
          <annotation>
            <documentation>The weight of the ram or hammer weight.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="ratedStroke" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The rated stroke length of the hammer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="totalHammerWeight" type="diggs:ForceMeasureType">
          <annotation>
            <documentation>The net weight of the hammer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="cylinderWeight" type="diggs:ForceMeasureType">
          <annotation>
            <documentation>The weight of the cylinder (applicable to double and differential acting hammers.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="helmetWeight" type="diggs:ForceMeasureType">
          <annotation>
            <documentation>The weight of the helmet or anvil, including weight of the striker plate.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="pistonAreaDblActing" type="diggs:AreaMeasureType">
          <annotation>
            <documentation>The area of the piston for a double acting hammer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="smallPistonAreaDifActing" type="diggs:AreaMeasureType">
          <annotation>
            <documentation>The area of the small piston for a differential acting hammer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="strikerPlate" type="diggs:StrikerPlatePropertyType">
          <annotation>
            <documentation>The striker plate used with the hammer.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="hammerCushion" type="diggs:CushionPropertyType" maxOccurs="unbounded">
          <annotation>
            <documentation>A property that contains a Cushion object that describes the hammer cushion. Multiple Cushon objects can be associated witht the hammer to account for multiple drives that might occur for the pile driving activity if the cushion is changed out between drives.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="blowsPerMinuteMin" type="positiveInteger">
          <annotation>
            <documentation>The minimum blows per minute the hammer can deliver.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="blowsPerMinuteMax" type="positiveInteger">
          <annotation>
            <documentation>The maximum blows per minute the hammer can deliver.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
XML Schema documentation generated by ® XML Editor.
