Element diggs:AbstractEquipment
Namespace http://diggsml.org/schemas/3
Annotations

The base type for Diggs equipment types. Derivations are objects that
contains properties of equipment used to construct, test, or monitor objects within
the geotechnical and geoenvironmental domains.

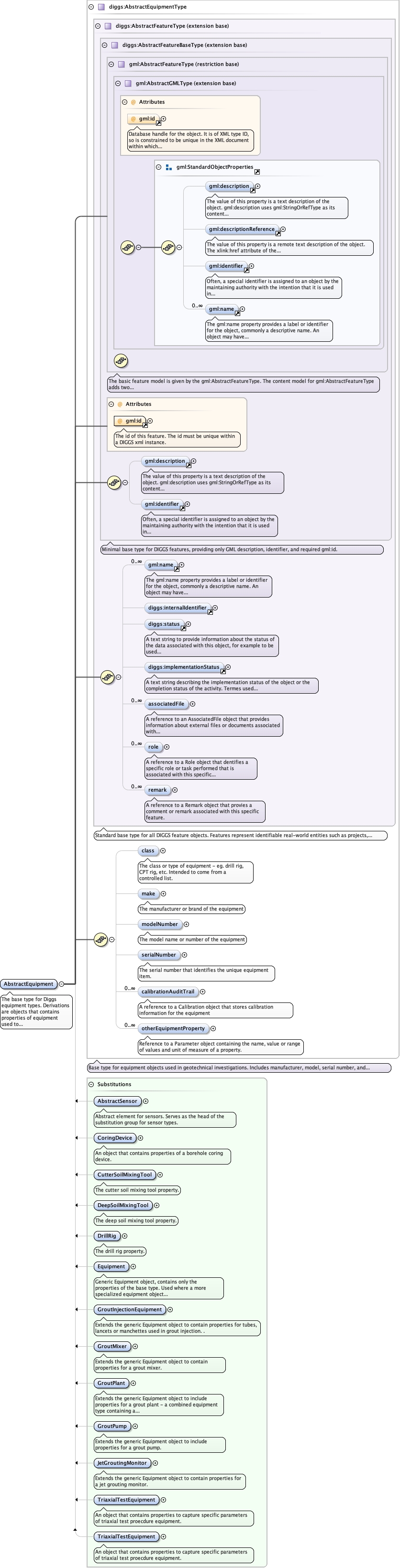

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeAbstractTypes_xsd_Element_diggs_AbstractSensor.tmp#AbstractSensorCore_xsd_Element_diggs_CoringDevice.tmp#CoringDeviceGrouting_xsd_Element_diggs_CutterSoilMixingTool.tmp#CutterSoilMixingToolGrouting_xsd_Element_diggs_DeepSoilMixingTool.tmp#DeepSoilMixingToolCore_xsd_Element_diggs_DrillRig.tmp#DrillRigCore_xsd_Element_diggs_Equipment.tmp#EquipmentGrouting_xsd_Element_diggs_GroutInjectionEquipment.tmp#GroutInjectionEquipmentGrouting_xsd_Element_diggs_GroutMixer.tmp#GroutMixerGrouting_xsd_Element_diggs_GroutPlant.tmp#GroutPlantGrouting_xsd_Element_diggs_GroutPump.tmp#GroutPumpGrouting_xsd_Element_diggs_JetGroutingMonitor.tmp#JetGroutingMonitorCore_xsd_Element_diggs_TriaxialTestEquipment.tmp#http___diggsml.org_schemas_3_TriaxialTestEquipmentDiggs_geo_deprecated_xsd_Element_diggs_geo_TriaxialTestEquipment.tmp#TriaxialTestEquipment
Type diggs:AbstractEquipmentType
Type hierarchy
Properties
content complex
abstract true
Substitution Group
Used by
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, gml:description, gml:identifier, gml:name
Instance

<diggs:AbstractEquipment gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:class codeSpace="">{0,1}</diggs:class>
  <diggs:make>{0,1}</diggs:make>
  <diggs:modelNumber>{0,1}</diggs:modelNumber>
  <diggs:serialNumber>{0,1}</diggs:serialNumber>
  <diggs:calibrationAuditTrail>{0,unbounded}</diggs:calibrationAuditTrail>
  <diggs:otherEquipmentProperty>{0,unbounded}</diggs:otherEquipmentProperty>
</diggs:AbstractEquipment>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="AbstractEquipment" abstract="true" type="diggs:AbstractEquipmentType">
  <annotation>
    <documentation>The base type for Diggs equipment types. Derivations are objects that contains properties of equipment used to construct, test, or monitor objects within the geotechnical and geoenvironmental domains.</documentation>
  </annotation>
</element>
