Element diggs_geo:TriaxialTestEquipment
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

An object that contains properties to capture specific parameters of triaxial test proecdure equipment.

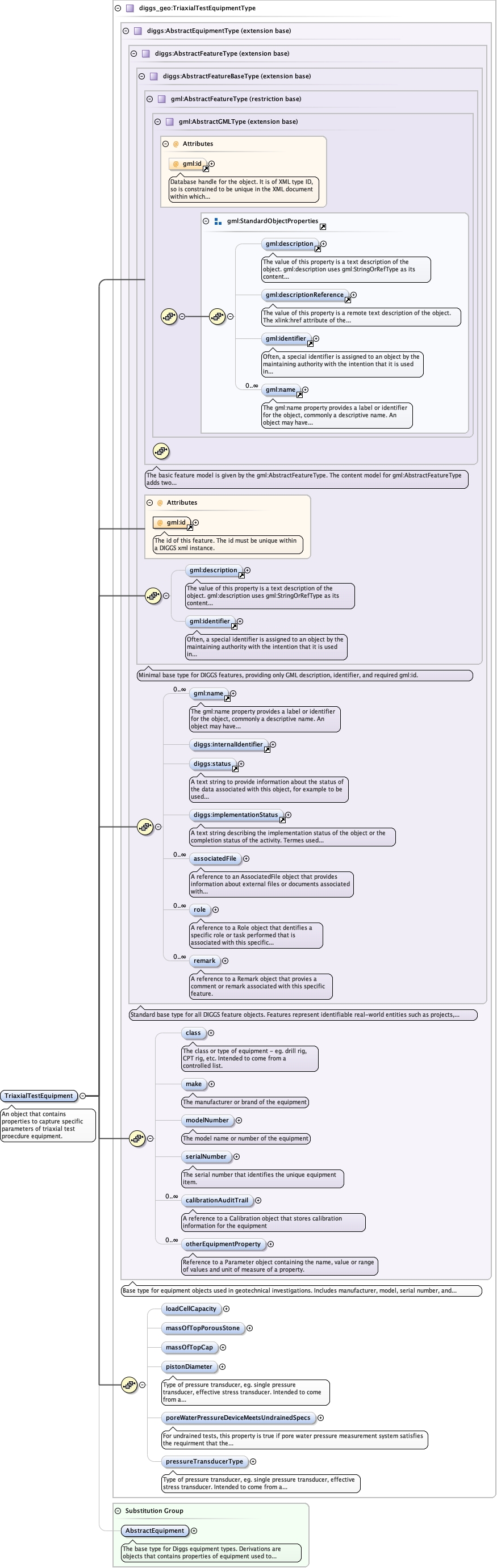

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_3_geotechnical_TriaxialTestEquipmentType_loadCellCapacityDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_3_geotechnical_TriaxialTestEquipmentType_massOfTopPorousStoneDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_3_geotechnical_TriaxialTestEquipmentType_massOfTopCapDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_3_geotechnical_TriaxialTestEquipmentType_pistonDiameterDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_3_geotechnical_TriaxialTestEquipmentType_poreWaterPressureDeviceMeetsUndrainedSpecsDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_3_geotechnical_TriaxialTestEquipmentType_pressureTransducerTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_TriaxialTestEquipmentType.tmp#http___diggsml.org_schemas_3_geotechnical_TriaxialTestEquipmentTypeAbstractTypes_xsd_Element_diggs_AbstractEquipment.tmp#AbstractEquipment
Type diggs_geo:TriaxialTestEquipmentType
Type hierarchy
Properties
content complex
abstract false
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:calibrationAuditTrail, diggs:class, diggs:implementationStatus, diggs:internalIdentifier, diggs:make, diggs:modelNumber, diggs:otherEquipmentProperty, diggs:remark, diggs:role, diggs:serialNumber, diggs:status, diggs_geo:loadCellCapacity, diggs_geo:massOfTopCap, diggs_geo:massOfTopPorousStone, diggs_geo:pistonDiameter, diggs_geo:poreWaterPressureDeviceMeetsUndrainedSpecs, diggs_geo:pressureTransducerType, gml:description, gml:identifier, gml:name
Instance

<diggs_geo:TriaxialTestEquipment gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:class codeSpace="">{0,1}</diggs:class>
  <diggs:make>{0,1}</diggs:make>
  <diggs:modelNumber>{0,1}</diggs:modelNumber>
  <diggs:serialNumber>{0,1}</diggs:serialNumber>
  <diggs:calibrationAuditTrail>{0,unbounded}</diggs:calibrationAuditTrail>
  <diggs:otherEquipmentProperty>{0,unbounded}</diggs:otherEquipmentProperty>
  <diggs_geo:loadCellCapacity howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:loadCellCapacity>
  <diggs_geo:massOfTopPorousStone howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:massOfTopPorousStone>
  <diggs_geo:massOfTopCap howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:massOfTopCap>
  <diggs_geo:pistonDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:pistonDiameter>
  <diggs_geo:poreWaterPressureDeviceMeetsUndrainedSpecs>{0,1}</diggs_geo:poreWaterPressureDeviceMeetsUndrainedSpecs>
  <diggs_geo:pressureTransducerType codeSpace="">{0,1}</diggs_geo:pressureTransducerType>
</diggs_geo:TriaxialTestEquipment>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="false" name="TriaxialTestEquipment" substitutionGroup="diggs:AbstractEquipment" type="diggs_geo:TriaxialTestEquipmentType">
  <annotation>
    <documentation>An object that contains properties to capture specific parameters of triaxial test proecdure equipment.</documentation>
  </annotation>
</element>
