Element diggs:DrillRig
Namespace http://diggsml.org/schemas/3
Annotations

The drill rig property.

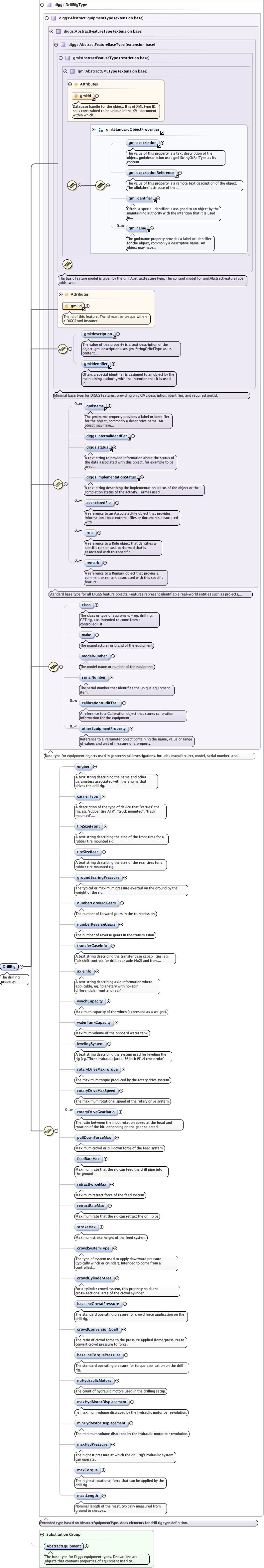

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_classAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_makeAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_modelNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_serialNumberAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_calibrationAuditTrailAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentType_otherEquipmentPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractEquipmentType.tmp#AbstractEquipmentTypeCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_engineCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_carrierTypeCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_tireSizeFrontCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_tireSizeRearCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_groundBearingPressureCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_numberForwardGearsCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_numberReverseGearsCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_transferCaseInfoCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_axleInfoCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_winchCapacityCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_waterTankCapacityCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_levelingSystemCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_rotaryDriveMaxTorqueCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_rotaryDriveMaxSpeedCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_rotaryDriveGearRatioCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_pullDownForceMaxCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_feedRateMaxCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_retractForceMaxCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_retractRateMaxCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_strokeMaxCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_crowdSystemTypeCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_crowdCylinderAreaCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_baselineCrowdPressureCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_crowdConversionCoeffCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_baselineTorquePressureCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_noHydraulicMotorsCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_maxHydMotorDisplacementCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_minHydMotorDisplacementCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_maxHydPressureCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_maxTorqueCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigType_mastLengthCore_xsd_Complex_Type_diggs_DrillRigType.tmp#DrillRigTypeAbstractTypes_xsd_Element_diggs_AbstractEquipment.tmp#AbstractEquipment
Type diggs:DrillRigType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:axleInfo, diggs:baselineCrowdPressure, diggs:baselineTorquePressure, diggs:calibrationAuditTrail, diggs:carrierType, diggs:class, diggs:crowdConversionCoeff, diggs:crowdCylinderArea, diggs:crowdSystemType, diggs:engine, diggs:feedRateMax, diggs:groundBearingPressure, diggs:implementationStatus, diggs:internalIdentifier, diggs:levelingSystem, diggs:make, diggs:mastLength, diggs:maxHydMotorDisplacement, diggs:maxHydPressure, diggs:maxTorque, diggs:minHydMotorDisplacement, diggs:modelNumber, diggs:noHydraulicMotors, diggs:numberForwardGears, diggs:numberReverseGears, diggs:otherEquipmentProperty, diggs:pullDownForceMax, diggs:remark, diggs:retractForceMax, diggs:retractRateMax, diggs:role, diggs:rotaryDriveGearRatio, diggs:rotaryDriveMaxSpeed, diggs:rotaryDriveMaxTorque, diggs:serialNumber, diggs:status, diggs:strokeMax, diggs:tireSizeFront, diggs:tireSizeRear, diggs:transferCaseInfo, diggs:waterTankCapacity, diggs:winchCapacity, gml:description, gml:identifier, gml:name
Instance

<diggs:DrillRig gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:class codeSpace="">{0,1}</diggs:class>
  <diggs:make>{0,1}</diggs:make>
  <diggs:modelNumber>{0,1}</diggs:modelNumber>
  <diggs:serialNumber>{0,1}</diggs:serialNumber>
  <diggs:calibrationAuditTrail>{0,unbounded}</diggs:calibrationAuditTrail>
  <diggs:otherEquipmentProperty>{0,unbounded}</diggs:otherEquipmentProperty>
  <diggs:engine>{0,1}</diggs:engine>
  <diggs:carrierType codeSpace="">{0,1}</diggs:carrierType>
  <diggs:tireSizeFront>{0,1}</diggs:tireSizeFront>
  <diggs:tireSizeRear>{0,1}</diggs:tireSizeRear>
  <diggs:groundBearingPressure howDetermined="" qualifier="" uom="">{0,1}</diggs:groundBearingPressure>
  <diggs:numberForwardGears>{0,1}</diggs:numberForwardGears>
  <diggs:numberReverseGears>{0,1}</diggs:numberReverseGears>
  <diggs:transferCaseInfo>{0,1}</diggs:transferCaseInfo>
  <diggs:axleInfo>{0,1}</diggs:axleInfo>
  <diggs:winchCapacity howDetermined="" qualifier="" uom="" winchLocation="">{0,1}</diggs:winchCapacity>
  <diggs:waterTankCapacity howDetermined="" qualifier="" uom="">{0,1}</diggs:waterTankCapacity>
  <diggs:levelingSystem>{0,1}</diggs:levelingSystem>
  <diggs:rotaryDriveMaxTorque howDetermined="" qualifier="" uom="">{0,1}</diggs:rotaryDriveMaxTorque>
  <diggs:rotaryDriveMaxSpeed howDetermined="" qualifier="" uom="">{0,1}</diggs:rotaryDriveMaxSpeed>
  <diggs:rotaryDriveGearRatio gearNumber="">{0,unbounded}</diggs:rotaryDriveGearRatio>
  <diggs:pullDownForceMax howDetermined="" qualifier="" uom="">{0,1}</diggs:pullDownForceMax>
  <diggs:feedRateMax howDetermined="" qualifier="" uom="">{0,1}</diggs:feedRateMax>
  <diggs:retractForceMax howDetermined="" qualifier="" uom="">{0,1}</diggs:retractForceMax>
  <diggs:retractRateMax howDetermined="" qualifier="" uom="">{0,1}</diggs:retractRateMax>
  <diggs:strokeMax howDetermined="" qualifier="" uom="">{0,1}</diggs:strokeMax>
  <diggs:crowdSystemType codeSpace="">{0,1}</diggs:crowdSystemType>
  <diggs:crowdCylinderArea howDetermined="" qualifier="" uom="">{0,1}</diggs:crowdCylinderArea>
  <diggs:baselineCrowdPressure howDetermined="" qualifier="" uom="">{0,1}</diggs:baselineCrowdPressure>
  <diggs:crowdConversionCoeff>{0,1}</diggs:crowdConversionCoeff>
  <diggs:baselineTorquePressure howDetermined="" qualifier="" uom="">{0,1}</diggs:baselineTorquePressure>
  <diggs:noHydraulicMotors>{0,1}</diggs:noHydraulicMotors>
  <diggs:maxHydMotorDisplacement howDetermined="" qualifier="" uom="">{0,1}</diggs:maxHydMotorDisplacement>
  <diggs:minHydMotorDisplacement howDetermined="" qualifier="" uom="">{0,1}</diggs:minHydMotorDisplacement>
  <diggs:maxHydPressure howDetermined="" qualifier="" uom="">{0,1}</diggs:maxHydPressure>
  <diggs:maxTorque howDetermined="" qualifier="" uom="">{0,1}</diggs:maxTorque>
  <diggs:mastLength howDetermined="" qualifier="" uom="">{0,1}</diggs:mastLength>
</diggs:DrillRig>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="DrillRig" substitutionGroup="diggs:AbstractEquipment" type="diggs:DrillRigType">
  <annotation>
    <documentation>The drill rig property.</documentation>
  </annotation>
</element>
