Namespace http://diggsml.org/schemas/3
Annotations
An abstract element that shall be substituted by one of its
subtypes.

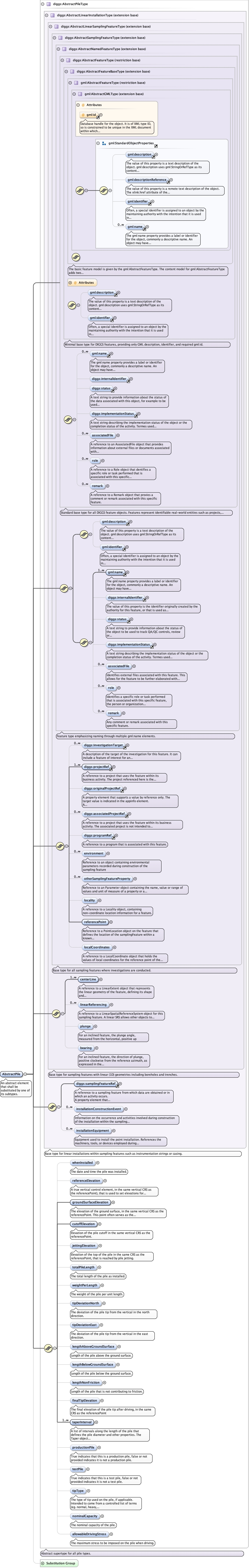

Diagram
Type diggs:AbstractPileType
Type hierarchy
Properties
content
complex
abstract
true
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name+ ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget* ,
diggs:projectRef+ ,
diggs:originalProjectRef{0,1} ,
diggs:associatedProjectRef* ,
diggs:programRef{0,1} ,
diggs:environment* ,
diggs:otherSamplingFeatureProperty* ,
diggs:locality{0,1} ,
diggs:referencePoint ,
diggs:localCoordinates{0,1} ,
diggs:centerLine+ ,
diggs:linearReferencing* ,
diggs:plunge{0,1} ,
diggs:bearing{0,1} ,
diggs:samplingFeatureRef ,
diggs:installationConstructionEvent* ,
diggs:installationEquipment* ,
diggs:whenInstalled{0,1} ,
diggs:referenceElevation{0,1} ,
diggs:groundSurfaceElevation ,
diggs:cutoffElevation ,
diggs:jettingElevation{0,1} ,
diggs:totalPileLength{0,1} ,
diggs:weightPerLength{0,1} ,
diggs:tipDeviationNorth{0,1} ,
diggs:tipDeviationEast{0,1} ,
diggs:lengthAboveGroundSurface{0,1} ,
diggs:lengthBelowGroundSurface{0,1} ,
diggs:lengthNonFriction{0,1} ,
diggs:finalTipElevation{0,1} ,
diggs:taperInterval+ ,
diggs:productionPile{0,1} ,
diggs:testPile{0,1} ,
diggs:tipType{0,1} ,
diggs:nominalCapacity{0,1} ,
diggs:allowableDrivingStress{0,1}
Children diggs:allowableDrivingStress diggs:associatedFile diggs:associatedProjectRef diggs:bearing diggs:centerLine diggs:cutoffElevation diggs:environment diggs:finalTipElevation diggs:groundSurfaceElevation diggs:implementationStatus diggs:installationConstructionEvent diggs:installationEquipment diggs:internalIdentifier diggs:investigationTarget diggs:jettingElevation diggs:lengthAboveGroundSurface diggs:lengthBelowGroundSurface diggs:lengthNonFriction diggs:linearReferencing diggs:localCoordinates diggs:locality diggs:nominalCapacity diggs:originalProjectRef diggs:otherSamplingFeatureProperty diggs:plunge diggs:productionPile diggs:programRef diggs:projectRef diggs:referenceElevation diggs:referencePoint diggs:remark diggs:role diggs:samplingFeatureRef diggs:status diggs:taperInterval diggs:testPile diggs:tipDeviationEast diggs:tipDeviationNorth diggs:tipType diggs:totalPileLength diggs:weightPerLength diggs:whenInstalled gml:description gml:identifier gml:name
Instance
<diggs:AbstractPile gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {1,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:investigationTarget > {0,unbounded} </diggs:investigationTarget>
<diggs:projectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:projectRef>
<diggs:originalProjectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:originalProjectRef>
<diggs:associatedProjectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedProjectRef>
<diggs:programRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:programRef>
<diggs:environment > {0,unbounded} </diggs:environment>
<diggs:otherSamplingFeatureProperty > {0,unbounded} </diggs:otherSamplingFeatureProperty>
<diggs:locality > {0,1} </diggs:locality>
<diggs:referencePoint xlink:role= "" xlink:actuate= "" xlink:show= "" xlink:arcrole= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:referencePoint>
<diggs:localCoordinates > {0,1} </diggs:localCoordinates>
<diggs:centerLine xlink:actuate= "" xlink:role= "" xlink:arcrole= "" xlink:show= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,unbounded} </diggs:centerLine>
<diggs:linearReferencing > {0,unbounded} </diggs:linearReferencing>
<diggs:plunge howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:plunge>
<diggs:bearing howDetermined= "" qualifier= "" refAzimuth= "" uom= "" > {0,1} </diggs:bearing>
<diggs:samplingFeatureRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,1} </diggs:samplingFeatureRef>
<diggs:installationConstructionEvent > {0,unbounded} </diggs:installationConstructionEvent>
<diggs:installationEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:installationEquipment>
<diggs:whenInstalled gml:id= "" > {0,1} </diggs:whenInstalled>
<diggs:referenceElevation howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:referenceElevation>
<diggs:groundSurfaceElevation howDetermined= "" qualifier= "" uom= "" > {1,1} </diggs:groundSurfaceElevation>
<diggs:cutoffElevation howDetermined= "" qualifier= "" uom= "" > {1,1} </diggs:cutoffElevation>
<diggs:jettingElevation howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:jettingElevation>
<diggs:totalPileLength howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:totalPileLength>
<diggs:weightPerLength howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:weightPerLength>
<diggs:tipDeviationNorth howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:tipDeviationNorth>
<diggs:tipDeviationEast howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:tipDeviationEast>
<diggs:lengthAboveGroundSurface howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:lengthAboveGroundSurface>
<diggs:lengthBelowGroundSurface howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:lengthBelowGroundSurface>
<diggs:lengthNonFriction howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:lengthNonFriction>
<diggs:finalTipElevation howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:finalTipElevation>
<diggs:taperInterval > {1,unbounded} </diggs:taperInterval>
<diggs:productionPile > {0,1} </diggs:productionPile>
<diggs:testPile > {0,1} </diggs:testPile>
<diggs:tipType codeSpace= "" > {0,1} </diggs:tipType>
<diggs:nominalCapacity howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:nominalCapacity>
<diggs:allowableDrivingStress howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:allowableDrivingStress>
</diggs:AbstractPile>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element abstract= "true" name= "AbstractPile" type= "diggs:AbstractPileType" substitutionGroup= "diggs:AbstractLinearInstallation" >
<annotation >
<documentation > An abstract element that shall be substituted by one of its subtypes. </documentation>
</annotation>
</element>
