Element diggs:AbstractSamplingFeatureType / diggs:environment
Namespace http://diggsml.org/schemas/3
Annotations

Reference to an object containing environmental
parameters recorded during construction of the sampling
feature

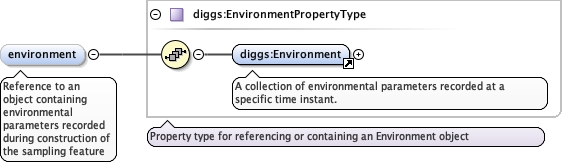

Diagram
DiagramCommon_xsd_Element_diggs_Environment.tmp#EnvironmentCommon_xsd_Complex_Type_diggs_EnvironmentPropertyType.tmp#EnvironmentPropertyType
Type diggs:EnvironmentPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Environment
Instance

<diggs:environment xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Environment gml:id="">{1,1}</diggs:Environment>
</diggs:environment>
Source

<element maxOccurs="unbounded" minOccurs="0" name="environment" type="diggs:EnvironmentPropertyType">
  <annotation>
    <documentation>Reference to an object containing environmental parameters recorded during construction of the sampling feature</documentation>
  </annotation>
</element>
Element diggs:AbstractSamplingFeatureType / diggs:otherSamplingFeatureProperty
Namespace http://diggsml.org/schemas/3
Annotations

Reference to an Parameter object containing the name,
value or range of values and unit of measure of a property or a
measurement parameter.

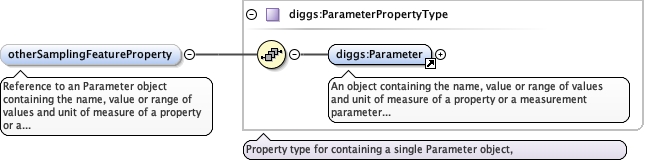

Diagram
DiagramCommon_xsd_Element_diggs_Parameter.tmp#ParameterCommon_xsd_Complex_Type_diggs_ParameterPropertyType.tmp#ParameterPropertyType
Type diggs:ParameterPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:Parameter
Instance

<diggs:otherSamplingFeatureProperty xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Parameter gml:id="" index="">{1,1}</diggs:Parameter>
</diggs:otherSamplingFeatureProperty>
Source

<element maxOccurs="unbounded" minOccurs="0" name="otherSamplingFeatureProperty" type="diggs:ParameterPropertyType">
  <annotation>
    <documentation>Reference to an Parameter object containing the name, value or range of values and unit of measure of a property or a measurement parameter.</documentation>
  </annotation>
</element>
Element diggs:AbstractSamplingFeatureType / diggs:locality
Namespace http://diggsml.org/schemas/3
Annotations

A reference to a Locality object, containing
non-coordinate location information for a feature.

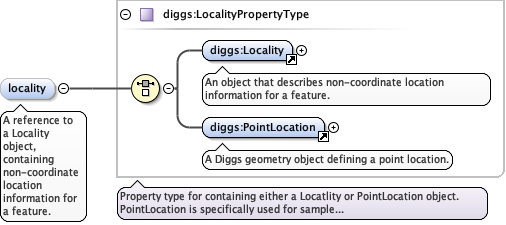

Diagram
DiagramCommon_xsd_Element_diggs_Locality.tmp#LocalityCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCommon_xsd_Complex_Type_diggs_LocalityPropertyType.tmp#LocalityPropertyType
Type diggs:LocalityPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:Locality, diggs:PointLocation
Instance

<diggs:locality xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Locality gml:id="">{1,1}</diggs:Locality>
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:locality>
Source

<element name="locality" type="diggs:LocalityPropertyType" minOccurs="0" maxOccurs="1">
  <annotation>
    <documentation>A reference to a Locality object, containing non-coordinate location information for a feature.</documentation>
  </annotation>
</element>
Element diggs:AbstractSamplingFeatureType / diggs:referencePoint
Namespace http://diggsml.org/schemas/3
Annotations

Reference to a PointLocation object on the feature that
defines the location of the samplingFeature within a known spatial
3D CRS or compound CRS (geographic or projected 2D CRS, plus a
vertical CRS).

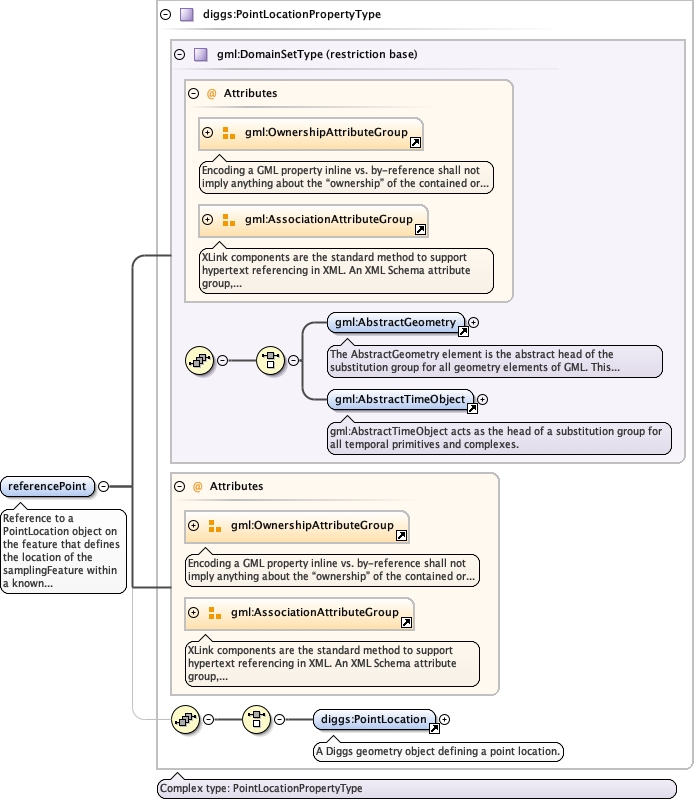

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_PointLocation.tmp#PointLocationCore_xsd_Complex_Type_diggs_PointLocationPropertyType.tmp#PointLocationPropertyType
Type diggs:PointLocationPropertyType
Type hierarchy
Properties
content complex
minOccurs 1
Model
Children diggs:PointLocation
Instance

<diggs:referencePoint xlink:role="" xlink:actuate="" xlink:show="" xlink:arcrole="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:PointLocation axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:PointLocation>
</diggs:referencePoint>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element name="referencePoint" type="diggs:PointLocationPropertyType" minOccurs="1">
  <annotation>
    <documentation>Reference to a PointLocation object on the feature that defines the location of the samplingFeature within a known spatial 3D CRS or compound CRS (geographic or projected 2D CRS, plus a vertical CRS).</documentation>
  </annotation>
</element>
Element diggs:AbstractSamplingFeatureType / diggs:localCoordinates
Namespace http://diggsml.org/schemas/3
Annotations

A reference to a LocalCoordinate object that holds the
values of local coordinates for the reference point of the
associated feature.
Diagram
DiagramCommon_xsd_Element_diggs_LocalCoordinate.tmp#LocalCoordinateCommon_xsd_Complex_Type_diggs_LocalCoordinatePropertyType.tmp#LocalCoordinatePropertyType
Type diggs:LocalCoordinatePropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:LocalCoordinate
Instance

<diggs:localCoordinates xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LocalCoordinate owns="false">{1,1}</diggs:LocalCoordinate>
</diggs:localCoordinates>
Source

<element minOccurs="0" name="localCoordinates" type="diggs:LocalCoordinatePropertyType">
  <annotation>
    <documentation>A reference to a LocalCoordinate object that holds the values of local coordinates for the reference point of the associated feature.</documentation>
  </annotation>
</element>
Complex Type diggs:AbstractSamplingFeatureType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for all sampling features where investigations are conducted.

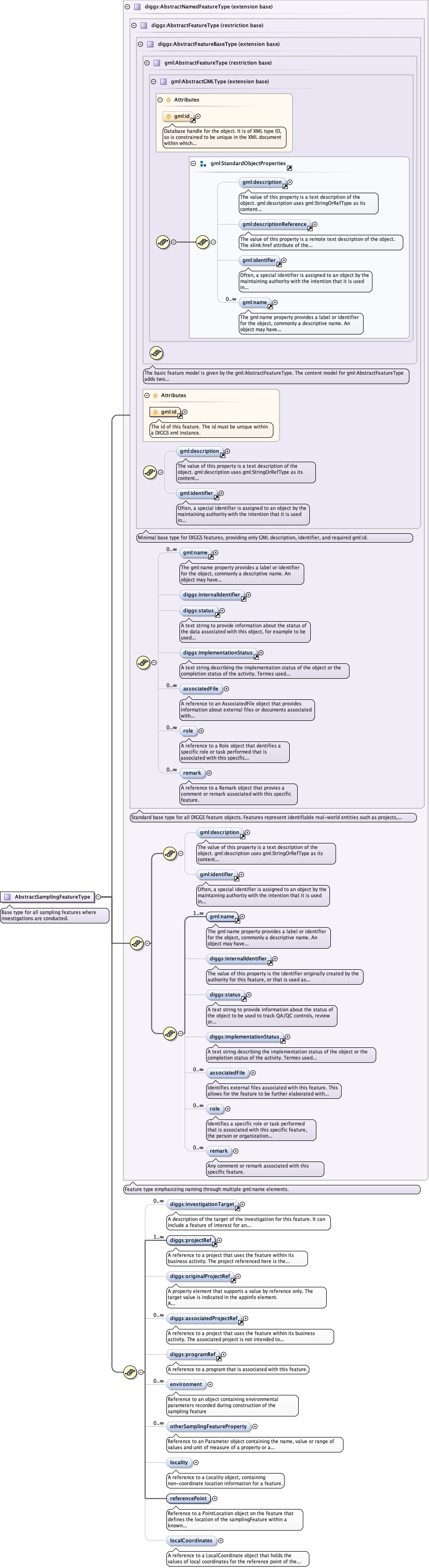

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefCommon_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefCommon_xsd_Element_diggs_programRef.tmp#programRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinates
Type extension of diggs:AbstractNamedFeatureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:associatedProjectRef, diggs:environment, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:localCoordinates, diggs:locality, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:programRef, diggs:projectRef, diggs:referencePoint, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractSamplingFeatureType" abstract="true">
  <annotation>
    <documentation>Base type for all sampling features where investigations are conducted.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractNamedFeatureType">
      <sequence>
        <element ref="diggs:investigationTarget" maxOccurs="unbounded" minOccurs="0"/>
        <element ref="diggs:projectRef" maxOccurs="unbounded"/>
        <element minOccurs="0" ref="diggs:originalProjectRef"/>
        <element maxOccurs="unbounded" minOccurs="0" ref="diggs:associatedProjectRef"/>
        <element minOccurs="0" ref="diggs:programRef"/>
        <element maxOccurs="unbounded" minOccurs="0" name="environment" type="diggs:EnvironmentPropertyType">
          <annotation>
            <documentation>Reference to an object containing environmental parameters recorded during construction of the sampling feature</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="otherSamplingFeatureProperty" type="diggs:ParameterPropertyType">
          <annotation>
            <documentation>Reference to an Parameter object containing the name, value or range of values and unit of measure of a property or a measurement parameter.</documentation>
          </annotation>
        </element>
        <element name="locality" type="diggs:LocalityPropertyType" minOccurs="0" maxOccurs="1">
          <annotation>
            <documentation>A reference to a Locality object, containing non-coordinate location information for a feature.</documentation>
          </annotation>
        </element>
        <element name="referencePoint" type="diggs:PointLocationPropertyType" minOccurs="1">
          <annotation>
            <documentation>Reference to a PointLocation object on the feature that defines the location of the samplingFeature within a known spatial 3D CRS or compound CRS (geographic or projected 2D CRS, plus a vertical CRS).</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="localCoordinates" type="diggs:LocalCoordinatePropertyType">
          <annotation>
            <documentation>A reference to a LocalCoordinate object that holds the values of local coordinates for the reference point of the associated feature.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
