Complex Type diggs:AbstractPointSamplingFeatureType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for all point sampling features - discrete locations where
samples are collected or measurements made. Point sampling features represent
zero-dimensional sampling positions at the scale of the investigation. Examples
include CPT soundings, groundwater monitoring points, surface soil sample locations,
and probe test positions. While these features may have physical dimensions (e.g., a
monitoring well has a diameter), they are treated as points because their spatial
extent is negligible compared to the investigation area. Point features are
characterized by a single location coordinate.

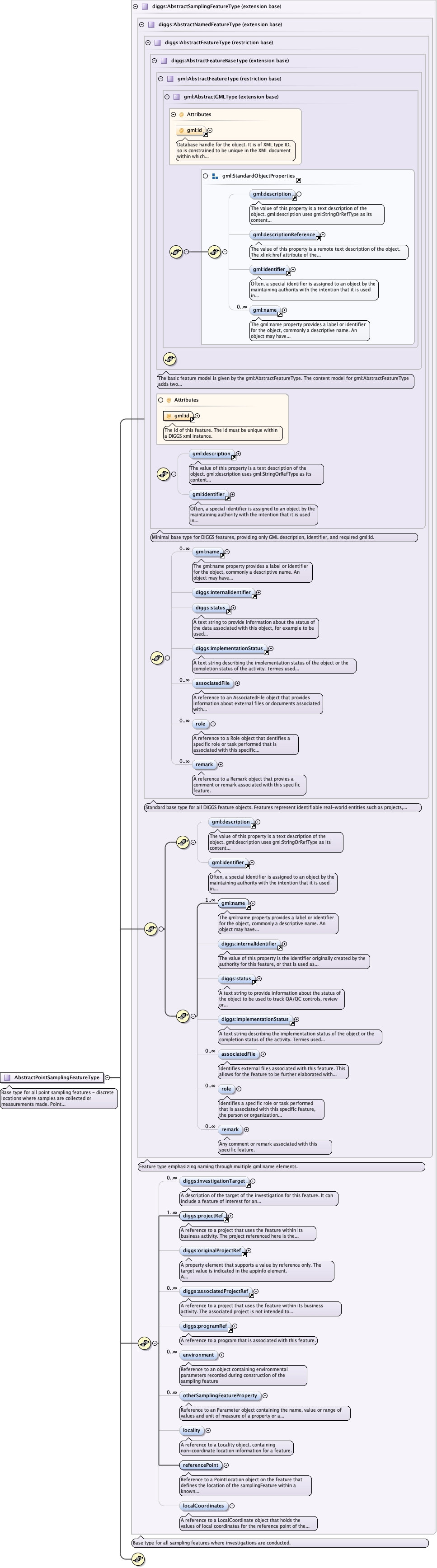

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefCommon_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefCommon_xsd_Element_diggs_programRef.tmp#programRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinatesAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType
Type extension of diggs:AbstractSamplingFeatureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:associatedProjectRef, diggs:environment, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:localCoordinates, diggs:locality, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:programRef, diggs:projectRef, diggs:referencePoint, diggs:remark, diggs:role, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="AbstractPointSamplingFeatureType">
  <annotation>
    <documentation>Base type for all point sampling features - discrete locations where samples are collected or measurements made. Point sampling features represent zero-dimensional sampling positions at the scale of the investigation. Examples include CPT soundings, groundwater monitoring points, surface soil sample locations, and probe test positions. While these features may have physical dimensions (e.g., a monitoring well has a diameter), they are treated as points because their spatial extent is negligible compared to the investigation area. Point features are characterized by a single location coordinate.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractSamplingFeatureType">
      <sequence>
      </sequence>
    </extension>
  </complexContent>
</complexType>
