Element diggs:StationType / diggs:type
Namespace http://diggsml.org/schemas/3
Annotations

A definition of the type of station (eg. outcrop, survey
marker, etc.). This is intended to come from a list controlled by an
authority.

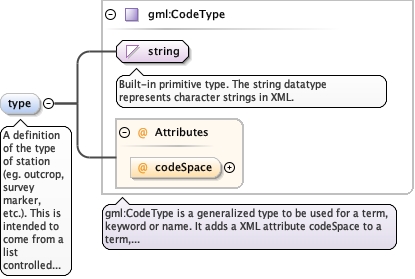

Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element minOccurs="0" name="type" type="gml:CodeType">
  <annotation>
    <documentation>A definition of the type of station (eg. outcrop, survey marker, etc.). This is intended to come from a list controlled by an authority.</documentation>
  </annotation>
</element>
Complex Type diggs:StationType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractPointSamplingFeatureType. Adds elements
for station type definition.

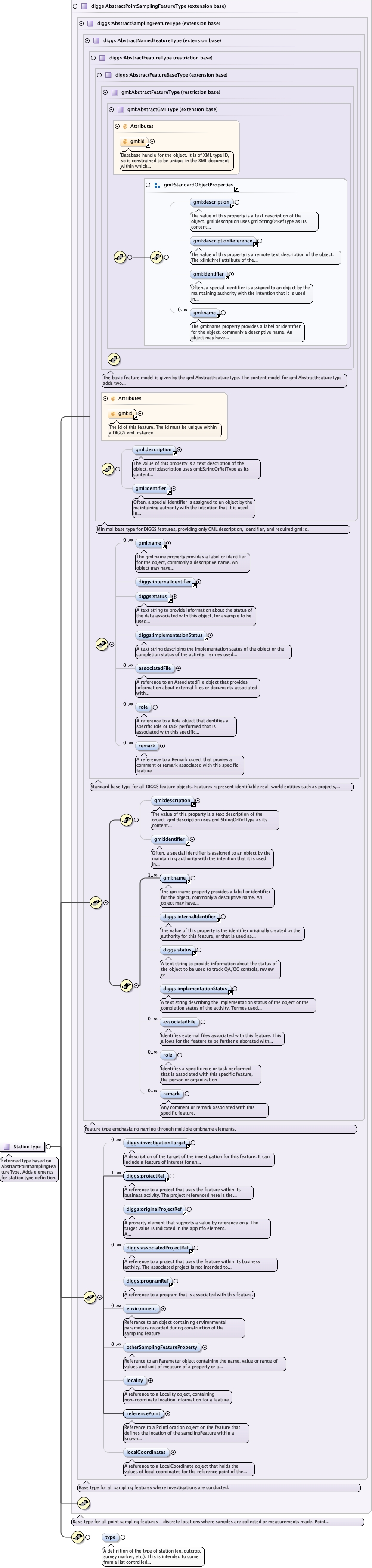

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefCommon_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefCommon_xsd_Element_diggs_programRef.tmp#programRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinatesAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureTypeExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractPointSamplingFeatureType.tmp#AbstractPointSamplingFeatureTypeExtSamplingFeatures_xsd_Complex_Type_diggs_StationType.tmp#StationType_type
Type extension of diggs:AbstractPointSamplingFeatureType
Type hierarchy
Used by
Element diggs:Station
Model
Children diggs:associatedFile, diggs:associatedProjectRef, diggs:environment, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:localCoordinates, diggs:locality, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:programRef, diggs:projectRef, diggs:referencePoint, diggs:remark, diggs:role, diggs:status, diggs:type, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="StationType">
  <annotation>
    <documentation>Extended type based on AbstractPointSamplingFeatureType. Adds elements for station type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractPointSamplingFeatureType">
      <sequence>
        <element minOccurs="0" name="type" type="gml:CodeType">
          <annotation>
            <documentation>A definition of the type of station (eg. outcrop, survey marker, etc.). This is intended to come from a list controlled by an authority.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
