Namespace http://diggsml.org/schemas/3
Annotations
A sampling feature that is a point in or on the earth's surface where
observations or tests are performed, where samples are collected, or where
monitoring devices are installed.

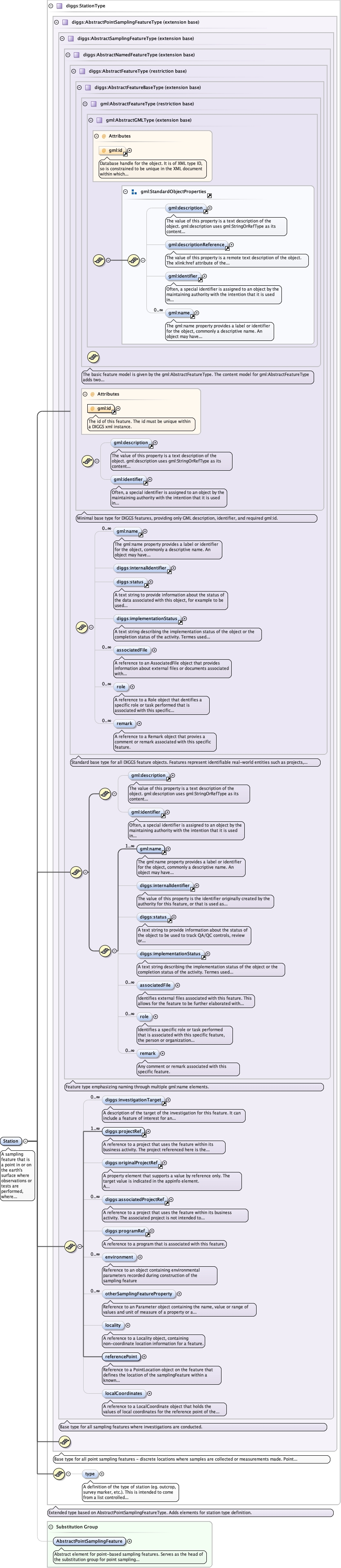

Diagram
Type diggs:StationType
Type hierarchy
Properties
content
complex
abstract
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name+ ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget* ,
diggs:projectRef+ ,
diggs:originalProjectRef{0,1} ,
diggs:associatedProjectRef* ,
diggs:programRef{0,1} ,
diggs:environment* ,
diggs:otherSamplingFeatureProperty* ,
diggs:locality{0,1} ,
diggs:referencePoint ,
diggs:localCoordinates{0,1} ,
diggs:type{0,1}
Children diggs:associatedFile diggs:associatedProjectRef diggs:environment diggs:implementationStatus diggs:internalIdentifier diggs:investigationTarget diggs:localCoordinates diggs:locality diggs:originalProjectRef diggs:otherSamplingFeatureProperty diggs:programRef diggs:projectRef diggs:referencePoint diggs:remark diggs:role diggs:status diggs:type gml:description gml:identifier gml:name
Instance
<diggs:Station gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {1,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:investigationTarget > {0,unbounded} </diggs:investigationTarget>
<diggs:projectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:projectRef>
<diggs:originalProjectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:originalProjectRef>
<diggs:associatedProjectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedProjectRef>
<diggs:programRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:programRef>
<diggs:environment > {0,unbounded} </diggs:environment>
<diggs:otherSamplingFeatureProperty > {0,unbounded} </diggs:otherSamplingFeatureProperty>
<diggs:locality > {0,1} </diggs:locality>
<diggs:referencePoint xlink:role= "" xlink:actuate= "" xlink:show= "" xlink:arcrole= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:referencePoint>
<diggs:localCoordinates > {0,1} </diggs:localCoordinates>
<diggs:type codeSpace= "" > {0,1} </diggs:type>
</diggs:Station>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element abstract= "false" name= "Station" substitutionGroup= "diggs:AbstractPointSamplingFeature" type= "diggs:StationType" >
<annotation >
<documentation > A sampling feature that is a point in or on the earth's surface where observations or tests are performed, where samples are collected, or where monitoring devices are installed. </documentation>
</annotation>
</element>
