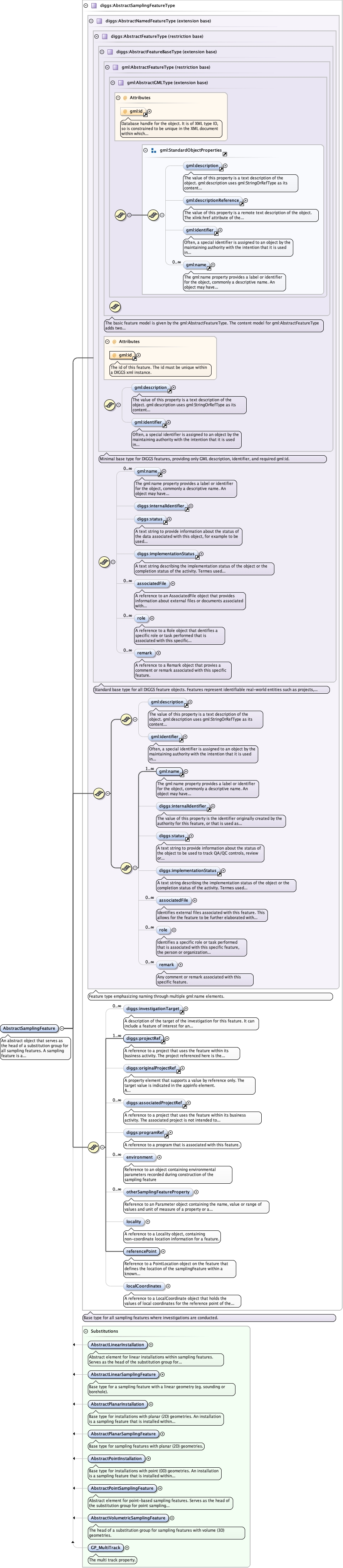

Schema documentation for component diggs:AbstractSamplingFeature

An abstract object that serves as the head of a substitution group for all sampling features. A sampling feature is a physical object or location through which we observe or measure properties of an investigation target, or perform some type of activity. It serves to define the dimensionality, extent, and local spatial reference system for zones where observations or activities take place.

<diggs:AbstractSamplingFeature gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{1,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:investigationTarget>{0,unbounded}</diggs:investigationTarget>
  <diggs:projectRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</diggs:projectRef>
  <diggs:originalProjectRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:originalProjectRef>
  <diggs:associatedProjectRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedProjectRef>
  <diggs:programRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:programRef>
  <diggs:environment>{0,unbounded}</diggs:environment>
  <diggs:otherSamplingFeatureProperty>{0,unbounded}</diggs:otherSamplingFeatureProperty>
  <diggs:locality>{0,1}</diggs:locality>
  <diggs:referencePoint xlink:role="" xlink:actuate="" xlink:show="" xlink:arcrole="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{1,1}</diggs:referencePoint>
  <diggs:localCoordinates>{0,1}</diggs:localCoordinates>
</diggs:AbstractSamplingFeature>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element abstract="true" name="AbstractSamplingFeature" type="diggs:AbstractSamplingFeatureType"> <annotation> <documentation>An abstract object that serves as the head of a substitution group for all sampling features. A sampling feature is a physical object or location through which we observe or measure properties of an investigation target, or perform some type of activity. It serves to define the dimensionality, extent, and local spatial reference system for zones where observations or activities take place.</documentation> </annotation> </element>
