Namespace http://diggsml.org/schemas/3
Annotations
A wall of a trench or pit dug into the ground and represented by a
PlanarSurface or MultiPlanar surface geometry.

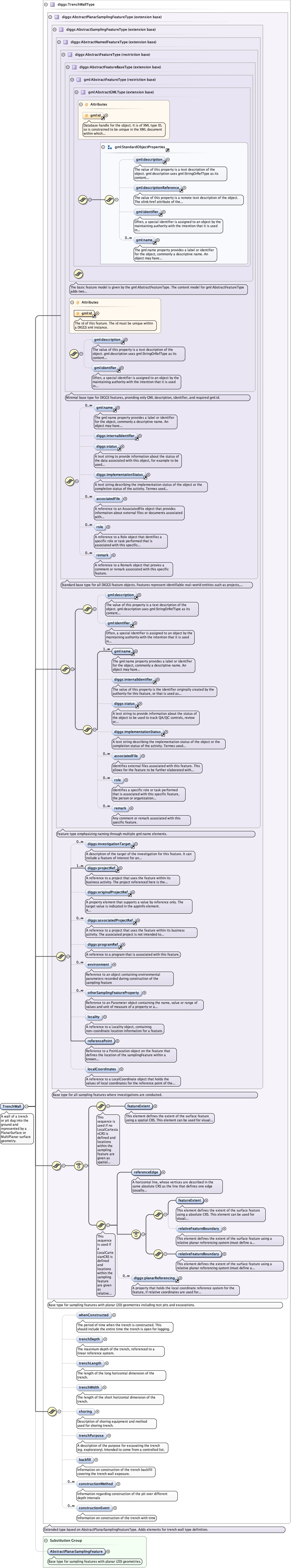

Diagram
Type diggs:TrenchWallType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name+ ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget* ,
diggs:projectRef+ ,
diggs:originalProjectRef{0,1} ,
diggs:associatedProjectRef* ,
diggs:programRef{0,1} ,
diggs:environment* ,
diggs:otherSamplingFeatureProperty* ,
diggs:locality{0,1} ,
diggs:referencePoint ,
diggs:localCoordinates{0,1} , ((
diggs:featureExtent ) | (
diggs:referenceEdge , ((
diggs:featureExtent ,
diggs:relativeFeatureBoundary{0,1} ) | (
diggs:relativeFeatureBoundary )) ,
diggs:planarReferencing* )) ,
diggs:whenConstructed{0,1} ,
diggs:trenchDepth{0,1} ,
diggs:trenchLength{0,1} ,
diggs:trenchWidth{0,1} ,
diggs:shoring{0,1} ,
diggs:trenchPurpose{0,1} ,
diggs:backfill{0,1} ,
diggs:constructionMethod* ,
diggs:constructionEvent*
Children diggs:associatedFile diggs:associatedProjectRef diggs:backfill diggs:constructionEvent diggs:constructionMethod diggs:environment diggs:featureExtent diggs:implementationStatus diggs:internalIdentifier diggs:investigationTarget diggs:localCoordinates diggs:locality diggs:originalProjectRef diggs:otherSamplingFeatureProperty diggs:planarReferencing diggs:programRef diggs:projectRef diggs:referenceEdge diggs:referencePoint diggs:relativeFeatureBoundary diggs:remark diggs:role diggs:shoring diggs:status diggs:trenchDepth diggs:trenchLength diggs:trenchPurpose diggs:trenchWidth diggs:whenConstructed gml:description gml:identifier gml:name
Instance
<diggs:TrenchWall gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {1,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:investigationTarget > {0,unbounded} </diggs:investigationTarget>
<diggs:projectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:projectRef>
<diggs:originalProjectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:originalProjectRef>
<diggs:associatedProjectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedProjectRef>
<diggs:programRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:programRef>
<diggs:environment > {0,unbounded} </diggs:environment>
<diggs:otherSamplingFeatureProperty > {0,unbounded} </diggs:otherSamplingFeatureProperty>
<diggs:locality > {0,1} </diggs:locality>
<diggs:referencePoint xlink:role= "" xlink:actuate= "" xlink:show= "" xlink:arcrole= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:referencePoint>
<diggs:localCoordinates > {0,1} </diggs:localCoordinates>
<diggs:featureExtent xlink:actuate= "" xlink:role= "" xlink:arcrole= "" xlink:show= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:featureExtent>
<diggs:referenceEdge xlink:actuate= "" xlink:role= "" xlink:arcrole= "" xlink:show= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:referenceEdge>
<diggs:featureExtent xlink:actuate= "" xlink:role= "" xlink:arcrole= "" xlink:show= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:featureExtent>
<diggs:relativeFeatureBoundary xlink:actuate= "" xlink:role= "" xlink:arcrole= "" xlink:show= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {0,1} </diggs:relativeFeatureBoundary>
<diggs:relativeFeatureBoundary xlink:actuate= "" xlink:role= "" xlink:arcrole= "" xlink:show= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:relativeFeatureBoundary>
<diggs:planarReferencing xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:planarReferencing>
<diggs:whenConstructed > {0,1} </diggs:whenConstructed>
<diggs:trenchDepth howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:trenchDepth>
<diggs:trenchLength howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:trenchLength>
<diggs:trenchWidth howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:trenchWidth>
<diggs:shoring > {0,1} </diggs:shoring>
<diggs:trenchPurpose codeSpace= "" > {0,1} </diggs:trenchPurpose>
<diggs:backfill > {0,1} </diggs:backfill>
<diggs:constructionMethod > {0,unbounded} </diggs:constructionMethod>
<diggs:constructionEvent > {0,unbounded} </diggs:constructionEvent>
</diggs:TrenchWall>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "TrenchWall" substitutionGroup= "diggs:AbstractPlanarSamplingFeature" type= "diggs:TrenchWallType" >
<annotation >
<documentation > A wall of a trench or pit dug into the ground and represented by a PlanarSurface or MultiPlanar surface geometry. </documentation>
</annotation>
</element>
