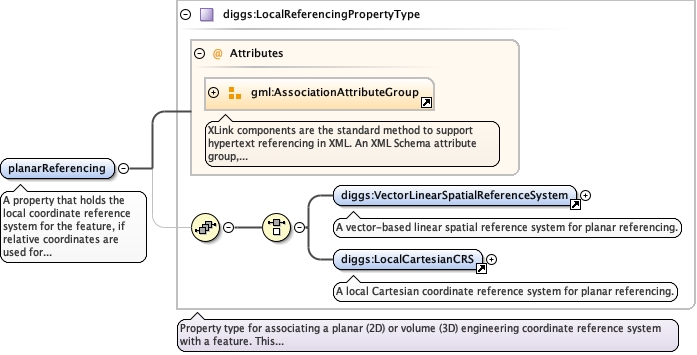

Schema documentation for component diggs:planarReferencing

A property that holds the local coordinate reference system for the feature, if relative coordinates are used for defining the feature and its properties instead of spatial coordinates. Beginning with version 3.0, this property is deprecated and should not be used. Instead, a LocalCartesianCRS should be defined in the crs property of DocumentInformation

<diggs:planarReferencing xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple" xmlns:diggs="http://diggsml.org/schemas/3"> <diggs:VectorLinearSpatialReferenceSystem gml:id="">{1,1}</diggs:VectorLinearSpatialReferenceSystem> <diggs:LocalCartesianCRS>{1,1}</diggs:LocalCartesianCRS> </diggs:planarReferencing>

QName

Type

Fixed

Use

Annotation

nilReason

gml:NilReasonType

optional

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

<element name="planarReferencing" type="diggs:LocalReferencingPropertyType"> <annotation> <documentation>A property that holds the local coordinate reference system for the feature, if relative coordinates are used for defining the feature and its properties instead of spatial coordinates. Beginning with version 3.0, this property is deprecated and should not be used. Instead, a LocalCartesianCRS should be defined in the crs property of DocumentInformation</documentation> </annotation> </element>
