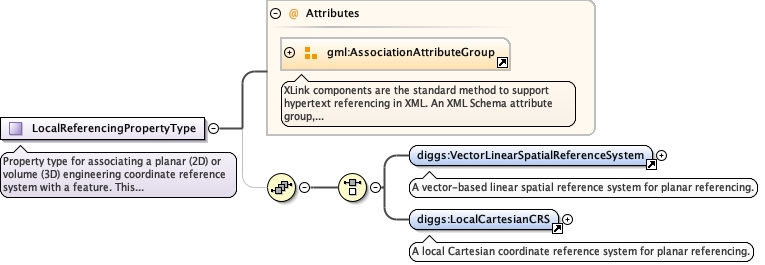

Schema documentation for component diggs:LocalReferencingPropertyType

Property type for associating a planar (2D) or volume (3D) engineering coordinate reference system with a feature. This allows the feature to use local 2D or 3D coordinates. Supports both vector-based linear reference systems and local Cartesian coordinate systems. As of version 3.0, the vector-based system is deprecated.

QName

Type

Fixed

Use

Annotation

nilReason

gml:NilReasonType

optional

xlink:actuate

restriction of string

optional

The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained

xlink:arcrole

anyURI

optional

xlink:href

anyURI

optional

xlink:role

anyURI

optional

xlink:show

restriction of string

optional

The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained

xlink:title

string

optional

xlink:type

string

simple

optional

<complexType name="LocalReferencingPropertyType"> <annotation> <documentation>Property type for associating a planar (2D) or volume (3D) engineering coordinate reference system with a feature. This allows the feature to use local 2D or 3D coordinates. Supports both vector-based linear reference systems and local Cartesian coordinate systems. As of version 3.0, the vector-based system is deprecated.</documentation> </annotation> <sequence minOccurs="0"> <choice> <element ref="diggs:VectorLinearSpatialReferenceSystem"> <annotation> <documentation>A vector-based linear spatial reference system for planar referencing.</documentation> </annotation> </element> <element ref="diggs:LocalCartesianCRS"> <annotation> <documentation>A local Cartesian coordinate reference system for planar referencing.</documentation> </annotation> </element> </choice> </sequence> <attributeGroup ref="gml:AssociationAttributeGroup"/> </complexType>
