Schema documentation for component diggs:LocalCartesianCRS

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Used by

Element diggs:LocalCartesianCRS

Namespace

http://diggsml.org/schemas/3

Annotations

A local Cartesian coordinate reference system with spatial positioning
information. This type extends the standard GML engineering CRS concept
by including explicit spatial definitions for the origin point and axis
orientations, enabling transformation between local and spatial coordinates.

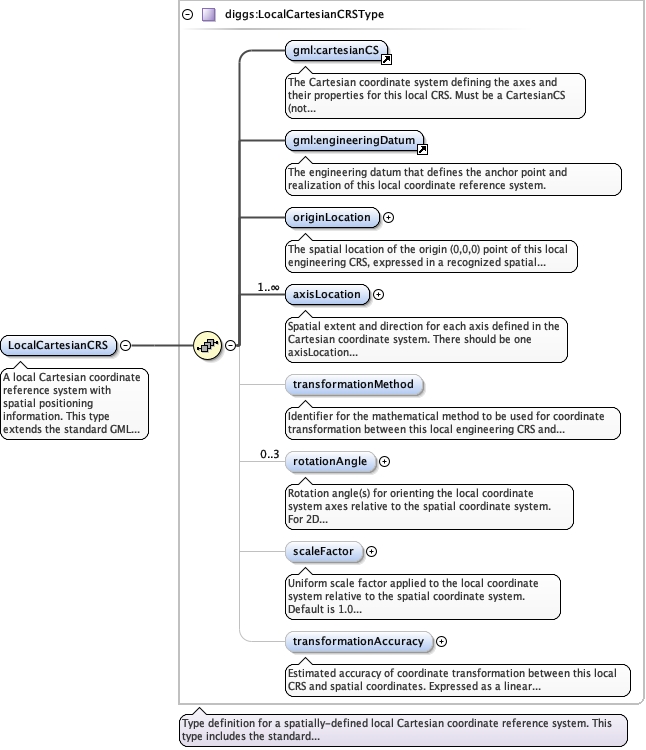

Diagram

Type

diggs:LocalCartesianCRSType

Type hierarchy

AbstractCRSType
- diggs:LocalCartesianCRSType

Properties

content

complex

Substitution Group Affiliation

http___www.opengis.net_gml_3.2_AbstractSingleCRS

Used by

Complex Types

diggs:LocalCartesianCRSPropertyType, diggs:LocalReferencingPropertyType

Model

cartesianCS , engineeringDatum , diggs:originLocation , diggs:axisLocation+ , diggs:transformationMethod{0,1} , diggs:rotationAngle{0,3} , diggs:scaleFactor{0,1} , diggs:transformationAccuracy{0,1}

Children

cartesianCS, diggs:axisLocation, diggs:originLocation, diggs:rotationAngle, diggs:scaleFactor, diggs:transformationAccuracy, diggs:transformationMethod, engineeringDatum

Instance

<diggs:LocalCartesianCRS xmlns:diggs="http://diggsml.org/schemas/3">
  <cartesianCS>{1,1}</cartesianCS>
  <engineeringDatum>{1,1}</engineeringDatum>
  <diggs:originLocation xlink:role="" xlink:actuate="" xlink:show="" xlink:arcrole="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{1,1}</diggs:originLocation>
  <diggs:axisLocation>{1,unbounded}</diggs:axisLocation>
  <diggs:transformationMethod>{0,1}</diggs:transformationMethod>
  <diggs:rotationAngle howDetermined="" qualifier="" uom="">{0,3}</diggs:rotationAngle>
  <diggs:scaleFactor>{0,1}</diggs:scaleFactor>
  <diggs:transformationAccuracy howDetermined="" qualifier="" uom="">{0,1}</diggs:transformationAccuracy>
</diggs:LocalCartesianCRS>

Source

<element name="LocalCartesianCRS" substitutionGroup="gml:AbstractSingleCRS" type="diggs:LocalCartesianCRSType">
  <annotation>
    <documentation>A local Cartesian coordinate reference system with spatial positioning information. This type extends the standard GML engineering CRS concept by including explicit spatial definitions for the origin point and axis orientations, enabling transformation between local and spatial coordinates.</documentation>
  </annotation>
</element>
