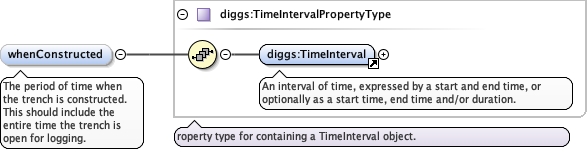

Element diggs:TrenchWallType / diggs:whenConstructed
Namespace http://diggsml.org/schemas/3
Annotations

The period of time when the trench is constructed. This
should include the entire time the trench is open for
logging.
Diagram
DiagramCommon_xsd_Element_diggs_TimeInterval.tmp#TimeIntervalCommon_xsd_Complex_Type_diggs_TimeIntervalPropertyType.tmp#TimeIntervalPropertyType
Type diggs:TimeIntervalPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:TimeInterval
Instance

<diggs:whenConstructed xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TimeInterval gml:id="">{1,1}</diggs:TimeInterval>
</diggs:whenConstructed>
Source

<element maxOccurs="1" minOccurs="0" name="whenConstructed" type="diggs:TimeIntervalPropertyType">
  <annotation>
    <documentation>The period of time when the trench is constructed. This should include the entire time the trench is open for logging.</documentation>
  </annotation>
</element>

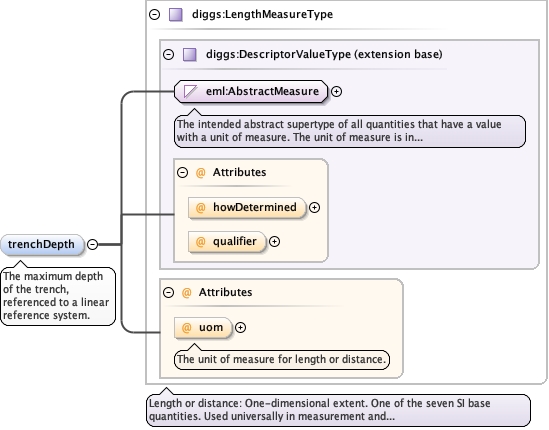

Element diggs:TrenchWallType / diggs:trenchDepth
Namespace http://diggsml.org/schemas/3
Annotations

The maximum depth of the trench, referenced to a linear
reference system.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="trenchDepth" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The maximum depth of the trench, referenced to a linear reference system.</documentation>
  </annotation>
</element>

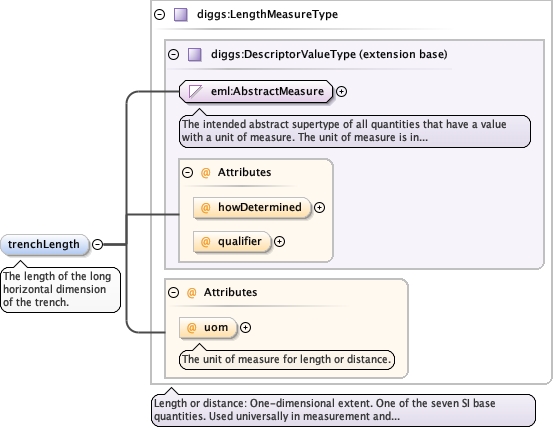

Element diggs:TrenchWallType / diggs:trenchLength
Namespace http://diggsml.org/schemas/3
Annotations

The length of the long horizontal dimension of the
trench.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element maxOccurs="1" minOccurs="0" name="trenchLength" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The length of the long horizontal dimension of the trench.</documentation>
  </annotation>
</element>

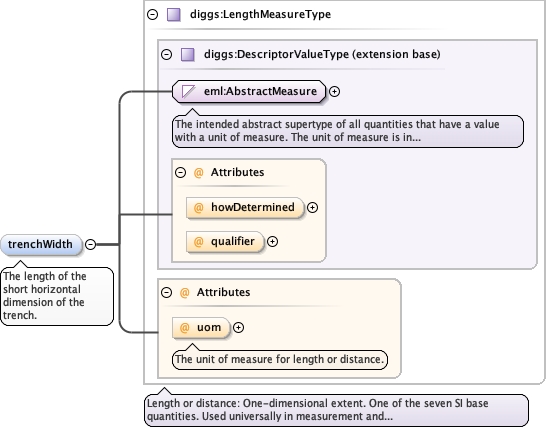

Element diggs:TrenchWallType / diggs:trenchWidth
Namespace http://diggsml.org/schemas/3
Annotations

The length of the short horizontal dimension of the
trench.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element maxOccurs="1" minOccurs="0" name="trenchWidth" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The length of the short horizontal dimension of the trench.</documentation>
  </annotation>
</element>
Element diggs:TrenchWallType / diggs:shoring
Namespace http://diggsml.org/schemas/3
Annotations

Description of shoring equipment and method used for
shoring trench.
Diagram
Diagram
Type string
Properties
content simple
minOccurs 0
maxOccurs 1
Source

<element maxOccurs="1" minOccurs="0" name="shoring" type="string">
  <annotation>
    <documentation>Description of shoring equipment and method used for shoring trench.</documentation>
  </annotation>
</element>

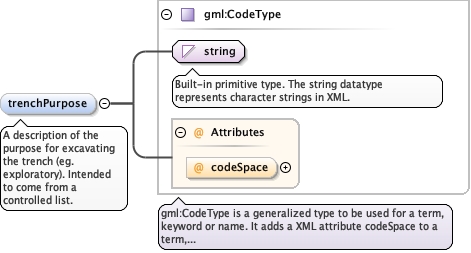

Element diggs:TrenchWallType / diggs:trenchPurpose
Namespace http://diggsml.org/schemas/3
Annotations

A description of the purpose for excavating the trench
(eg. exploratory). Intended to come from a controlled
list.
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element maxOccurs="1" minOccurs="0" name="trenchPurpose" type="gml:CodeType">
  <annotation>
    <documentation>A description of the purpose for excavating the trench (eg. exploratory). Intended to come from a controlled list.</documentation>
  </annotation>
</element>

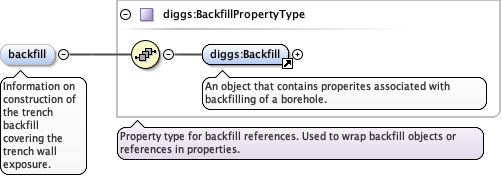

Element diggs:TrenchWallType / diggs:backfill
Namespace http://diggsml.org/schemas/3
Annotations

Information on construction of the trench backfill
covering the trench wall exposure.
Diagram
DiagramCore_xsd_Element_diggs_Backfill.tmp#BackfillCore_xsd_Complex_Type_diggs_BackfillPropertyType.tmp#BackfillPropertyType
Type diggs:BackfillPropertyType
Properties
content complex
minOccurs 0
Model
Children diggs:Backfill
Instance

<diggs:backfill xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Backfill gml:id="">{1,1}</diggs:Backfill>
</diggs:backfill>
Source

<element minOccurs="0" name="backfill" type="diggs:BackfillPropertyType">
  <annotation>
    <documentation>Information on construction of the trench backfill covering the trench wall exposure.</documentation>
  </annotation>
</element>

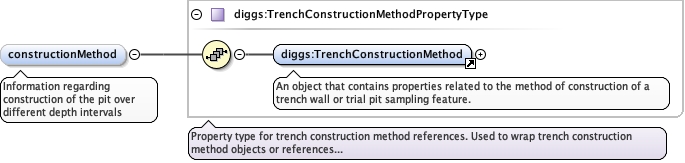

Element diggs:TrenchWallType / diggs:constructionMethod
Namespace http://diggsml.org/schemas/3
Annotations

Information regarding construction of the pit over
different depth intervals
Diagram
DiagramCore_xsd_Element_diggs_TrenchConstructionMethod.tmp#TrenchConstructionMethodCore_xsd_Complex_Type_diggs_TrenchConstructionMethodPropertyType.tmp#TrenchConstructionMethodPropertyType
Type diggs:TrenchConstructionMethodPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:TrenchConstructionMethod
Instance

<diggs:constructionMethod xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TrenchConstructionMethod gml:id="">{1,1}</diggs:TrenchConstructionMethod>
</diggs:constructionMethod>
Source

<element maxOccurs="unbounded" minOccurs="0" name="constructionMethod" type="diggs:TrenchConstructionMethodPropertyType">
  <annotation>
    <documentation>Information regarding construction of the pit over different depth intervals</documentation>
  </annotation>
</element>

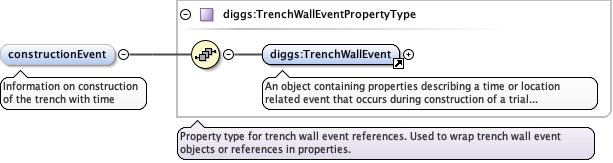

Element diggs:TrenchWallType / diggs:constructionEvent
Namespace http://diggsml.org/schemas/3
Annotations

Information on construction of the trench with
time
Diagram
DiagramExtSamplingFeatures_xsd_Element_diggs_TrenchWallEvent.tmp#TrenchWallEventExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallEventPropertyType.tmp#TrenchWallEventPropertyType
Type diggs:TrenchWallEventPropertyType
Properties
content complex
minOccurs 0
maxOccurs unbounded
Model
Children diggs:TrenchWallEvent
Instance

<diggs:constructionEvent xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:TrenchWallEvent gml:id="">{1,1}</diggs:TrenchWallEvent>
</diggs:constructionEvent>
Source

<element maxOccurs="unbounded" minOccurs="0" name="constructionEvent" type="diggs:TrenchWallEventPropertyType">
  <annotation>
    <documentation>Information on construction of the trench with time</documentation>
  </annotation>
</element>

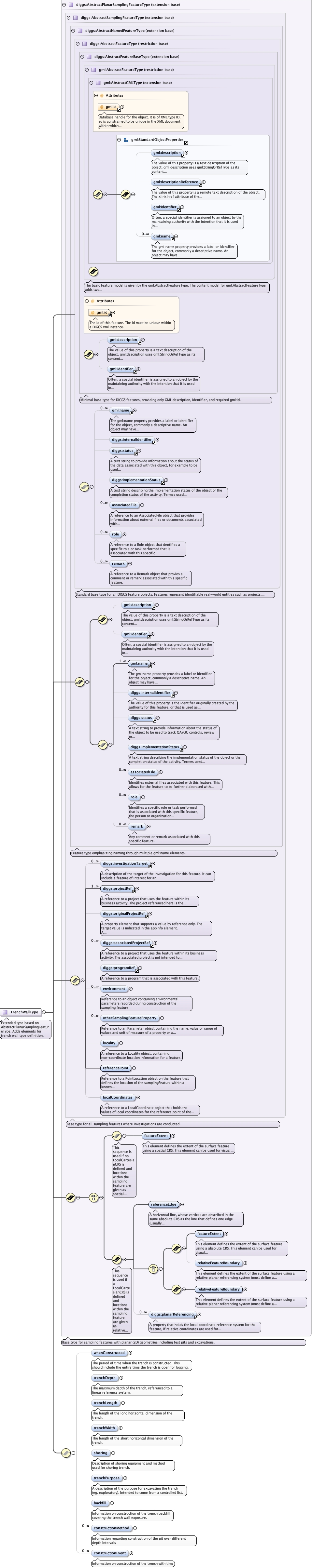

Complex Type diggs:TrenchWallType
Namespace http://diggsml.org/schemas/3
Annotations

Extended type based on AbstractPlanarSamplingFeatureType. Adds elements
for trench wall type definition.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefCommon_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefCommon_xsd_Element_diggs_programRef.tmp#programRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinatesAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureTypeExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractPlanarSamplingFeatureType.tmp#AbstractPlanarSamplingFeatureType_featureExtentExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractPlanarSamplingFeatureType.tmp#AbstractPlanarSamplingFeatureType_referenceEdgeExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractPlanarSamplingFeatureType.tmp#AbstractPlanarSamplingFeatureType_relativeFeatureBoundaryExtSamplingFeatures_xsd_Element_diggs_planarReferencing.tmp#planarReferencingExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractPlanarSamplingFeatureType.tmp#AbstractPlanarSamplingFeatureTypeExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_whenConstructedExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_trenchDepthExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_trenchLengthExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_trenchWidthExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_shoringExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_trenchPurposeExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_backfillExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_constructionMethodExtSamplingFeatures_xsd_Complex_Type_diggs_TrenchWallType.tmp#TrenchWallType_constructionEvent
Type extension of diggs:AbstractPlanarSamplingFeatureType
Type hierarchy
Used by
Model
Children diggs:associatedFile, diggs:associatedProjectRef, diggs:backfill, diggs:constructionEvent, diggs:constructionMethod, diggs:environment, diggs:featureExtent, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:localCoordinates, diggs:locality, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:planarReferencing, diggs:programRef, diggs:projectRef, diggs:referenceEdge, diggs:referencePoint, diggs:relativeFeatureBoundary, diggs:remark, diggs:role, diggs:shoring, diggs:status, diggs:trenchDepth, diggs:trenchLength, diggs:trenchPurpose, diggs:trenchWidth, diggs:whenConstructed, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="TrenchWallType">
  <annotation>
    <documentation>Extended type based on AbstractPlanarSamplingFeatureType. Adds elements for trench wall type definition.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractPlanarSamplingFeatureType">
      <sequence>
        <element maxOccurs="1" minOccurs="0" name="whenConstructed" type="diggs:TimeIntervalPropertyType">
          <annotation>
            <documentation>The period of time when the trench is constructed. This should include the entire time the trench is open for logging.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="trenchDepth" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The maximum depth of the trench, referenced to a linear reference system.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="trenchLength" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The length of the long horizontal dimension of the trench.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="trenchWidth" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The length of the short horizontal dimension of the trench.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="shoring" type="string">
          <annotation>
            <documentation>Description of shoring equipment and method used for shoring trench.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="trenchPurpose" type="gml:CodeType">
          <annotation>
            <documentation>A description of the purpose for excavating the trench (eg. exploratory). Intended to come from a controlled list.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="backfill" type="diggs:BackfillPropertyType">
          <annotation>
            <documentation>Information on construction of the trench backfill covering the trench wall exposure.</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="constructionMethod" type="diggs:TrenchConstructionMethodPropertyType">
          <annotation>
            <documentation>Information regarding construction of the pit over different depth intervals</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" name="constructionEvent" type="diggs:TrenchWallEventPropertyType">
          <annotation>
            <documentation>Information on construction of the trench with time</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
