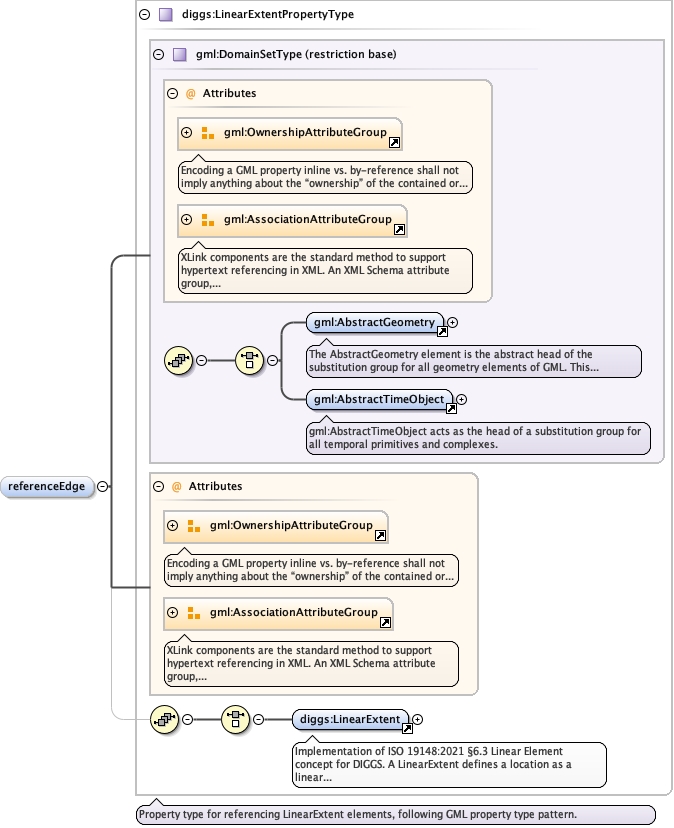

Element diggs:AbstractVolumeSamplingFeatureType / diggs:referenceEdge
Namespace http://diggsml.org/schemas/3
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupCore_xsd_Element_diggs_LinearExtent.tmp#LinearExtentCore_xsd_Complex_Type_diggs_LinearExtentPropertyType.tmp#LinearExtentPropertyType
Type diggs:LinearExtentPropertyType
Type hierarchy
Properties
content complex
minOccurs 0
Model
Children diggs:LinearExtent
Instance

<diggs:referenceEdge xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:LinearExtent axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:LinearExtent>
</diggs:referenceEdge>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element minOccurs="0" name="referenceEdge" type="diggs:LinearExtentPropertyType"/>

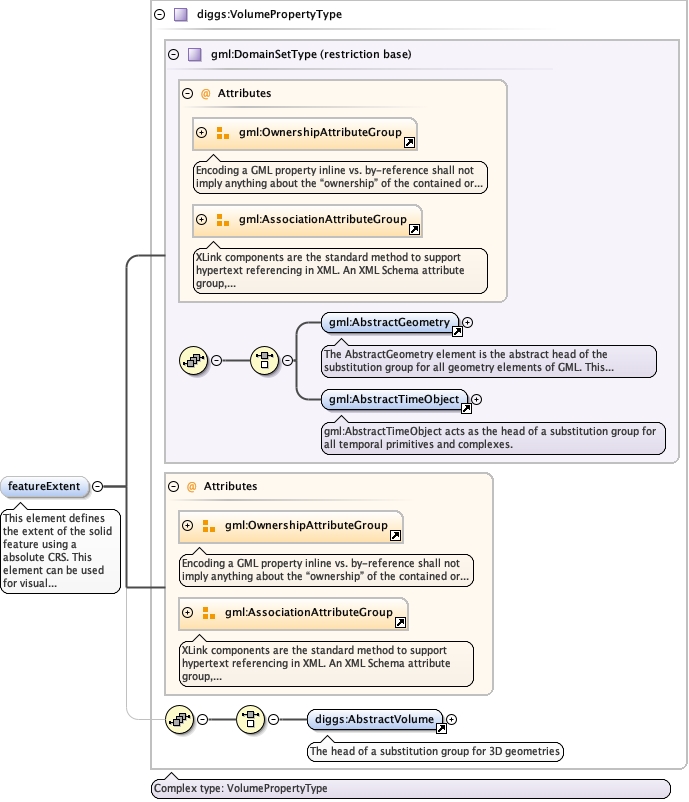

Element diggs:AbstractVolumeSamplingFeatureType / diggs:featureExtent
Namespace http://diggsml.org/schemas/3
Annotations

This element defines the extent of the solid feature
using a absolute CRS. This element can be used for visual
representations using typical/simple mapping software
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupExtSamplingFeatures_xsd_Element_diggs_AbstractVolume.tmp#AbstractVolumeExtSamplingFeatures_xsd_Complex_Type_diggs_VolumePropertyType.tmp#VolumePropertyType
Type diggs:VolumePropertyType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:AbstractVolume
Instance

<diggs:featureExtent xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractVolume axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:AbstractVolume>
</diggs:featureExtent>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element maxOccurs="1" minOccurs="0" name="featureExtent" type="diggs:VolumePropertyType">
  <annotation>
    <documentation>This element defines the extent of the solid feature using a absolute CRS. This element can be used for visual representations using typical/simple mapping software</documentation>
  </annotation>
</element>

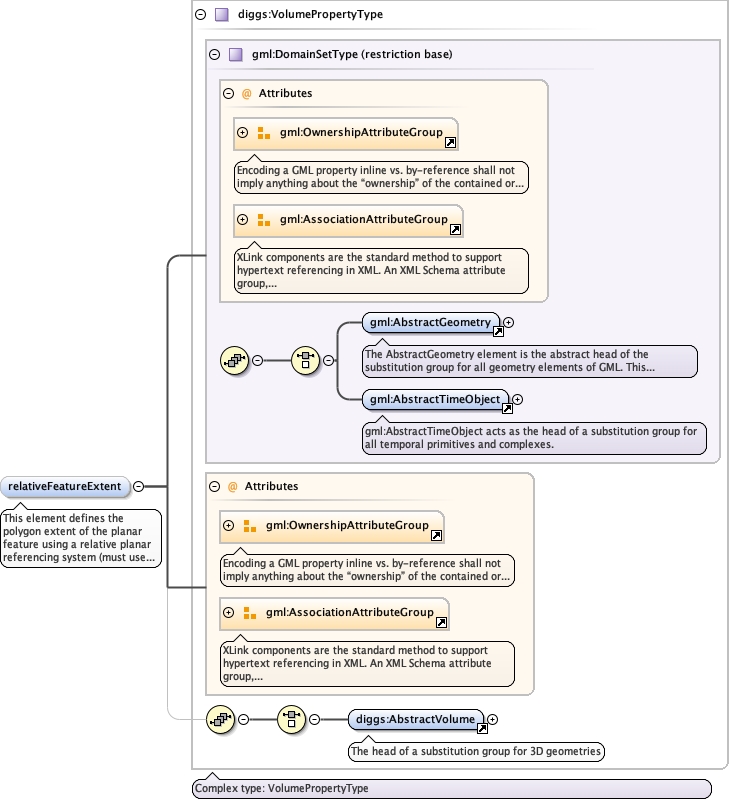

Element diggs:AbstractVolumeSamplingFeatureType / diggs:relativeFeatureExtent
Namespace http://diggsml.org/schemas/3
Annotations

This element defines the polygon extent of the planar
feature using a relative planar referencing system (must use
planarReferencing property contents). This element should be used
for software that can handle planar referencing (e.g.
VectorLinearSpatialReferenceSystem in GML 3.3)
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractGeometry.tmp#AbstractGeometrygml3_2Profile_diggs_xsd_Element_gml_AbstractTimeObject.tmp#AbstractTimeObjectgml3_2Profile_diggs_xsd_Complex_Type_gml_DomainSetType.tmp#DomainSetTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Attribute_Group_gml_AssociationAttributeGroup.tmp#AssociationAttributeGroupExtSamplingFeatures_xsd_Element_diggs_AbstractVolume.tmp#AbstractVolumeExtSamplingFeatures_xsd_Complex_Type_diggs_VolumePropertyType.tmp#VolumePropertyType
Type diggs:VolumePropertyType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:AbstractVolume
Instance

<diggs:relativeFeatureExtent xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false" xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:AbstractVolume axisLabels="" gml:id="" srsDimension="" srsName="" uomLabels="">{1,1}</diggs:AbstractVolume>
</diggs:relativeFeatureExtent>
Attributes
QName Type Fixed Default Use Annotation
nilReason gml:NilReasonType optional
owns boolean false optional
xlink:actuate restriction of string optional
The 'actuate' attribute is used to communicate the desired timing
of traversal from the starting resource to the ending resource;
it's value should be treated as follows:
onLoad - traverse to the ending resource immediately on loading
         the starting resource
onRequest - traverse from the starting resource to the ending
            resource only on a post-loading event triggered for
            this purpose
other - behavior is unconstrained; examine other markup in link
        for hints
none - behavior is unconstrained
xlink:arcrole anyURI optional
xlink:href anyURI optional
xlink:role anyURI optional
xlink:show restriction of string optional
The 'show' attribute is used to communicate the desired presentation
of the ending resource on traversal from the starting resource; it's
value should be treated as follows:
new - load ending resource in a new window, frame, pane, or other
      presentation context
replace - load the resource in the same window, frame, pane, or
          other presentation context
embed - load ending resource in place of the presentation of the
        starting resource
other - behavior is unconstrained; examine other markup in the
        link for hints
none - behavior is unconstrained
xlink:title string optional
xlink:type string simple optional
Source

<element maxOccurs="1" minOccurs="0" name="relativeFeatureExtent" type="diggs:VolumePropertyType">
  <annotation>
    <documentation>This element defines the polygon extent of the planar feature using a relative planar referencing system (must use planarReferencing property contents). This element should be used for software that can handle planar referencing (e.g. VectorLinearSpatialReferenceSystem in GML 3.3)</documentation>
  </annotation>
</element>

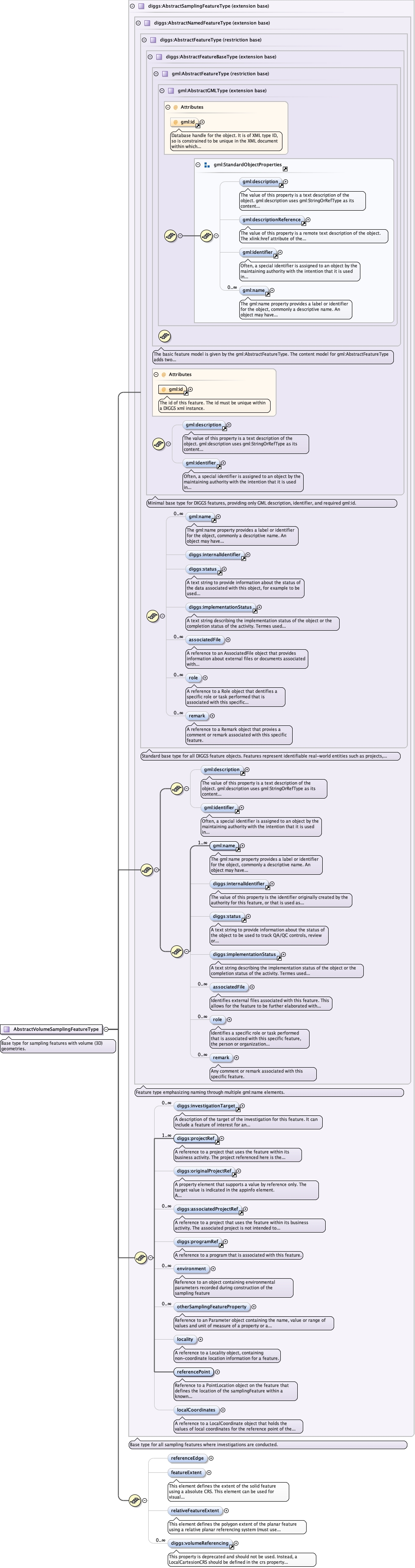

Complex Type diggs:AbstractVolumeSamplingFeatureType
Namespace http://diggsml.org/schemas/3
Annotations

Base type for sampling features with volume (3D) geometries.
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractNamedFeatureType.tmp#AbstractNamedFeatureTypeCommon_xsd_Element_diggs_investigationTarget.tmp#investigationTargetCommon_xsd_Element_diggs_projectRef.tmp#projectRefCommon_xsd_Element_diggs_originalProjectRef.tmp#originalProjectRefCommon_xsd_Element_diggs_associatedProjectRef.tmp#associatedProjectRefCommon_xsd_Element_diggs_programRef.tmp#programRefAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_environmentAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_otherSamplingFeaturePropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localityAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_referencePointAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureType_localCoordinatesAbstractTypes_xsd_Complex_Type_diggs_AbstractSamplingFeatureType.tmp#AbstractSamplingFeatureTypeExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractVolumeSamplingFeatureType.tmp#AbstractVolumeSamplingFeatureType_referenceEdgeExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractVolumeSamplingFeatureType.tmp#AbstractVolumeSamplingFeatureType_featureExtentExtSamplingFeatures_xsd_Complex_Type_diggs_AbstractVolumeSamplingFeatureType.tmp#AbstractVolumeSamplingFeatureType_relativeFeatureExtentExtSamplingFeatures_xsd_Element_diggs_volumeReferencing.tmp#volumeReferencing
Type extension of diggs:AbstractSamplingFeatureType
Type hierarchy
Properties
abstract true
Used by
Model
Children diggs:associatedFile, diggs:associatedProjectRef, diggs:environment, diggs:featureExtent, diggs:implementationStatus, diggs:internalIdentifier, diggs:investigationTarget, diggs:localCoordinates, diggs:locality, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:programRef, diggs:projectRef, diggs:referenceEdge, diggs:referencePoint, diggs:relativeFeatureExtent, diggs:remark, diggs:role, diggs:status, diggs:volumeReferencing, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType abstract="true" name="AbstractVolumeSamplingFeatureType">
  <annotation>
    <documentation>Base type for sampling features with volume (3D) geometries.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractSamplingFeatureType">
      <sequence>
        <element minOccurs="0" name="referenceEdge" type="diggs:LinearExtentPropertyType"/>
        <element maxOccurs="1" minOccurs="0" name="featureExtent" type="diggs:VolumePropertyType">
          <annotation>
            <documentation>This element defines the extent of the solid feature using a absolute CRS. This element can be used for visual representations using typical/simple mapping software</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="relativeFeatureExtent" type="diggs:VolumePropertyType">
          <annotation>
            <documentation>This element defines the polygon extent of the planar feature using a relative planar referencing system (must use planarReferencing property contents). This element should be used for software that can handle planar referencing (e.g. VectorLinearSpatialReferenceSystem in GML 3.3)</documentation>
          </annotation>
        </element>
        <element maxOccurs="unbounded" minOccurs="0" ref="diggs:volumeReferencing"/>
      </sequence>
    </extension>
  </complexContent>
</complexType>
