Complex Type diggs:LocalityPropertyType
Namespace http://diggsml.org/schemas/3
Annotations

Property type for containing either a Locatlity or PointLocation object. PointLocation is specifically used for sample storage locations where coordinates are known, othewise use the Locality object (for Projects, Sampling Features, and Sample storage non-coordinate locations.

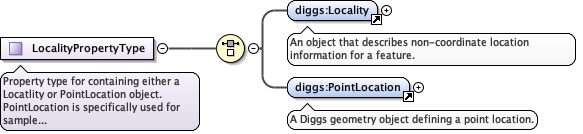

Diagram
DiagramCommon_xsd_Element_diggs_Locality.tmp#LocalityCore_xsd_Element_diggs_PointLocation.tmp#PointLocation
Used by
Model
Children diggs:Locality, diggs:PointLocation
Source

<complexType name="LocalityPropertyType">
  <annotation>
    <documentation>Property type for containing either a Locatlity or PointLocation object. PointLocation is specifically used for sample storage locations where coordinates are known, othewise use the Locality object (for Projects, Sampling Features, and Sample storage non-coordinate locations.</documentation>
  </annotation>
  <choice>
    <element ref="diggs:Locality" minOccurs="1" maxOccurs="1"/>
    <element ref="diggs:PointLocation"/>
  </choice>
</complexType>
