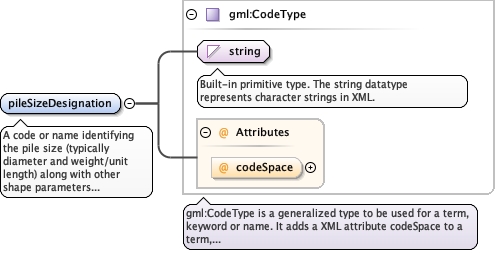

Element diggs:SteelPipePileType / diggs:pileSizeDesignation
Namespace http://diggsml.org/schemas/3
Annotations

A code or name identifying the pile size (typically
diameter and weight/unit length) along with other shape parameters
as applicable. Intended to come from a controlled list of terms,
Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x
    64</pileSizeDesignation>
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="pileSizeDesignation" type="gml:CodeType">
  <annotation>
    <documentation>A code or name identifying the pile size (typically diameter and weight/unit length) along with other shape parameters as applicable. Intended to come from a controlled list of terms, Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x 64</pileSizeDesignation></documentation>
  </annotation>
</element>

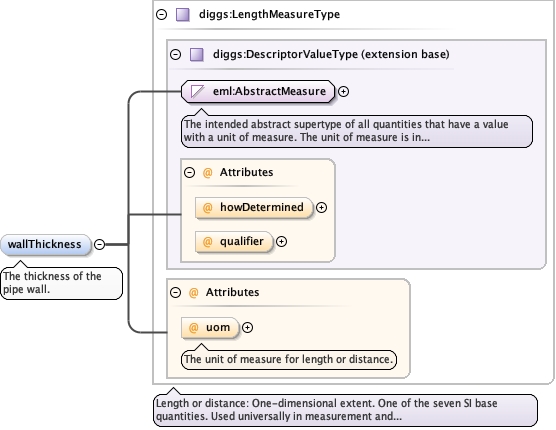

Element diggs:SteelPipePileType / diggs:wallThickness
Namespace http://diggsml.org/schemas/3
Annotations

The thickness of the pipe wall.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="wallThickness" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>The thickness of the pipe wall.</documentation>
  </annotation>
</element>
Element diggs:SteelPipePileType / diggs:openEnded
Namespace http://diggsml.org/schemas/3
Annotations

True indicates that the pipe is open ended, false
indicates that it is closed ended.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 1
Source

<element minOccurs="1" name="openEnded" type="boolean">
  <annotation>
    <documentation>True indicates that the pipe is open ended, false indicates that it is closed ended.</documentation>
  </annotation>
</element>

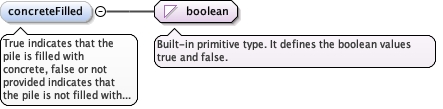

Element diggs:SteelPipePileType / diggs:concreteFilled
Namespace http://diggsml.org/schemas/3
Annotations

True indicates that the pile is filled with concrete,
false or not provided indicates that the pile is not filled with
concrete.
Diagram
Diagram
Type boolean
Properties
content simple
minOccurs 0
Source

<element minOccurs="0" name="concreteFilled" type="boolean">
  <annotation>
    <documentation>True indicates that the pile is filled with concrete, false or not provided indicates that the pile is not filled with concrete.</documentation>
  </annotation>
</element>

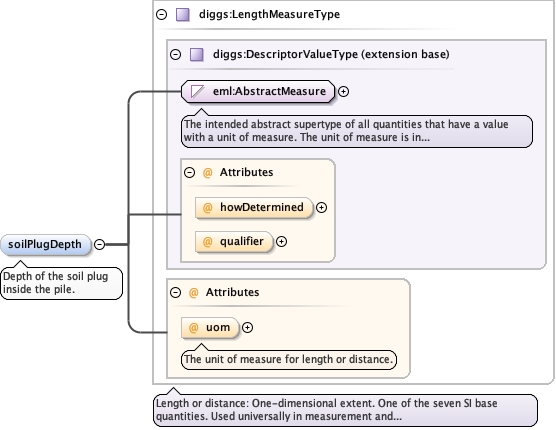

Element diggs:SteelPipePileType / diggs:soilPlugDepth
Namespace http://diggsml.org/schemas/3
Annotations

Depth of the soil plug inside the pile.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="soilPlugDepth" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Depth of the soil plug inside the pile.</documentation>
  </annotation>
</element>

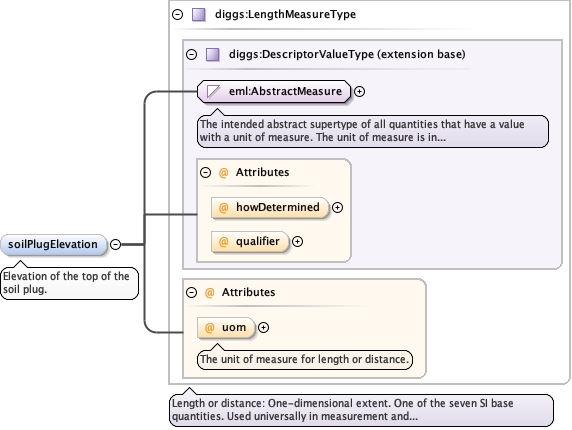

Element diggs:SteelPipePileType / diggs:soilPlugElevation
Namespace http://diggsml.org/schemas/3
Annotations

Elevation of the top of the soil plug.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="soilPlugElevation" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Elevation of the top of the soil plug.</documentation>
  </annotation>
</element>

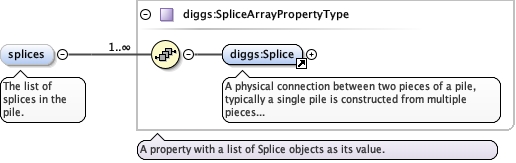

Element diggs:SteelPipePileType / diggs:splices
Namespace http://diggsml.org/schemas/3
Annotations

The list of splices in the pile.
Diagram
DiagramDeepFoundation_xsd_Element_diggs_Splice.tmp#SpliceDeepFoundation_xsd_Complex_Type_diggs_SpliceArrayPropertyType.tmp#SpliceArrayPropertyType
Type diggs:SpliceArrayPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:Splice
Instance

<diggs:splices xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Splice gml:id="">{1,1}</diggs:Splice>
</diggs:splices>
Source

<element maxOccurs="1" minOccurs="0" name="splices" type="diggs:SpliceArrayPropertyType">
  <annotation>
    <documentation>The list of splices in the pile.</documentation>
  </annotation>
</element>
Complex Type diggs:SteelPipePileType
Namespace http://diggsml.org/schemas/3
Annotations

A pile made from a steel pipe.
Diagram
Diagram
Type extension of diggs:AbstractPileType
Type hierarchy
Used by
Model
Children diggs:allowableDrivingStress, diggs:associatedFile, diggs:associatedProjectRef, diggs:bearing, diggs:centerLine, diggs:concreteFilled, diggs:cutoffElevation, diggs:environment, diggs:finalTipElevation, diggs:groundSurfaceElevation, diggs:implementationStatus, diggs:installationConstructionEvent, diggs:installationEquipment, diggs:internalIdentifier, diggs:investigationTarget, diggs:jettingElevation, diggs:lengthAboveGroundSurface, diggs:lengthBelowGroundSurface, diggs:lengthNonFriction, diggs:linearReferencing, diggs:localCoordinates, diggs:locality, diggs:nominalCapacity, diggs:openEnded, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:pileSizeDesignation, diggs:plunge, diggs:productionPile, diggs:programRef, diggs:projectRef, diggs:referenceElevation, diggs:referencePoint, diggs:remark, diggs:role, diggs:samplingFeatureRef, diggs:soilPlugDepth, diggs:soilPlugElevation, diggs:splices, diggs:status, diggs:taperInterval, diggs:testPile, diggs:tipDeviationEast, diggs:tipDeviationNorth, diggs:tipType, diggs:totalPileLength, diggs:wallThickness, diggs:weightPerLength, diggs:whenInstalled, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="SteelPipePileType">
  <annotation>
    <documentation>A pile made from a steel pipe.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractPileType">
      <sequence>
        <element name="pileSizeDesignation" type="gml:CodeType">
          <annotation>
            <documentation>A code or name identifying the pile size (typically diameter and weight/unit length) along with other shape parameters as applicable. Intended to come from a controlled list of terms, Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x 64</pileSizeDesignation></documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="wallThickness" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>The thickness of the pipe wall.</documentation>
          </annotation>
        </element>
        <element minOccurs="1" name="openEnded" type="boolean">
          <annotation>
            <documentation>True indicates that the pipe is open ended, false indicates that it is closed ended.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="concreteFilled" type="boolean">
          <annotation>
            <documentation>True indicates that the pile is filled with concrete, false or not provided indicates that the pile is not filled with concrete.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="soilPlugDepth" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Depth of the soil plug inside the pile.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="soilPlugElevation" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Elevation of the top of the soil plug.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="splices" type="diggs:SpliceArrayPropertyType">
          <annotation>
            <documentation>The list of splices in the pile.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
