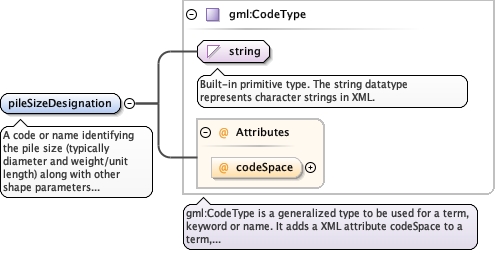

Element diggs:SteelHPileType / diggs:pileSizeDesignation
Namespace http://diggsml.org/schemas/3
Annotations

A code or name identifying the pile size (typically
diameter and weight/unit length) along with other shape parameters
as applicable. Intended to come from a controlled list of terms,
Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x
    64</pileSizeDesignation>
Diagram
Diagramgml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType_codeSpacegml3_2Profile_diggs_xsd_Complex_Type_gml_CodeType.tmp#CodeType
Type gml:CodeType
Properties
content complex
Attributes
QName Type Use
codeSpace anyURI optional
Source

<element name="pileSizeDesignation" type="gml:CodeType">
  <annotation>
    <documentation>A code or name identifying the pile size (typically diameter and weight/unit length) along with other shape parameters as applicable. Intended to come from a controlled list of terms, Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x 64</pileSizeDesignation></documentation>
  </annotation>
</element>
Element diggs:SteelHPileType / diggs:flangeLength
Namespace http://diggsml.org/schemas/3
Annotations

Length of the flange.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="flangeLength" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Length of the flange.</documentation>
  </annotation>
</element>

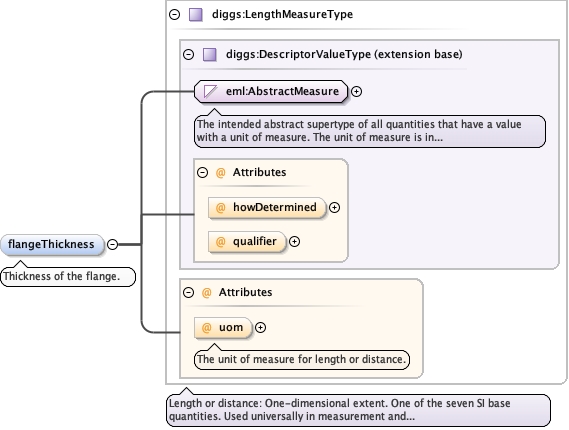

Element diggs:SteelHPileType / diggs:flangeThickness
Namespace http://diggsml.org/schemas/3
Annotations

Thickness of the flange.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="flangeThickness" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Thickness of the flange.</documentation>
  </annotation>
</element>

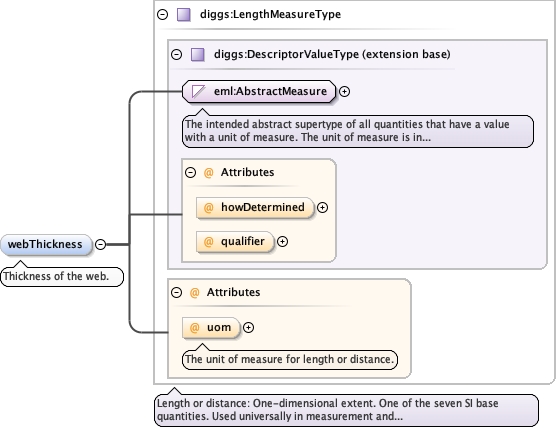

Element diggs:SteelHPileType / diggs:webThickness
Namespace http://diggsml.org/schemas/3
Annotations

Thickness of the web.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_LengthMeasureType.tmp#LengthMeasureType
Type diggs:LengthMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:LengthUomEnumType optional
The unit of measure for length or distance.
Source

<element minOccurs="0" name="webThickness" type="diggs:LengthMeasureType">
  <annotation>
    <documentation>Thickness of the web.</documentation>
  </annotation>
</element>

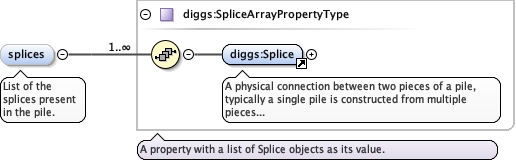

Element diggs:SteelHPileType / diggs:splices
Namespace http://diggsml.org/schemas/3
Annotations

List of the splices present in the pile.
Diagram
DiagramDeepFoundation_xsd_Element_diggs_Splice.tmp#SpliceDeepFoundation_xsd_Complex_Type_diggs_SpliceArrayPropertyType.tmp#SpliceArrayPropertyType
Type diggs:SpliceArrayPropertyType
Properties
content complex
minOccurs 0
maxOccurs 1
Model
Children diggs:Splice
Instance

<diggs:splices xmlns:diggs="http://diggsml.org/schemas/3">
  <diggs:Splice gml:id="">{1,1}</diggs:Splice>
</diggs:splices>
Source

<element maxOccurs="1" minOccurs="0" name="splices" type="diggs:SpliceArrayPropertyType">
  <annotation>
    <documentation>List of the splices present in the pile.</documentation>
  </annotation>
</element>
Complex Type diggs:SteelHPileType
Namespace http://diggsml.org/schemas/3
Annotations

A pile made of steel with an H shaped cross section.
Diagram
Diagram
Type extension of diggs:AbstractPileType
Type hierarchy
Used by
Model
Children diggs:allowableDrivingStress, diggs:associatedFile, diggs:associatedProjectRef, diggs:bearing, diggs:centerLine, diggs:cutoffElevation, diggs:environment, diggs:finalTipElevation, diggs:flangeLength, diggs:flangeThickness, diggs:groundSurfaceElevation, diggs:implementationStatus, diggs:installationConstructionEvent, diggs:installationEquipment, diggs:internalIdentifier, diggs:investigationTarget, diggs:jettingElevation, diggs:lengthAboveGroundSurface, diggs:lengthBelowGroundSurface, diggs:lengthNonFriction, diggs:linearReferencing, diggs:localCoordinates, diggs:locality, diggs:nominalCapacity, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:pileSizeDesignation, diggs:plunge, diggs:productionPile, diggs:programRef, diggs:projectRef, diggs:referenceElevation, diggs:referencePoint, diggs:remark, diggs:role, diggs:samplingFeatureRef, diggs:splices, diggs:status, diggs:taperInterval, diggs:testPile, diggs:tipDeviationEast, diggs:tipDeviationNorth, diggs:tipType, diggs:totalPileLength, diggs:webThickness, diggs:weightPerLength, diggs:weldType, diggs:whenInstalled, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="SteelHPileType">
  <annotation>
    <documentation>A pile made of steel with an H shaped cross section.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractPileType">
      <sequence>
        <element name="pileSizeDesignation" type="gml:CodeType">
          <annotation>
            <documentation>A code or name identifying the pile size (typically diameter and weight/unit length) along with other shape parameters as applicable. Intended to come from a controlled list of terms, Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x 64</pileSizeDesignation></documentation>
          </annotation>
        </element>
        <element minOccurs="0" ref="diggs:weldType">
          <annotation>
            <documentation>The type of weld used on the pile, from an enumerated list (circular, spiral)</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="flangeLength" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Length of the flange.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="flangeThickness" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Thickness of the flange.</documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="webThickness" type="diggs:LengthMeasureType">
          <annotation>
            <documentation>Thickness of the web.</documentation>
          </annotation>
        </element>
        <element maxOccurs="1" minOccurs="0" name="splices" type="diggs:SpliceArrayPropertyType">
          <annotation>
            <documentation>List of the splices present in the pile.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
