Schema documentation for component diggs:pileSizeDesignation

Showing:

Annotations

Attributes

Diagrams

Model

Properties

Source

Used by

Element diggs:TimberPileType / diggs:pileSizeDesignation

Namespace

http://diggsml.org/schemas/3

Annotations

A code or name identifying the pile size (typically
diameter and weight/unit length) along with other shape parameters
as applicable. Intended to come from a controlled list of terms,
Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x
    64</pileSizeDesignation>

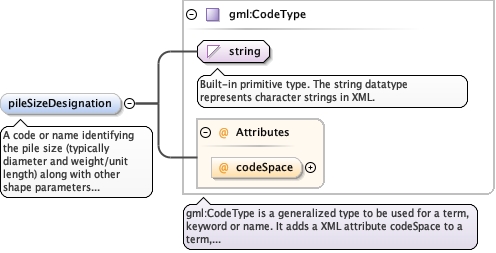

Diagram

Type

gml:CodeType

Properties

content	complex
minOccurs	0

Attributes

QName	Type	Use
codeSpace	anyURI	optional

Source

<element name="pileSizeDesignation" type="gml:CodeType" minOccurs="0">
  <annotation>
    <documentation>A code or name identifying the pile size (typically diameter and weight/unit length) along with other shape parameters as applicable. Intended to come from a controlled list of terms, Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x 64</pileSizeDesignation></documentation>
  </annotation>
</element>

Element diggs:TimberPileType / diggs:timberType

Namespace

http://diggsml.org/schemas/3

Annotations

The type of timber used to construct the
pile.

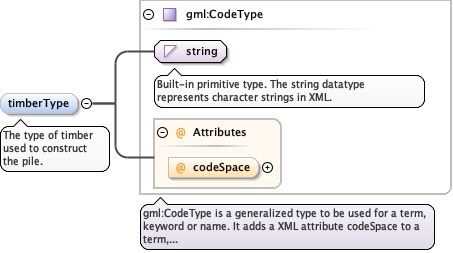

Diagram

Type

gml:CodeType

Properties

content	complex
minOccurs	0

Attributes

QName	Type	Use
codeSpace	anyURI	optional

Source

<element minOccurs="0" name="timberType" type="gml:CodeType">
  <annotation>
    <documentation>The type of timber used to construct the pile.</documentation>
  </annotation>
</element>

Complex Type diggs:TimberPileType

Namespace

http://diggsml.org/schemas/3

Annotations

A pile made from timber.

Diagram

Type

extension of diggs:AbstractPileType

Type hierarchy

gml:AbstractGMLType
- gml:AbstractFeatureType
  - diggs:AbstractFeatureBaseType
    - diggs:AbstractFeatureType
      - diggs:AbstractNamedFeatureType

        diggs:AbstractSamplingFeatureType

        diggs:AbstractLinearSamplingFeatureType

        diggs:AbstractLinearInstallationType

        diggs:AbstractPileType

        diggs:TimberPileType

Used by

Element

diggs:TimberPile

Model

gml:description{0,1} , gml:identifier{0,1} , gml:name+ , diggs:internalIdentifier{0,1} , diggs:status{0,1} , diggs:implementationStatus{0,1} , diggs:associatedFile* , diggs:role* , diggs:remark* , diggs:investigationTarget* , diggs:projectRef+ , diggs:originalProjectRef{0,1} , diggs:associatedProjectRef* , diggs:programRef{0,1} , diggs:environment* , diggs:otherSamplingFeatureProperty* , diggs:locality{0,1} , diggs:referencePoint , diggs:localCoordinates{0,1} , diggs:centerLine+ , diggs:linearReferencing* , diggs:plunge{0,1} , diggs:bearing{0,1} , diggs:samplingFeatureRef , diggs:installationConstructionEvent* , diggs:installationEquipment* , diggs:whenInstalled{0,1} , diggs:referenceElevation{0,1} , diggs:groundSurfaceElevation , diggs:cutoffElevation , diggs:jettingElevation{0,1} , diggs:totalPileLength{0,1} , diggs:weightPerLength{0,1} , diggs:tipDeviationNorth{0,1} , diggs:tipDeviationEast{0,1} , diggs:lengthAboveGroundSurface{0,1} , diggs:lengthBelowGroundSurface{0,1} , diggs:lengthNonFriction{0,1} , diggs:finalTipElevation{0,1} , diggs:taperInterval+ , diggs:productionPile{0,1} , diggs:testPile{0,1} , diggs:tipType{0,1} , diggs:nominalCapacity{0,1} , diggs:allowableDrivingStress{0,1} , diggs:pileSizeDesignation{0,1} , diggs:timberType{0,1}

Children

diggs:allowableDrivingStress, diggs:associatedFile, diggs:associatedProjectRef, diggs:bearing, diggs:centerLine, diggs:cutoffElevation, diggs:environment, diggs:finalTipElevation, diggs:groundSurfaceElevation, diggs:implementationStatus, diggs:installationConstructionEvent, diggs:installationEquipment, diggs:internalIdentifier, diggs:investigationTarget, diggs:jettingElevation, diggs:lengthAboveGroundSurface, diggs:lengthBelowGroundSurface, diggs:lengthNonFriction, diggs:linearReferencing, diggs:localCoordinates, diggs:locality, diggs:nominalCapacity, diggs:originalProjectRef, diggs:otherSamplingFeatureProperty, diggs:pileSizeDesignation, diggs:plunge, diggs:productionPile, diggs:programRef, diggs:projectRef, diggs:referenceElevation, diggs:referencePoint, diggs:remark, diggs:role, diggs:samplingFeatureRef, diggs:status, diggs:taperInterval, diggs:testPile, diggs:timberType, diggs:tipDeviationEast, diggs:tipDeviationNorth, diggs:tipType, diggs:totalPileLength, diggs:weightPerLength, diggs:whenInstalled, gml:description, gml:identifier, gml:name

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<complexType name="TimberPileType">
  <annotation>
    <documentation>A pile made from timber.</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractPileType">
      <sequence>
        <element name="pileSizeDesignation" type="gml:CodeType" minOccurs="0">
          <annotation>
            <documentation>A code or name identifying the pile size (typically diameter and weight/unit length) along with other shape parameters as applicable. Intended to come from a controlled list of terms, Example: <pileSizeDesignation codeSpace="ASTM A6 H-Piling">HP 200 x 64</pileSizeDesignation></documentation>
          </annotation>
        </element>
        <element minOccurs="0" name="timberType" type="gml:CodeType">
          <annotation>
            <documentation>The type of timber used to construct the pile.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
