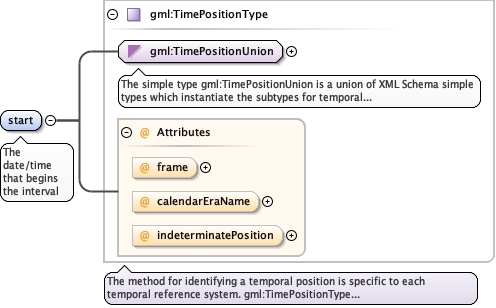

Element diggs:TimeIntervalType / diggs:start
Namespace http://diggsml.org/schemas/3
Annotations

The date/time that begins the interval
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 1
maxOccurs 1
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="start" type="gml:TimePositionType" maxOccurs="1" minOccurs="1">
  <annotation>
    <documentation>The date/time that begins the interval</documentation>
  </annotation>
</element>
Element diggs:TimeIntervalType / diggs:end
Namespace http://diggsml.org/schemas/3
Annotations

The date/time that ends the interval.
Diagram
Diagramgml3_2Profile_diggs_xsd_Simple_Type_gml_TimePositionUnion.tmp#TimePositionUniongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_framegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_calendarEraNamegml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType_indeterminatePositiongml3_2Profile_diggs_xsd_Complex_Type_gml_TimePositionType.tmp#TimePositionType
Type gml:TimePositionType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Default Use
calendarEraName string optional
frame anyURI #ISO-8601 optional
indeterminatePosition gml:TimeIndeterminateValueType optional
Source

<element name="end" type="gml:TimePositionType" maxOccurs="1" minOccurs="0">
  <annotation>
    <documentation>The date/time that ends the interval.</documentation>
  </annotation>
</element>

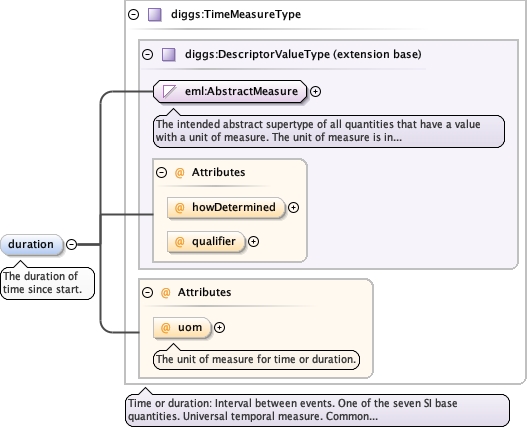

Element diggs:TimeIntervalType / diggs:duration
Namespace http://diggsml.org/schemas/3
Annotations

The duration of time since start.
Diagram
DiagramEmlAllObjects_xsd_Simple_Type_eml_AbstractMeasure.tmp#AbstractMeasureMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_howDeterminedMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueType_qualifierMeasureTypes_xsd_Complex_Type_diggs_DescriptorValueType.tmp#DescriptorValueTypeMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType_uomMeasureTypes_xsd_Complex_Type_diggs_TimeMeasureType.tmp#TimeMeasureType
Type diggs:TimeMeasureType
Type hierarchy
Properties
content complex
minOccurs 0
maxOccurs 1
Attributes
QName Type Use Annotation
howDetermined diggs:DescriptorMethodEnumType optional
qualifier diggs:QualifierEnumExtType optional
uom diggs:TimeUomEnumType optional
The unit of measure for time or duration.
Source

<element name="duration" type="diggs:TimeMeasureType" maxOccurs="1" minOccurs="0">
  <annotation>
    <documentation>The duration of time since start.</documentation>
  </annotation>
</element>

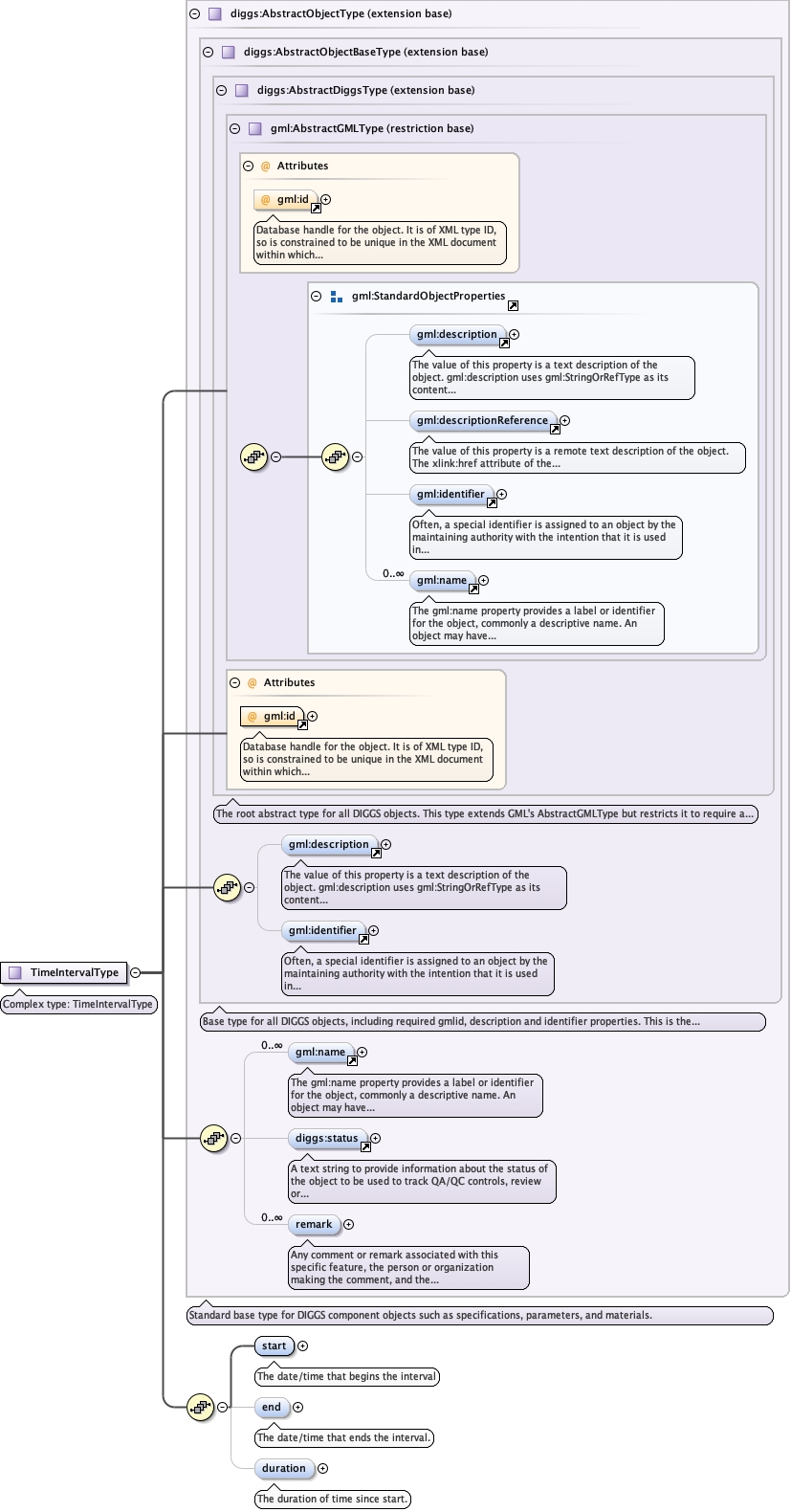

Complex Type diggs:TimeIntervalType
Namespace http://diggsml.org/schemas/3
Annotations

Complex type: TimeIntervalType
Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCommon_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_startCommon_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_endCommon_xsd_Complex_Type_diggs_TimeIntervalType.tmp#TimeIntervalType_duration
Type extension of diggs:AbstractObjectType
Type hierarchy
Used by
Model
Children diggs:duration, diggs:end, diggs:remark, diggs:start, diggs:status, gml:description, gml:identifier, gml:name
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<complexType name="TimeIntervalType">
  <annotation>
    <documentation>Complex type: TimeIntervalType</documentation>
  </annotation>
  <complexContent>
    <extension base="diggs:AbstractObjectType">
      <sequence>
        <element name="start" type="gml:TimePositionType" maxOccurs="1" minOccurs="1">
          <annotation>
            <documentation>The date/time that begins the interval</documentation>
          </annotation>
        </element>
        <element name="end" type="gml:TimePositionType" maxOccurs="1" minOccurs="0">
          <annotation>
            <documentation>The date/time that ends the interval.</documentation>
          </annotation>
        </element>
        <element name="duration" type="diggs:TimeMeasureType" maxOccurs="1" minOccurs="0">
          <annotation>
            <documentation>The duration of time since start.</documentation>
          </annotation>
        </element>
      </sequence>
    </extension>
  </complexContent>
</complexType>
